Product Specifications

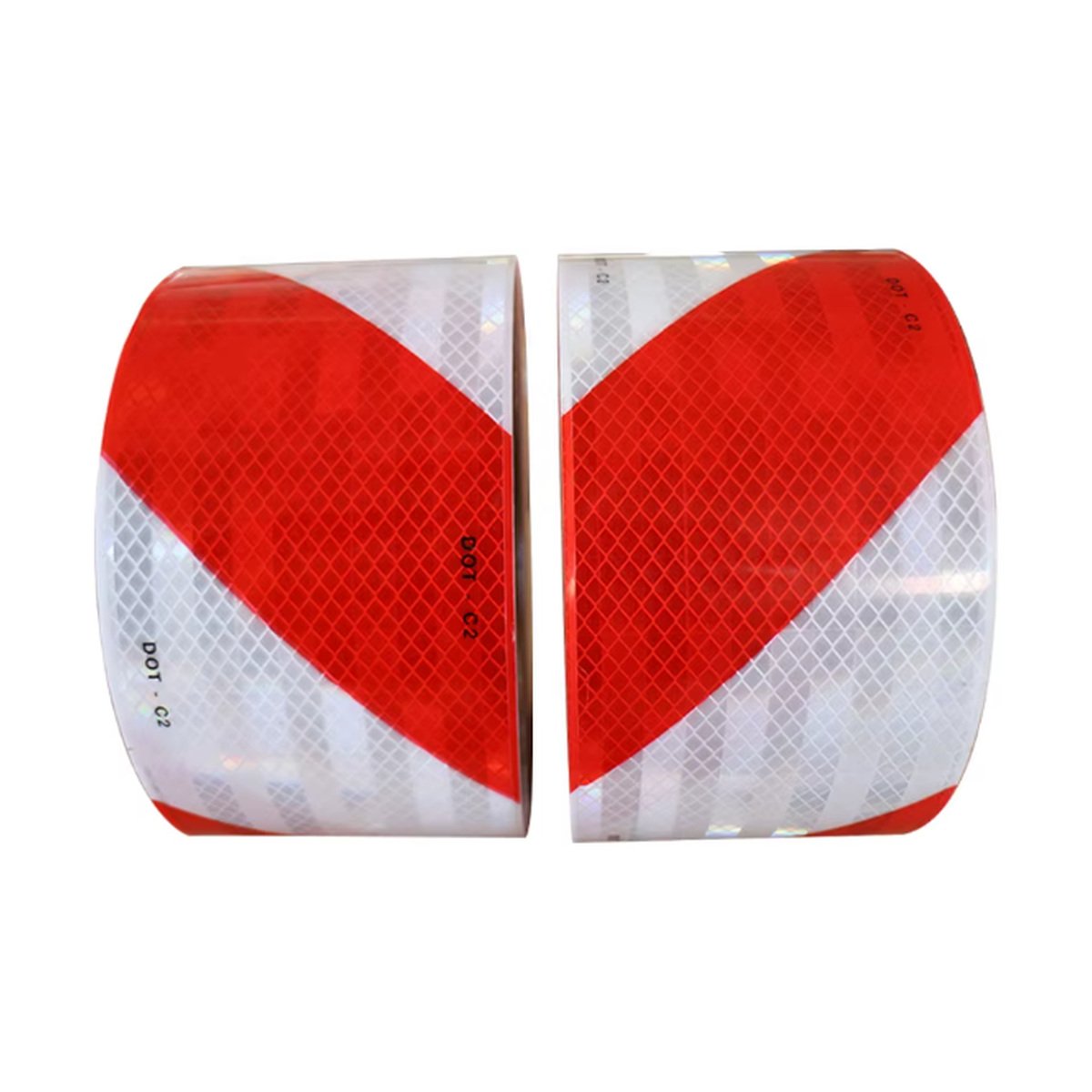

Wide red and white reflective conspicuity tape supplied for truck, trailer and vehicle-body marking.
| Product Code | XY156 |
|---|---|
| Product Type | Red and white reflective conspicuity tape |
| Pattern | Diagonal red and white pattern |
| Product Designation | DOT-C2 designation stated in the source product data |
| Application | Cars, trucks, trailers and vehicle-body safety marking |
| Material | PET / PC / PMMA |
| Color | Red / White |
| Standard Size | 10 cm × 45 m |
| Custom Size | Available on request |
| Adhesive | Pressure-sensitive adhesive |
| Properties | Water-resistant and weather-resistant |
| Stated Service Life | 3–5 years |
DOT-C2 is used here as the product designation stated in the source data. No certificate file or measured photometric data was provided with the spreadsheet, and this page does not independently guarantee regulatory approval or a specific reflectivity value. Confirm destination-market requirements, supporting documents, substrate and installation conditions before ordering.

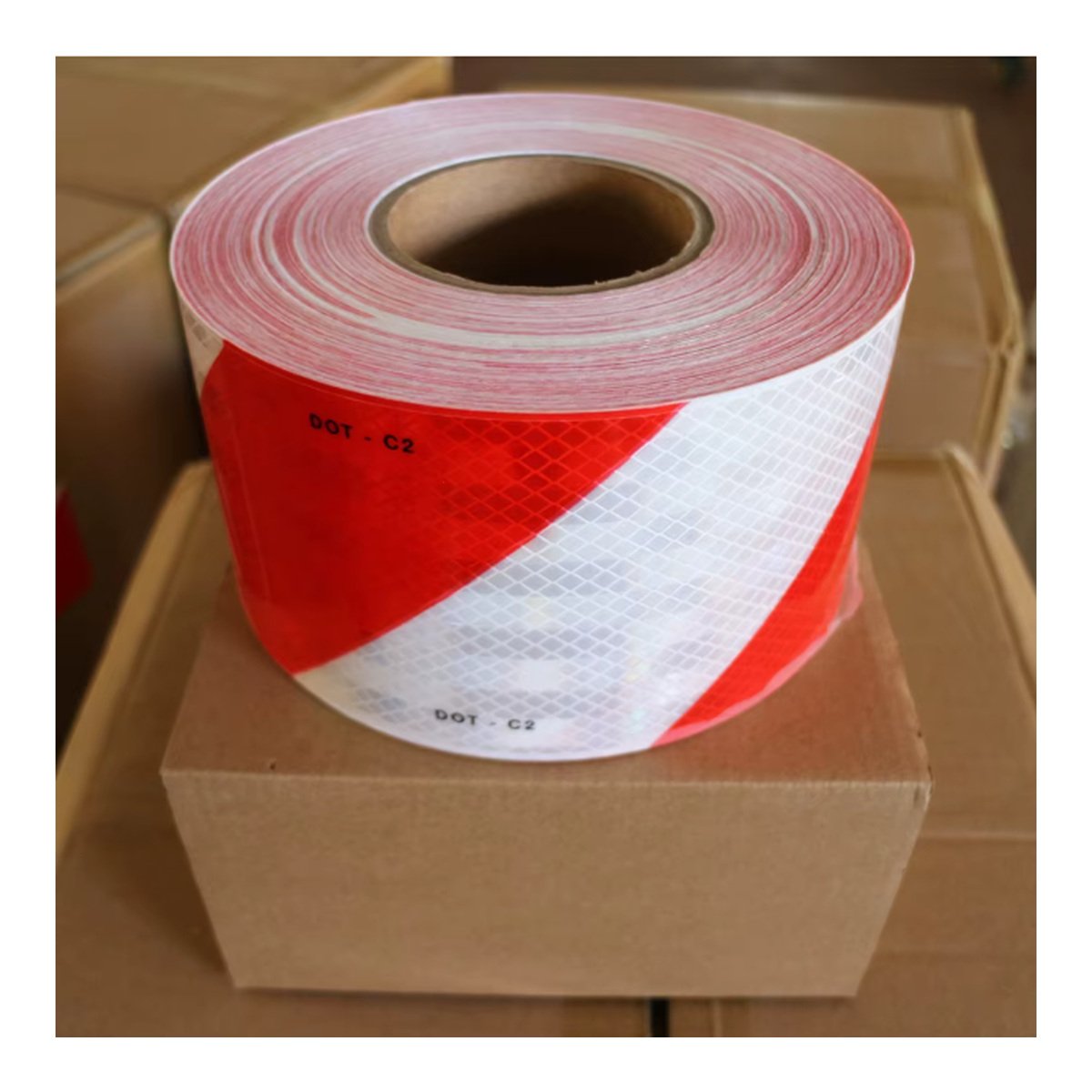

Pattern & Roll Size
Choose the standard roll or send the dimensions required for your project.
10 cm
45 m
Custom-size enquiry

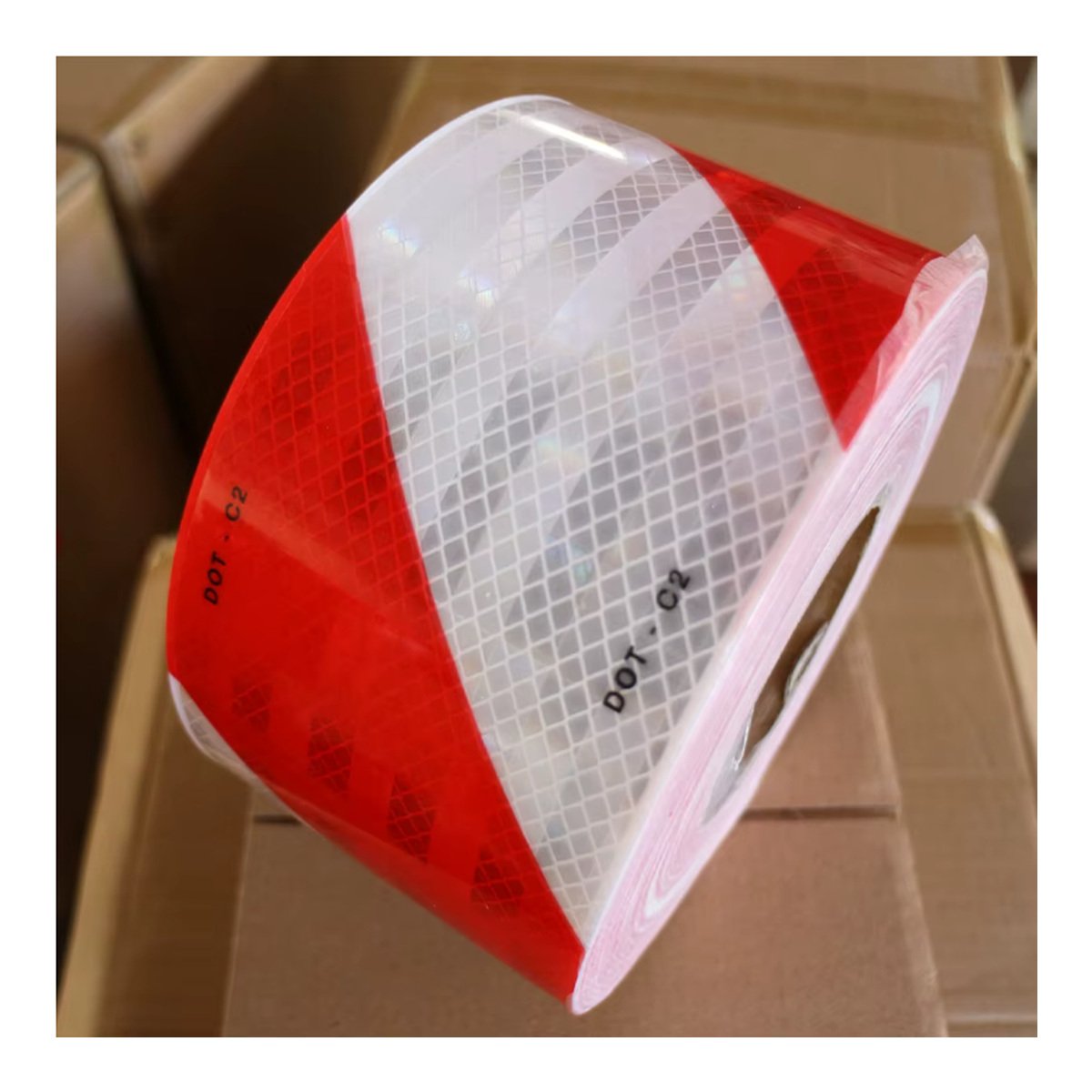

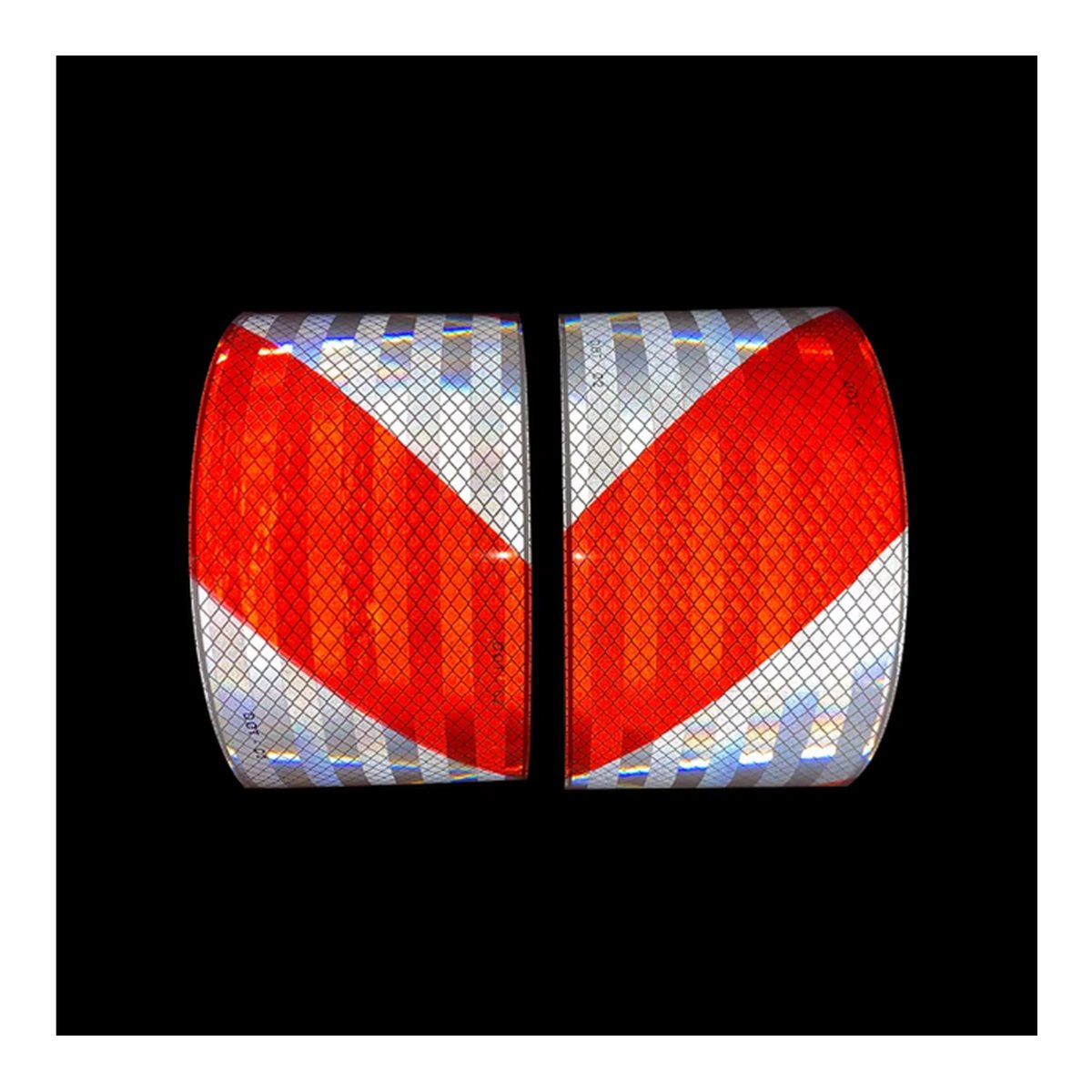

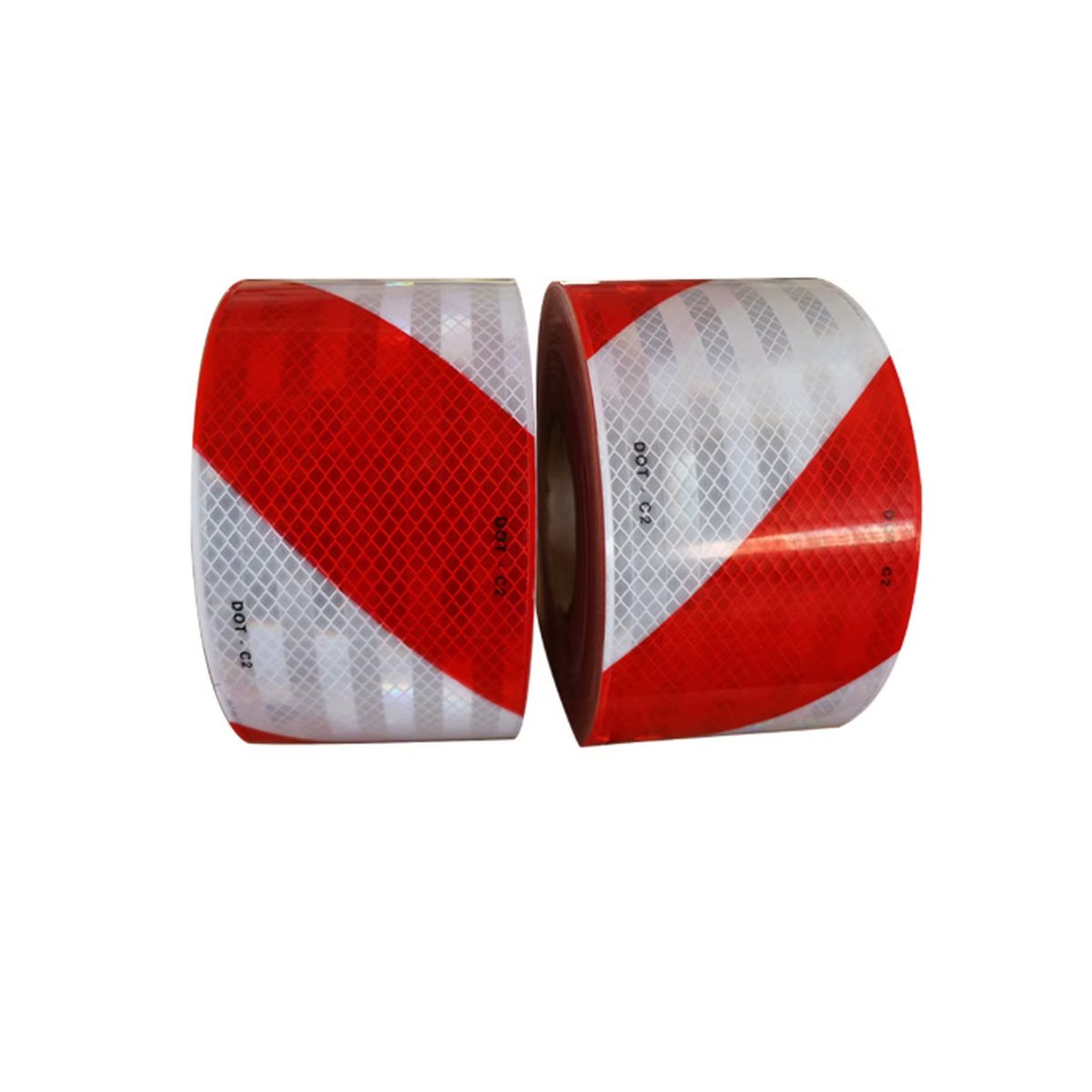

Pattern and Direct-Light Views
Compare the red and white pattern in a normal product view and under strong direct illumination.
The photographs are visual product references and are not measured photometric test results.

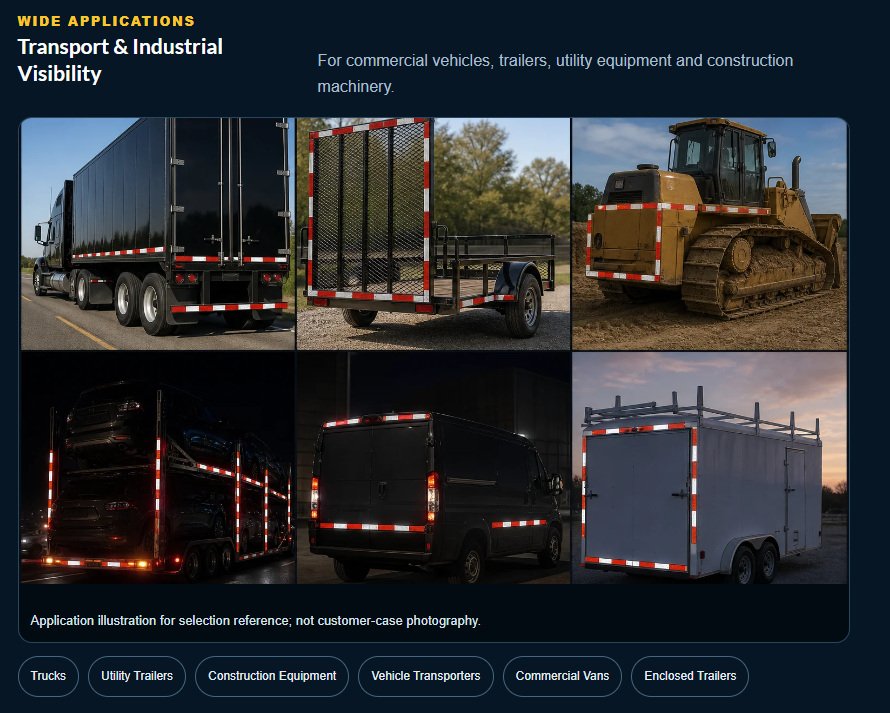

Reflective Visibility for Commercial Vehicles
For suitable, clean and properly prepared truck, trailer and vehicle surfaces.
Common Vehicle Uses
- Commercial trucks and fleet vehicles
- Trailer side and rear body marking
- Vehicle conspicuity and safety marking
- Construction and other compatible mobile equipment
Clean and dry the application surface before installation. Confirm substrate compatibility, installation procedures and local marking requirements for the intended use.
Request Specifications & Quote
Send the required width, roll length, quantity, vehicle type, installation position and destination country.
