Product Specifications
Paired red-and-yellow reflective rear marker plates for heavy-vehicle and trailer marking applications.
| Illustrated plate size | 800 × 100 mm each |
|---|---|
| Pattern | Opposing red and yellow diagonal stripes |
| Format | Pair of rear marker plates |
| Mounting | Pre-drilled holes shown |
| Specification | Confirm mounting and destination-market requirements |

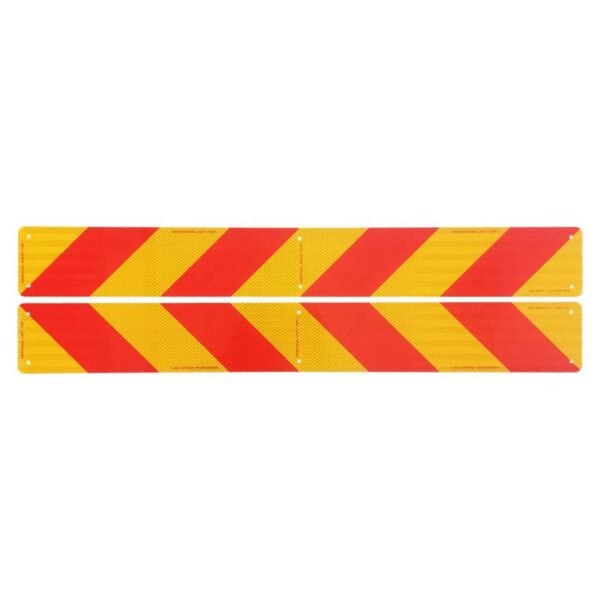

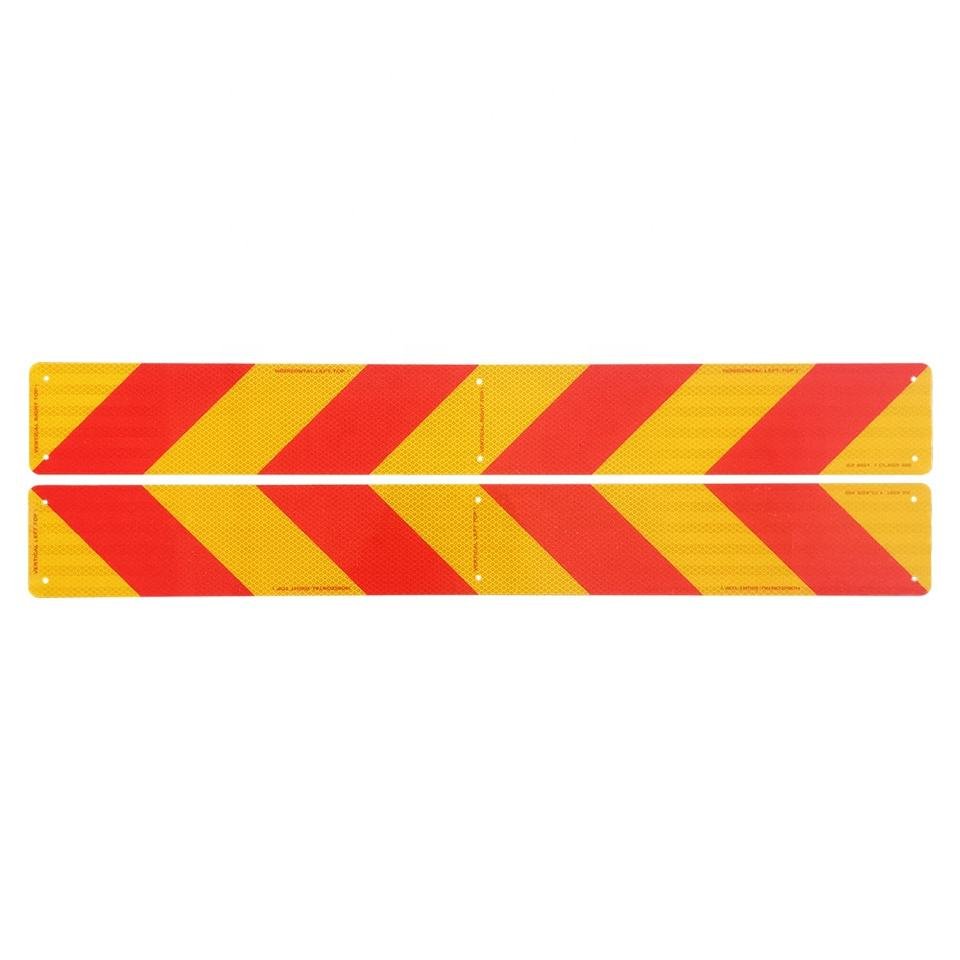

Paired Rear Markers
The opposing stripe directions provide a coordinated rear marking layout.

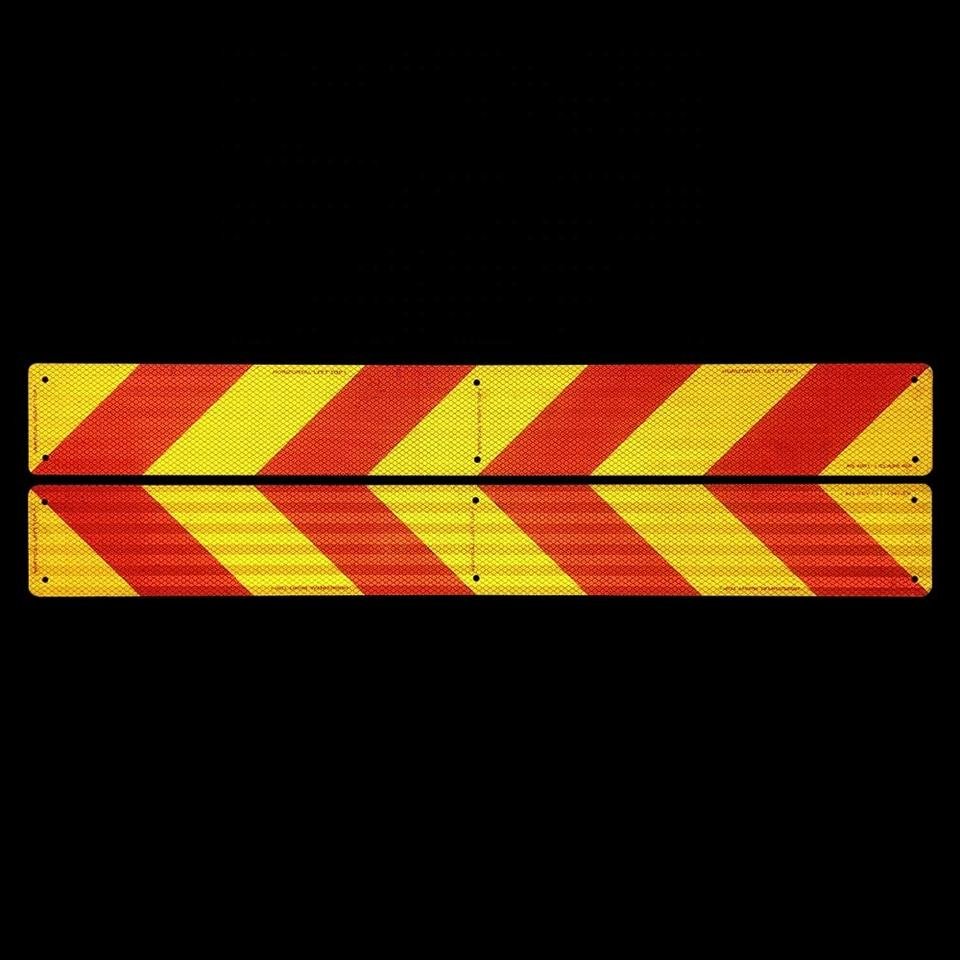

Reflective Surface
The reflective face returns incident light toward its source. Select the required material and performance specification for the vehicle.

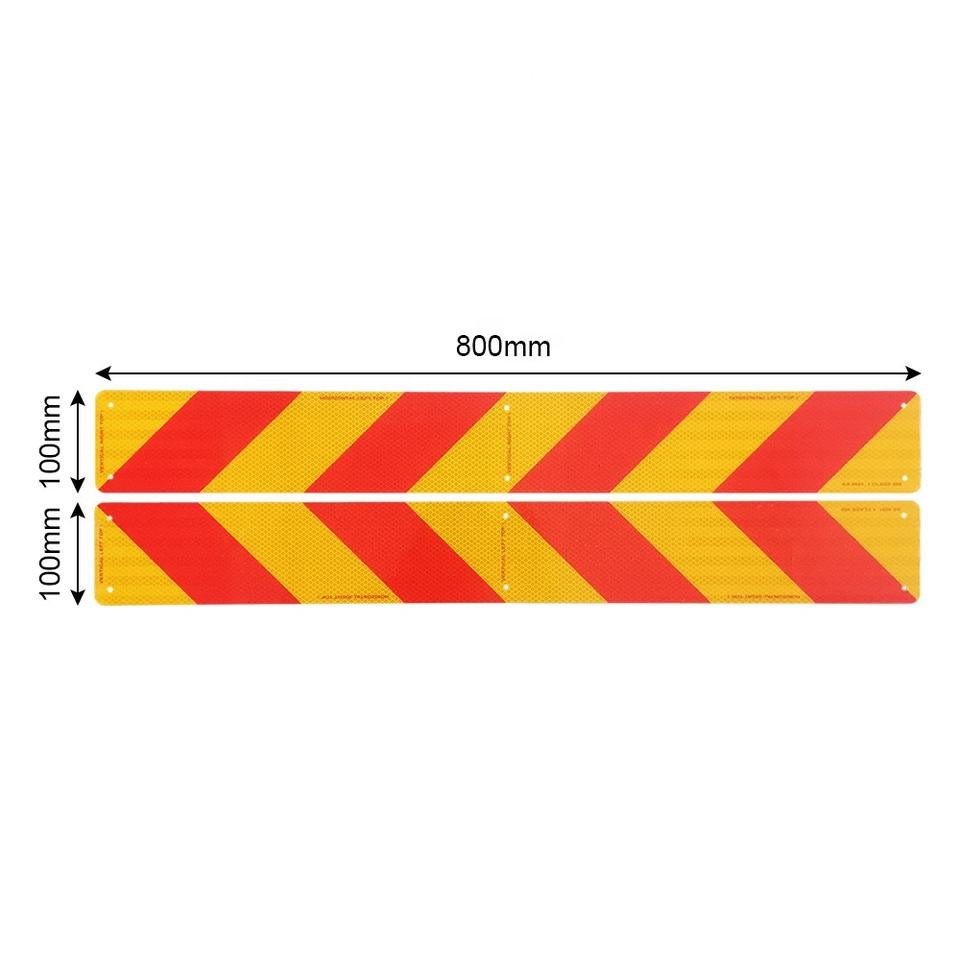

Dimensions and Mounting
The illustration shows an 800 × 100 mm format. Confirm hole positions, substrate and the complete mounting arrangement before ordering.
Customization & Ordering
Contact Xingyuan with your required dimensions, color, quantity, application and destination country. We will confirm available options, sample arrangements, packaging and delivery.
For projects with specific performance requirements, confirm the material grade, installation conditions and supporting documentation before ordering.
Rear Marker Placement and Packaging References
The paired red and yellow plates combine opposite diagonal stripe directions. The dimension drawing identifies an 800 × 100 mm format for each illustrated strip. Confirm the finished dimensions, backing, plate thickness and hole pattern for the supplied pair, especially when replacing an existing marker on a vehicle.
Plan the Installed Layout

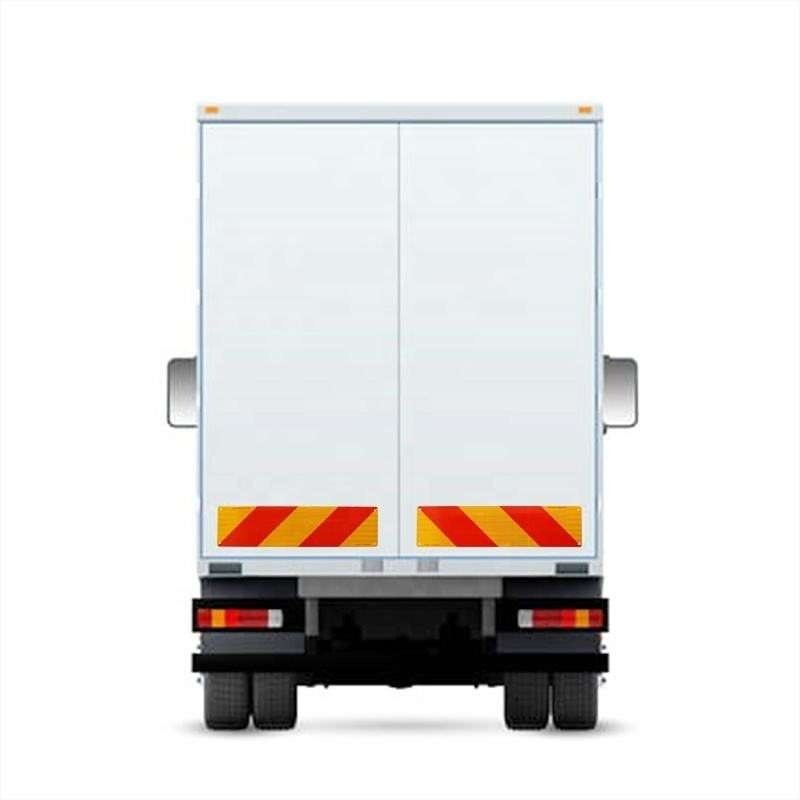

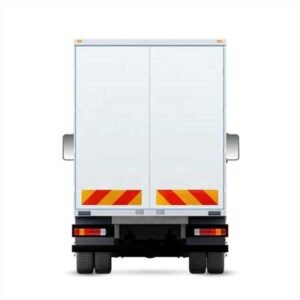

The rear-view illustration helps communicate the intended relationship between the two markers. Before installation, check the available flat area and clearance around hinges, lights, registration plates and door movement. Provide a dimensioned mounting drawing if the pair must align with existing fixings. The example does not establish the correct legal position for every vehicle or destination.
Protection and Packing

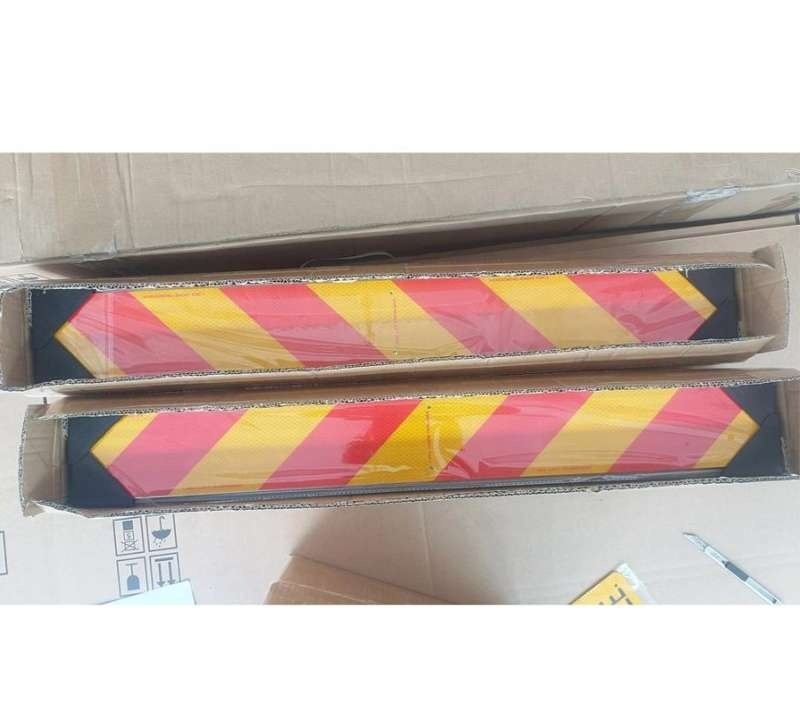

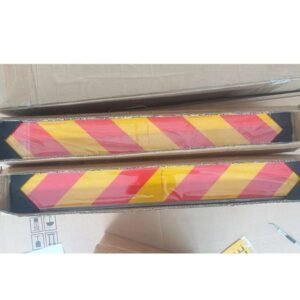

The carton photograph shows the long marker panels with protective wrapping. It is a packing reference rather than a fixed carton specification. State whether your order quantity refers to individual plates or matched pairs, and confirm the pieces per carton, labels and outer dimensions with the quotation. Check the reflective faces and panel edges on receipt before fitting.
Related Warning Message Layouts

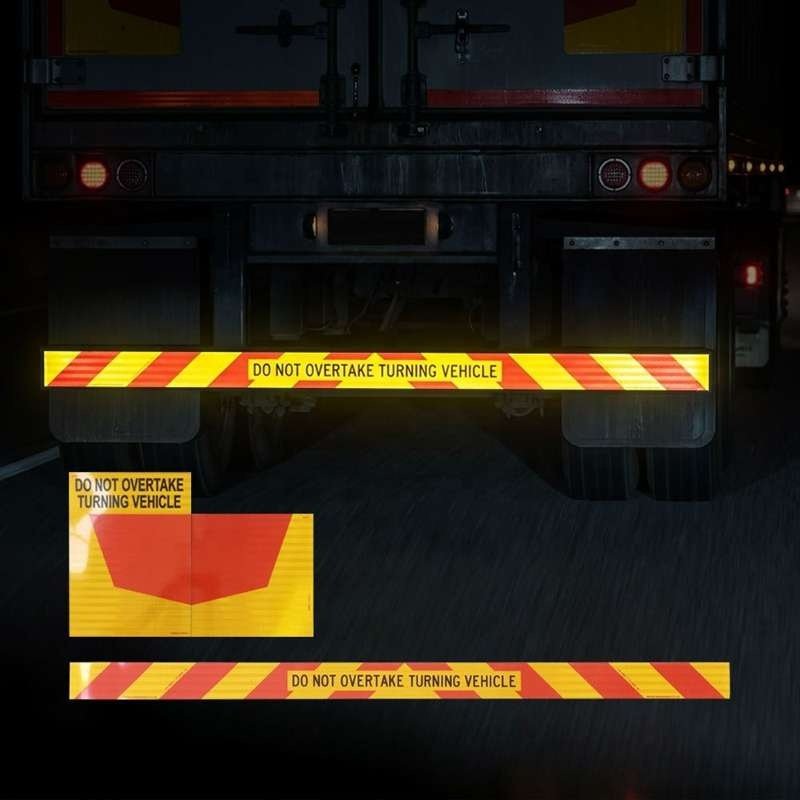

The additional application image illustrates chevron layouts combined with turning-vehicle wording. These are alternative graphic references and are not automatically included with the plain diagonal plate pair. If a printed message is needed, supply the exact wording, language, dimensions and artwork for review. Confirm the relevant product documentation and installation requirements for the destination before selecting a version.
