Product Specifications
Photoluminescent tape for printed direction arrows, fire-exit messages and custom identification markings.
| Material options | PET, PVC or acrylic |
|---|---|
| Backing | Pressure-sensitive adhesive |
| Glow color | Green |
| Listed widths | 1–5 cm |
| Listed lengths | 5–50 m |

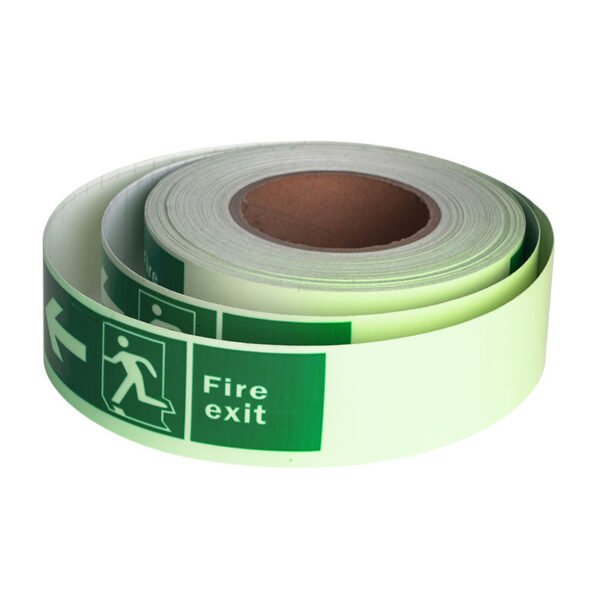

Fire Exit Message
Printed text and symbols support repeat guidance markings. Confirm wording, language, symbol layout and roll dimensions.

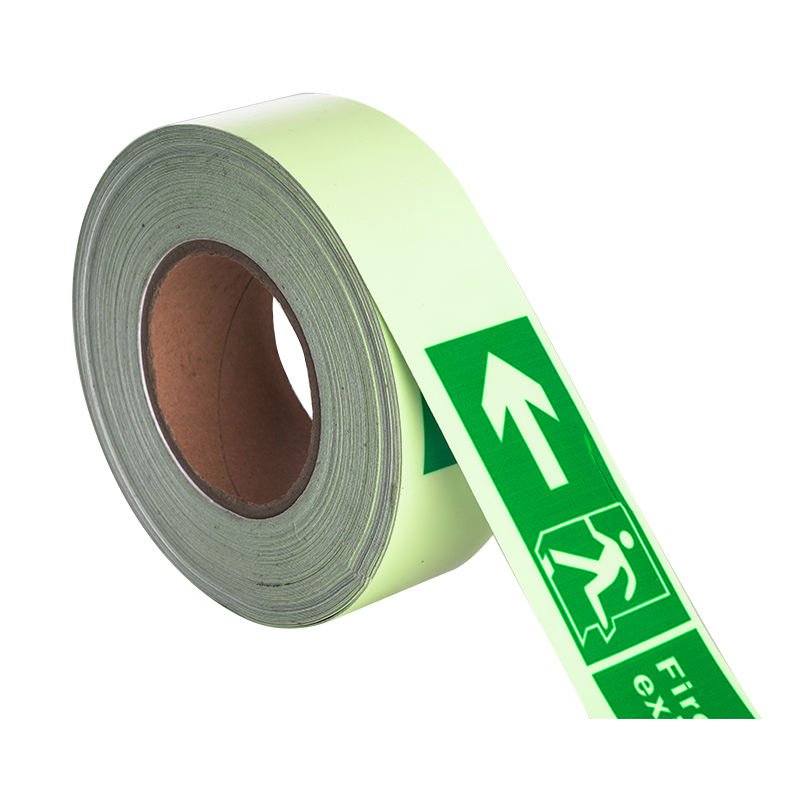

Arrow Direction Options
Specify the required arrow orientation and spacing. Use the intended sign design and supporting documentation for the installation.

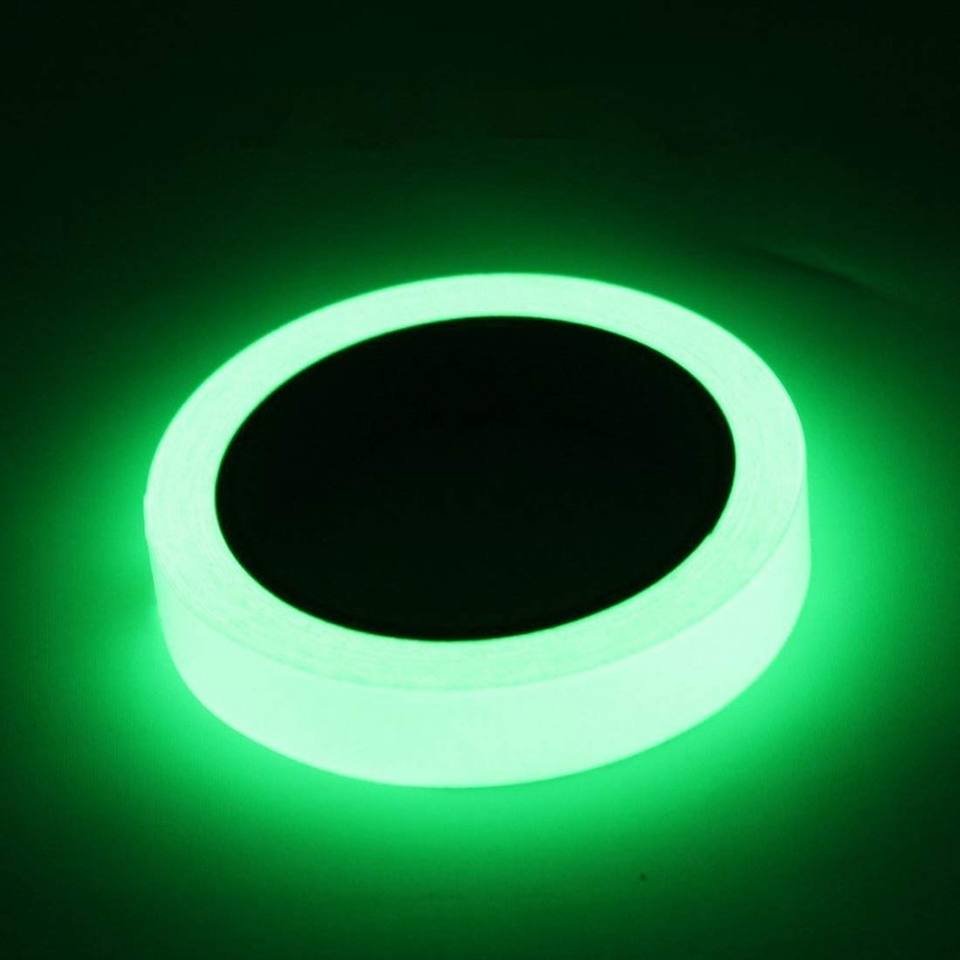

Afterglow Material
The tape absorbs light before emitting a fading glow in darkness. Required brightness and duration should be confirmed by grade and test conditions.
Customization & Ordering
Contact Xingyuan with your required dimensions, color, quantity, application and destination country. We will confirm available options, sample arrangements, packaging and delivery.
For projects with specific performance requirements, confirm the material grade, installation conditions and supporting documentation before ordering.

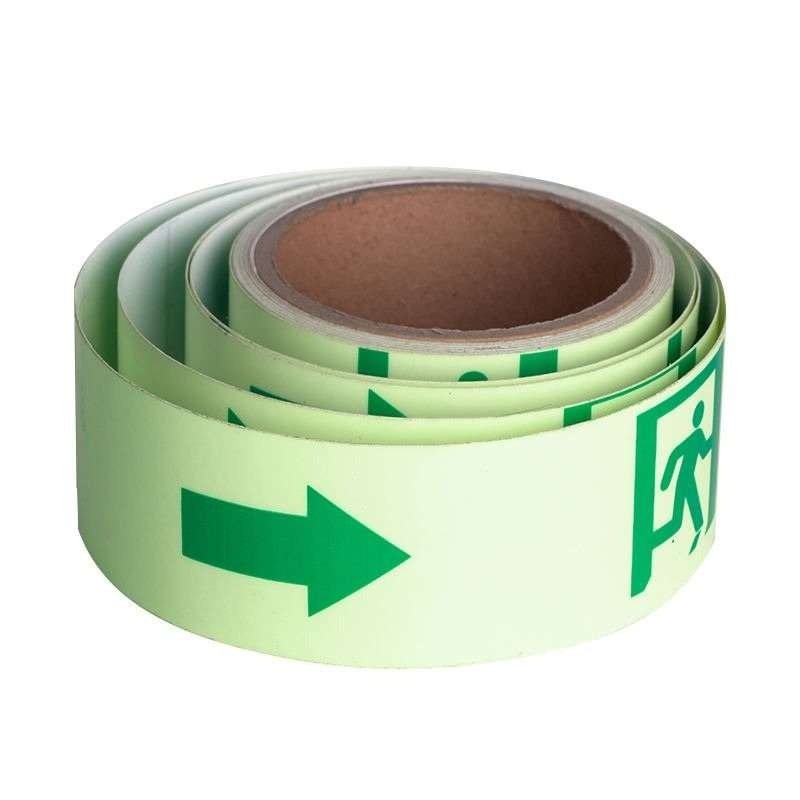

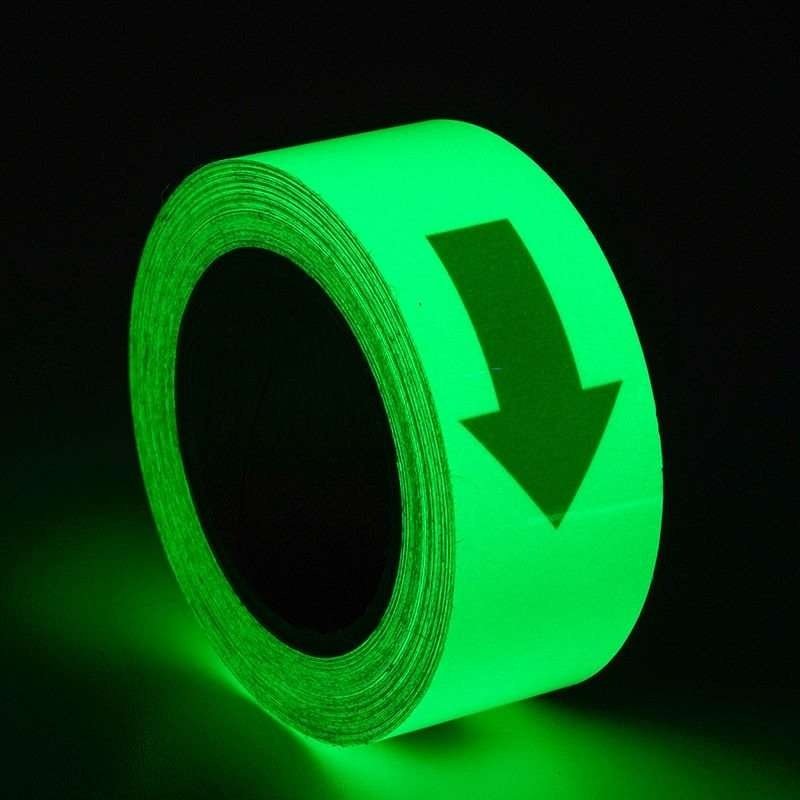

Directional Tape Designs and Guidance Applications
The additional views show an arrow-only luminous roll and a printed roll combining an arrow with a running-person symbol. These supplement the fire-exit wording and plain tape examples above. Specify the required message, arrow direction and repeat spacing so the delivered design matches the intended guidance layout.
Printed and Plain Format Choices
The source lists pressure-sensitive adhesive construction with acrylic, PET or PVC material options. Listed converted sizes range from 1–5 cm in width and 5–50 m in length, with the exact format to be confirmed for the selected design. Plain material, arrow tape and fire-exit graphics are different configurations; identify the required configuration and quantity for each order line.
Afterglow Under the Intended Lighting
The luminous layer absorbs light before producing a fading green afterglow in darkness. The photographs illustrate the visual difference between the printed graphics and the glowing background. Actual brightness and duration depend on the grade and charging conditions. If a project has a specified luminous requirement, provide it with the inquiry and request the matching product data before ordering.
Application Layout References
The collage shows possible uses for strips and converted graphics along steps, around outlines and on directional signs. Use these images to communicate placement and design preferences. The final layout, viewing direction and sign design should be checked against the requirements for the intended location; the illustrated examples do not establish a particular approval or compliance rating.
Surface and Artwork Preparation
Prepare a clean, dry bonding surface and test adhesion on the actual substrate. Consider surface texture, corners, cleaning and the expected service environment when selecting the material. For custom printed work, send clear artwork with dimensions and language requirements, and confirm the compatible printing process for the chosen film.
Quotation Checklist
Include the tape width and length, design, arrow orientation, quantity, destination and packaging preference. Request a sample when you need to assess appearance, adhesion or production compatibility. Confirm any performance documentation and final artwork together with the supplied material grade before production.
