Product Specifications
Diagonal red and white reflective marking material for vehicles and warning panels, with a prismatic surface and adhesive backing.
| Pattern | Red / white diagonal stripes |
|---|---|
| Listed widths | 5–10 cm; custom sizes to be confirmed |
| Listed thickness | 0.45–0.50 mm |
| Format | Roll or cut strip |
| Application | Vehicle and warning-panel markings |

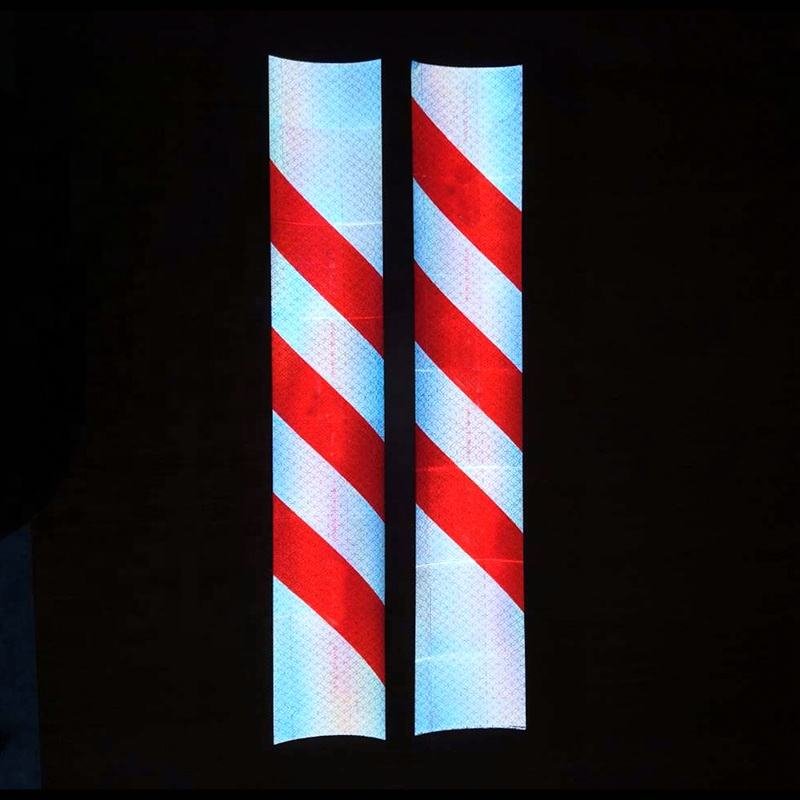

Diagonal Stripe Marking
Matched stripe directions can be specified for paired warning layouts. Confirm the required width, length and orientation.

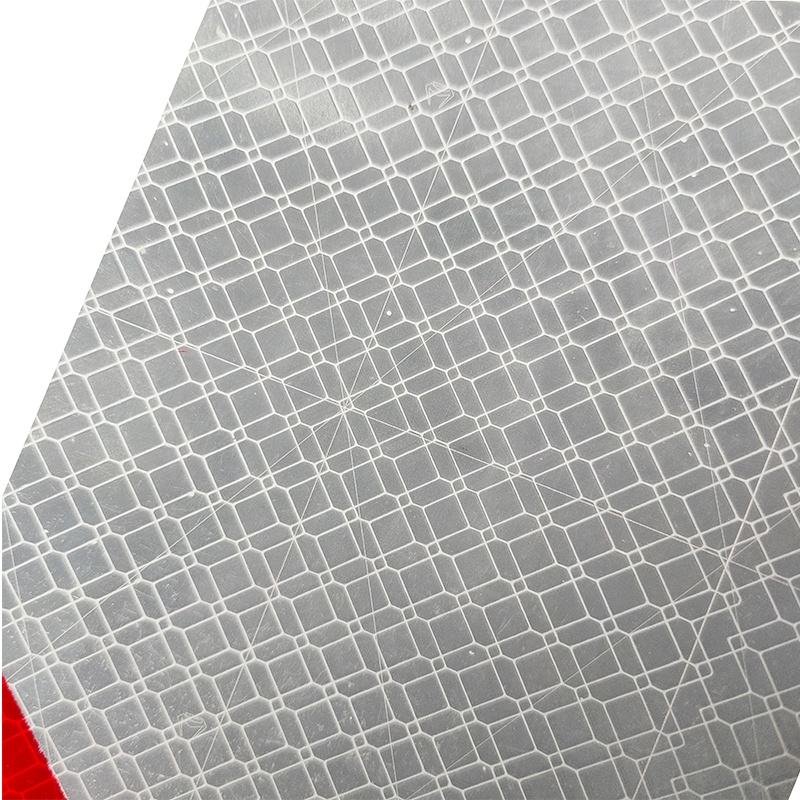

Prismatic Surface Detail
The close-up shows the reflective structure. Specify the performance required for your intended use.

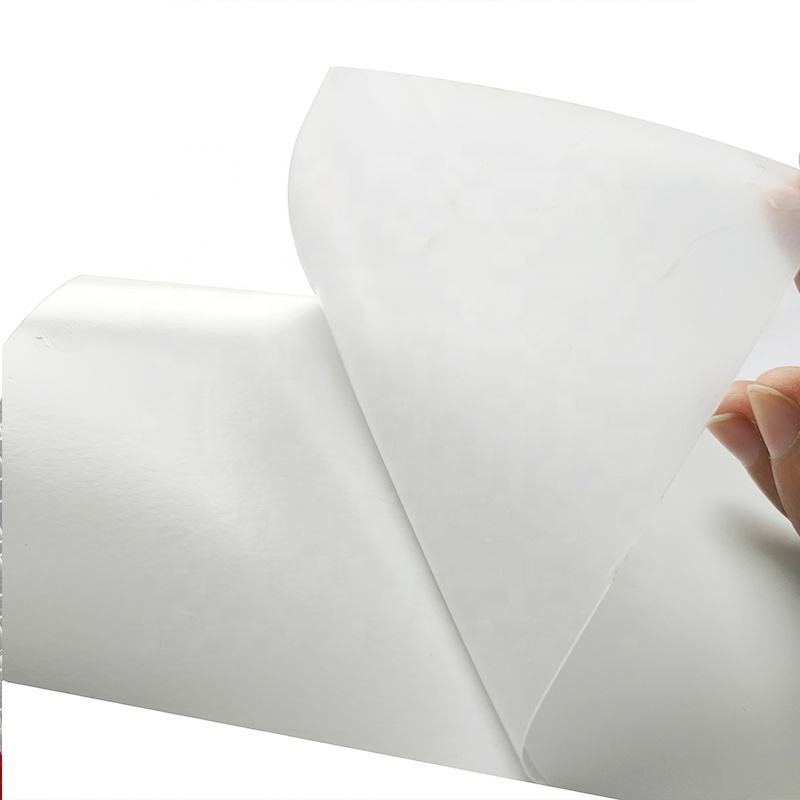

Peel-Away Backing
The liner protects the adhesive before application. Confirm substrate compatibility and prepare the surface before fitting.
Customization & Ordering
Contact Xingyuan with your required dimensions, color, quantity, application and destination country. We will confirm available options, sample arrangements, packaging and delivery.
For projects with specific performance requirements, confirm the material grade, installation conditions and supporting documentation before ordering.

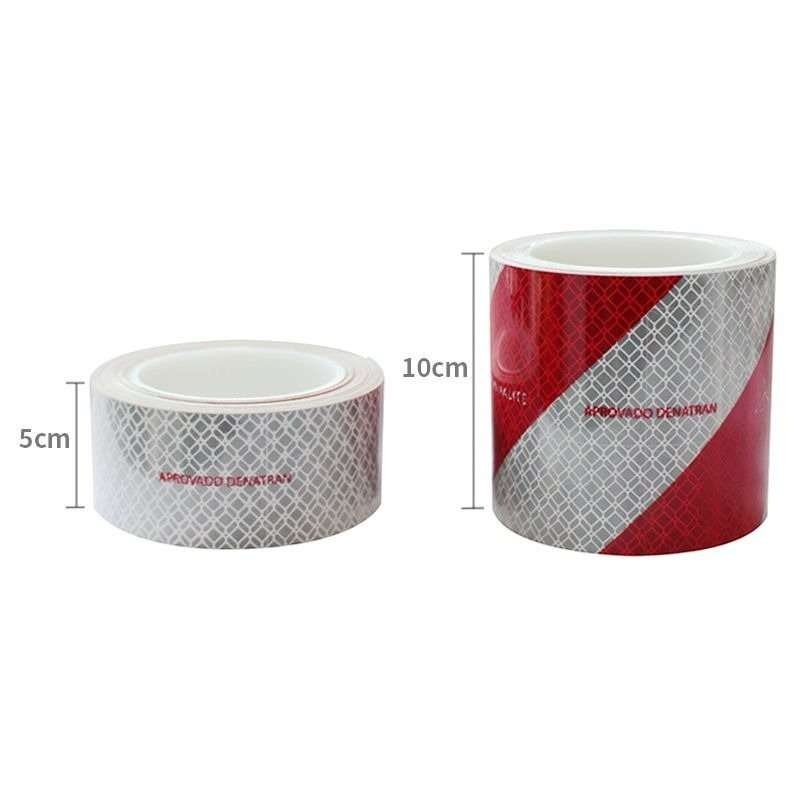

Diagonal Marking Tape: Width and Roll References
The added photographs show red and white diagonal reflective material in roll and cut-strip formats. The illustrated rolls are 5 cm and 10 cm wide. Choose the format to suit your marking layout, then confirm the final width, length and quantity before ordering. The size illustration does not establish a standard roll length or a package containing both widths.

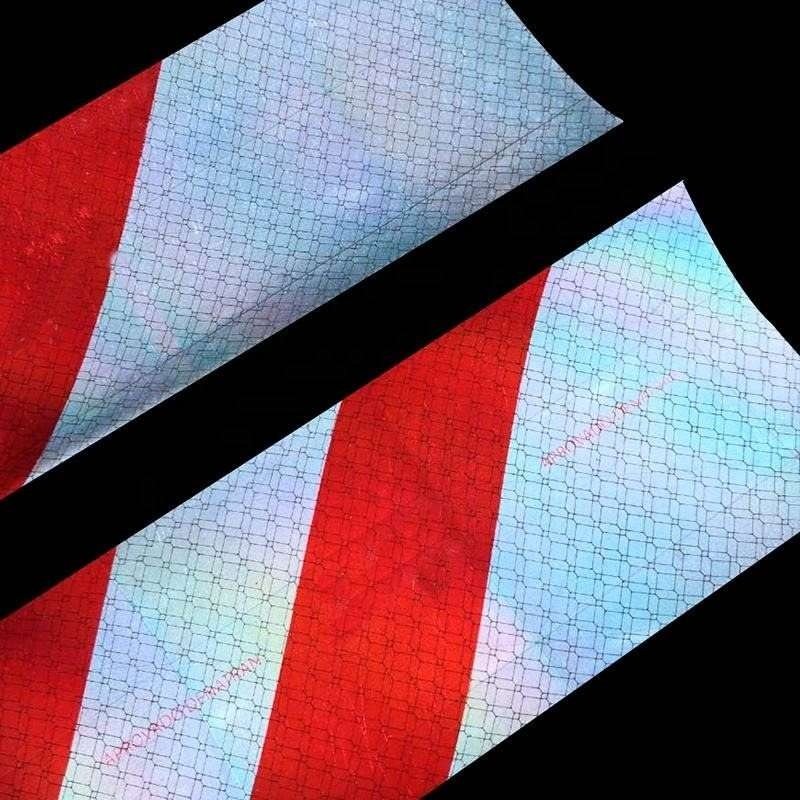

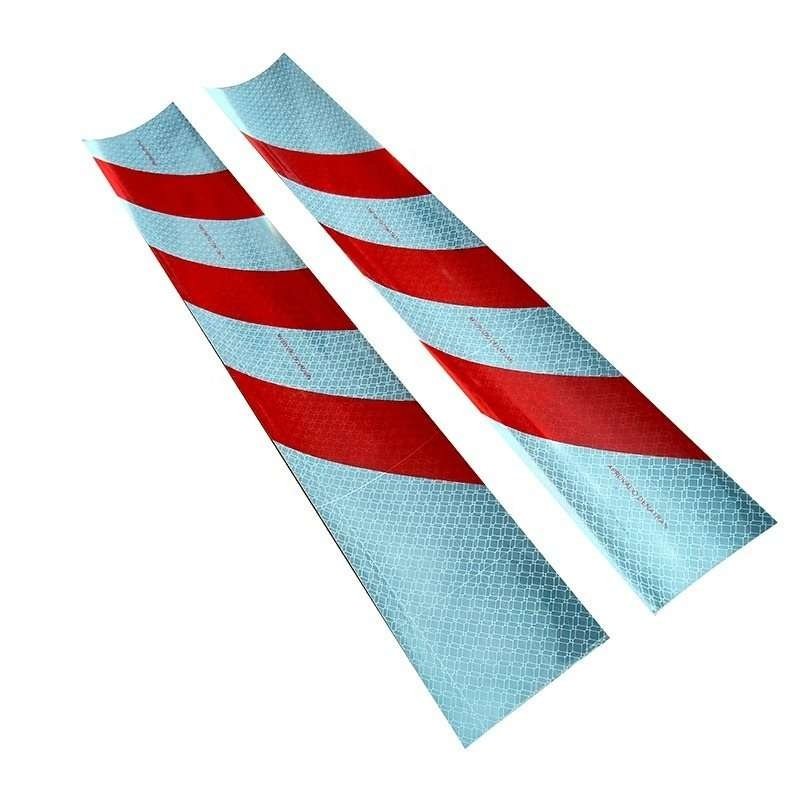

Prismatic Face and Stripe Direction
The closer views show the reflective surface across the diagonal color boundary and the appearance of two separate strips. Confirm stripe orientation for each side of your vehicle or warning panel, particularly when a matched left-right layout is required. Provide a drawing or reference image if the stripes must meet at a centerline or continue across adjacent panels.

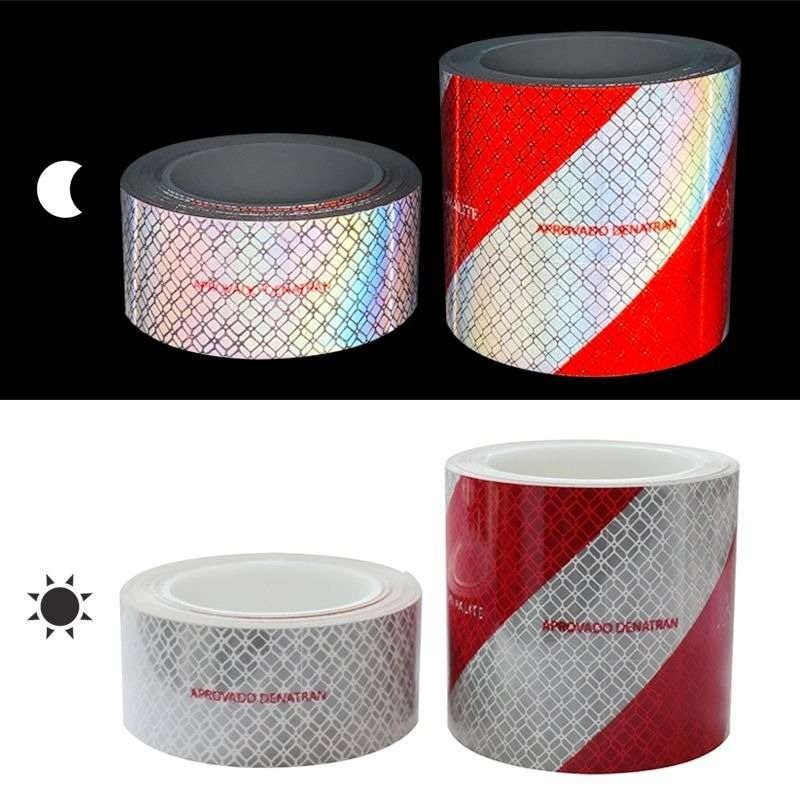

Appearance Under Different Lighting
The comparison below illustrates the rolls in ordinary and directed light. Reflective material returns external light and does not emit its own light. Brightness and color appearance vary with the viewing angle, light source and surface condition; these images are not a laboratory performance test.
Printed Identification and Specification Checks
Some photographed pieces carry APROVADO DENATRAN wording. This describes a visible marking on the reference material and is not a certification statement for your order. If the destination market or project requires a particular approval, request the applicable documentation and confirm its coverage for the exact supplied item before purchase.
The listed thickness is 0.45–0.50 mm. Confirm the finished construction, adhesive and liner details for the selected grade, together with any custom width or cut-length requirements. For an existing installation, a sample can help compare the surface pattern, color and flexibility before replacing a larger quantity.
Application and Quotation Details
Apply to a clean, dry and compatible surface after checking adhesion on the intended substrate. Position the stripes before peeling the liner, then apply evenly without stretching. Confirm suitable installation conditions and inspect edges and joints after fitting.
For a quotation, send the width, roll length or cut-strip dimensions, stripe direction, quantity, application surface and destination country. Include packaging preferences and required approval documents so the proposed supply can be checked against the project.
