Product Specifications
Segmented reflective tape supplied on a release liner for custom vehicle-marking layouts.
| Material | PET + PVC reflective construction |
|---|---|
| Format | Individual reflective sections on a continuous liner |
| Backing | Self-adhesive |
| Listed roll size | 5 cm × 45.7 m |
| Colors shown | Yellow, white and red |
| Applications | Suitable trucks, trailers and curtain-side vehicle surfaces |
| Order requirements | Confirm segment dimensions, spacing, surface compatibility and required documentation |
Segmented Reflective Layout

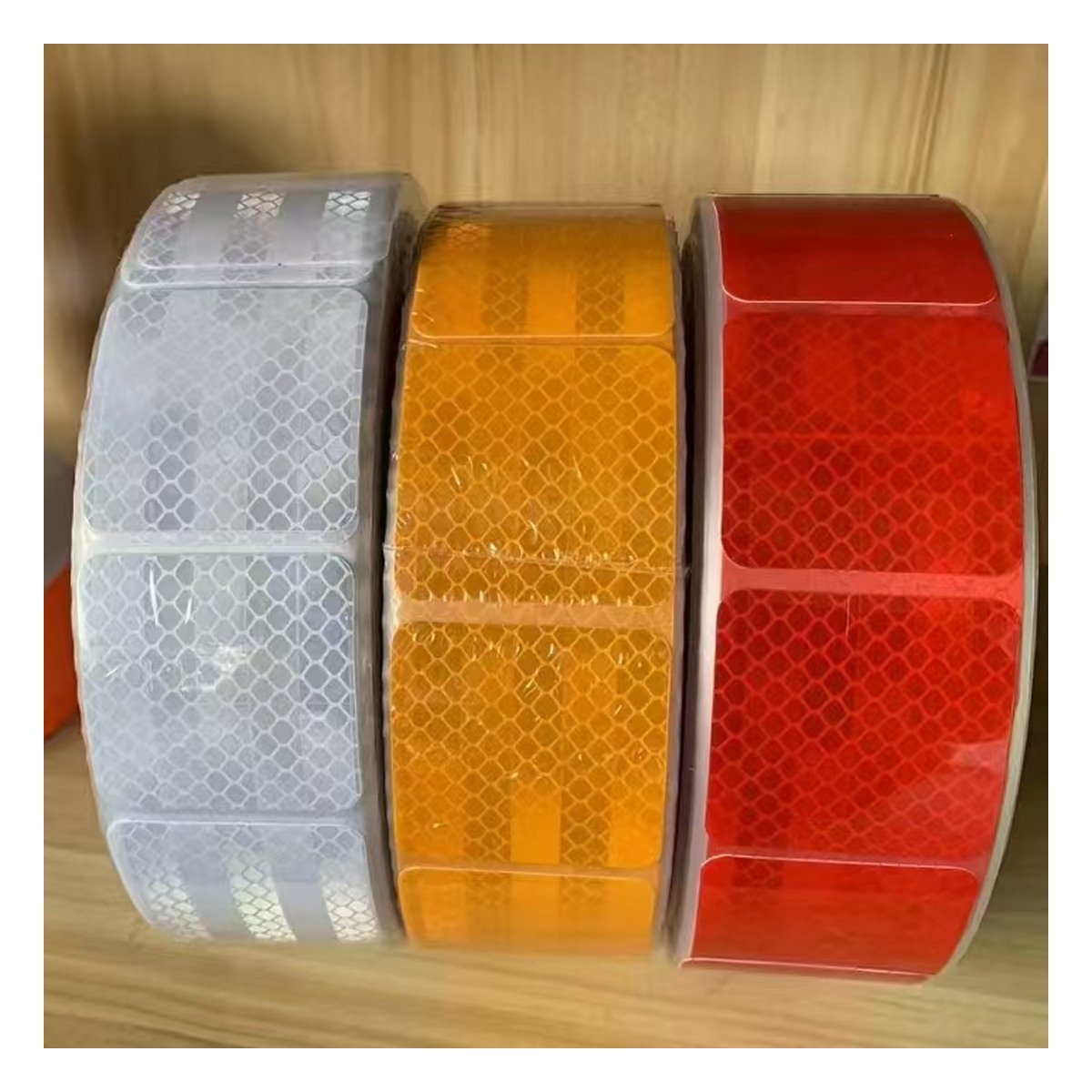

Individual reflective sections are arranged on a continuous release liner. The illustrated yellow, white and red options support different vehicle-marking layouts.

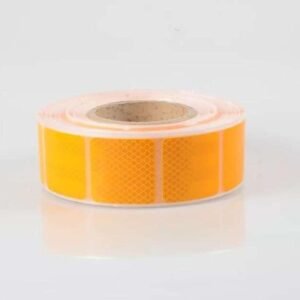

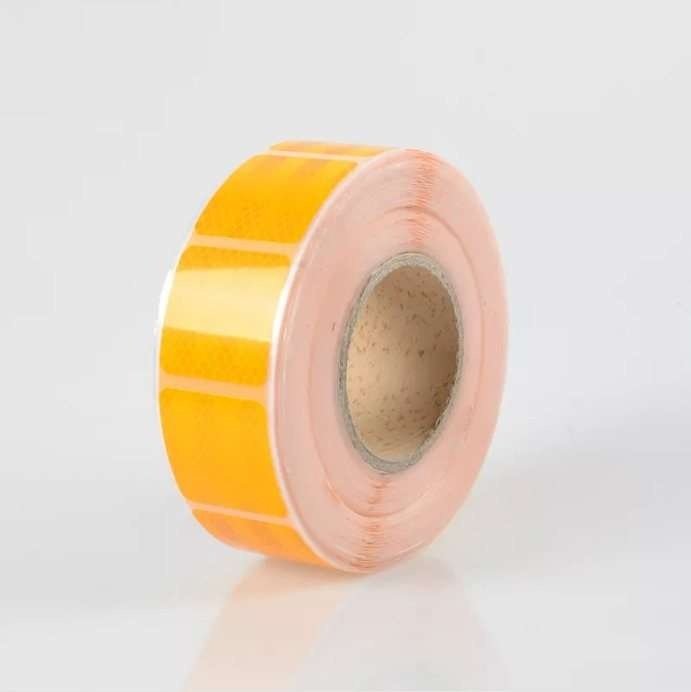

Yellow Roll Format

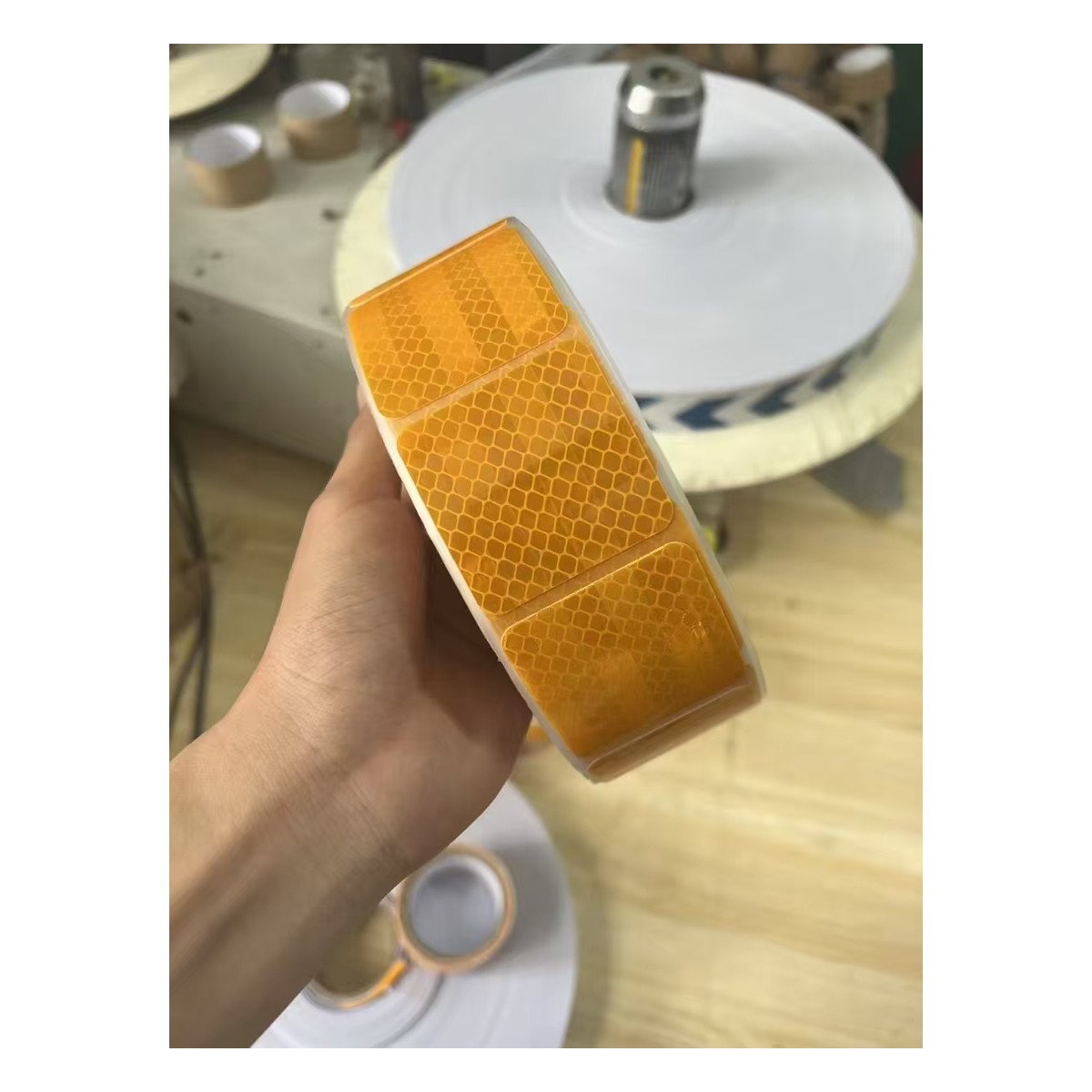

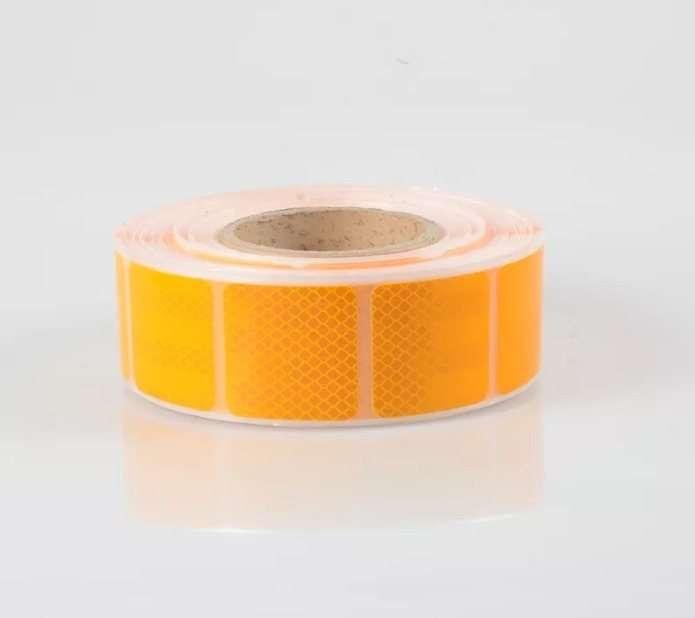

The yellow roll shows the spacing between reflective sections. The listed roll format is 5 cm × 45.7 m; confirm segment dimensions and spacing for your application.

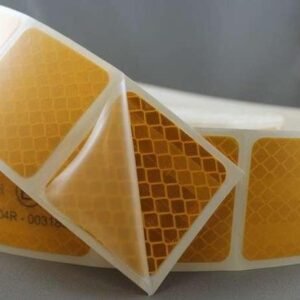

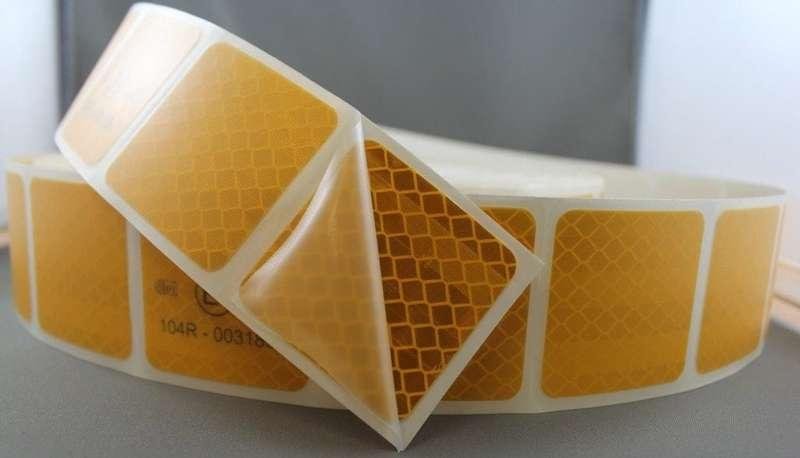

Peel-and-Apply Sections

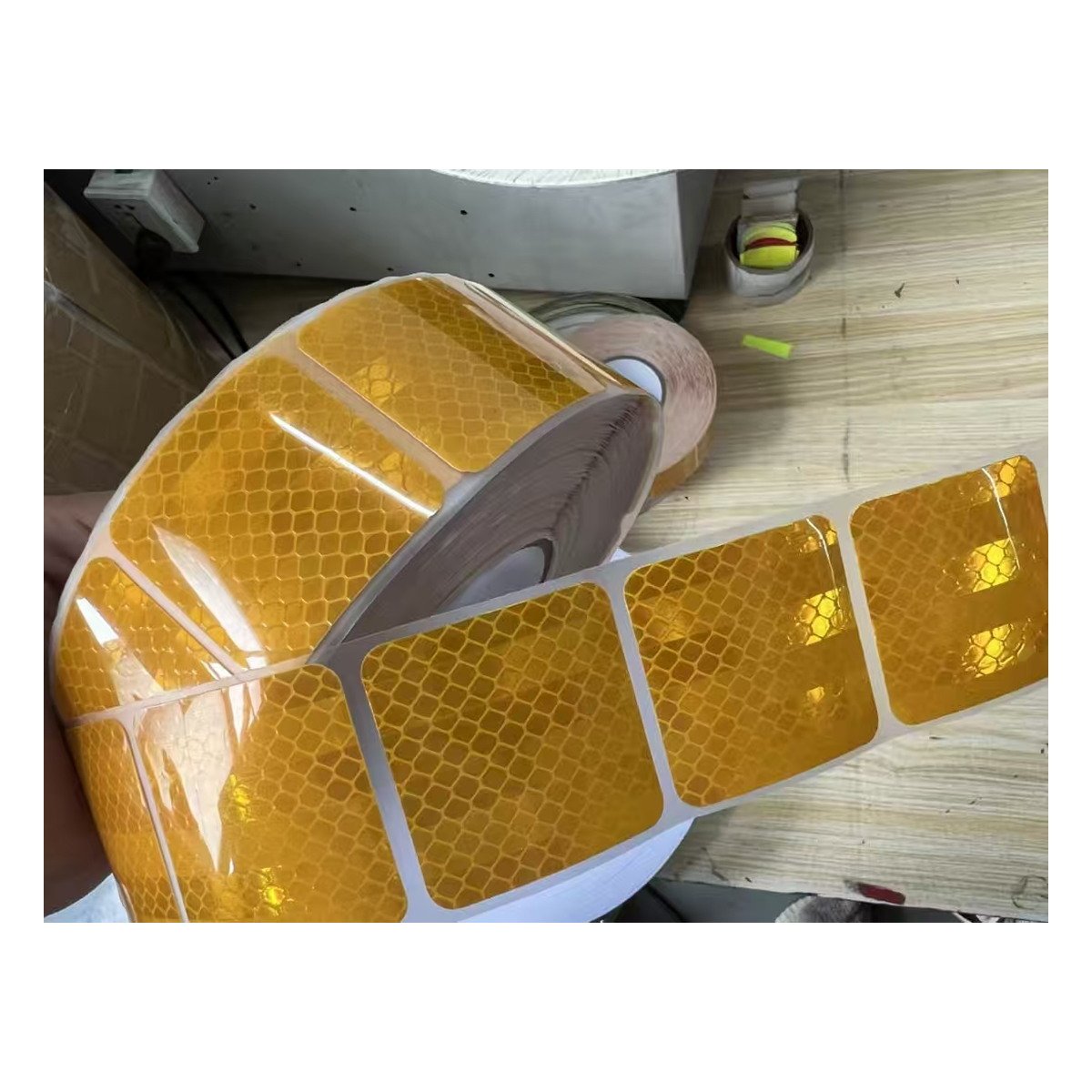

The peeled section illustrates the adhesive-backed format. Test adhesion on the intended vehicle or curtain-side surface and confirm installation instructions and any required approval documents.
Customization & Ordering
Contact Xingyuan with your required dimensions, color, quantity, application and destination country. We will confirm available options, sample arrangements, packaging and delivery.
For projects with specific performance requirements, confirm the material grade, installation conditions and supporting documentation before ordering.
Segmented Reflective Rolls: Color and Format
This format places individual reflective sections on a continuous release liner. The gaps between sections help distinguish it from an uninterrupted strip of reflective film. Confirm the size of each segment, the spacing and the intended placement before selecting material for a truck, trailer or compatible curtain-side surface.
Specify the Color and Segment Layout

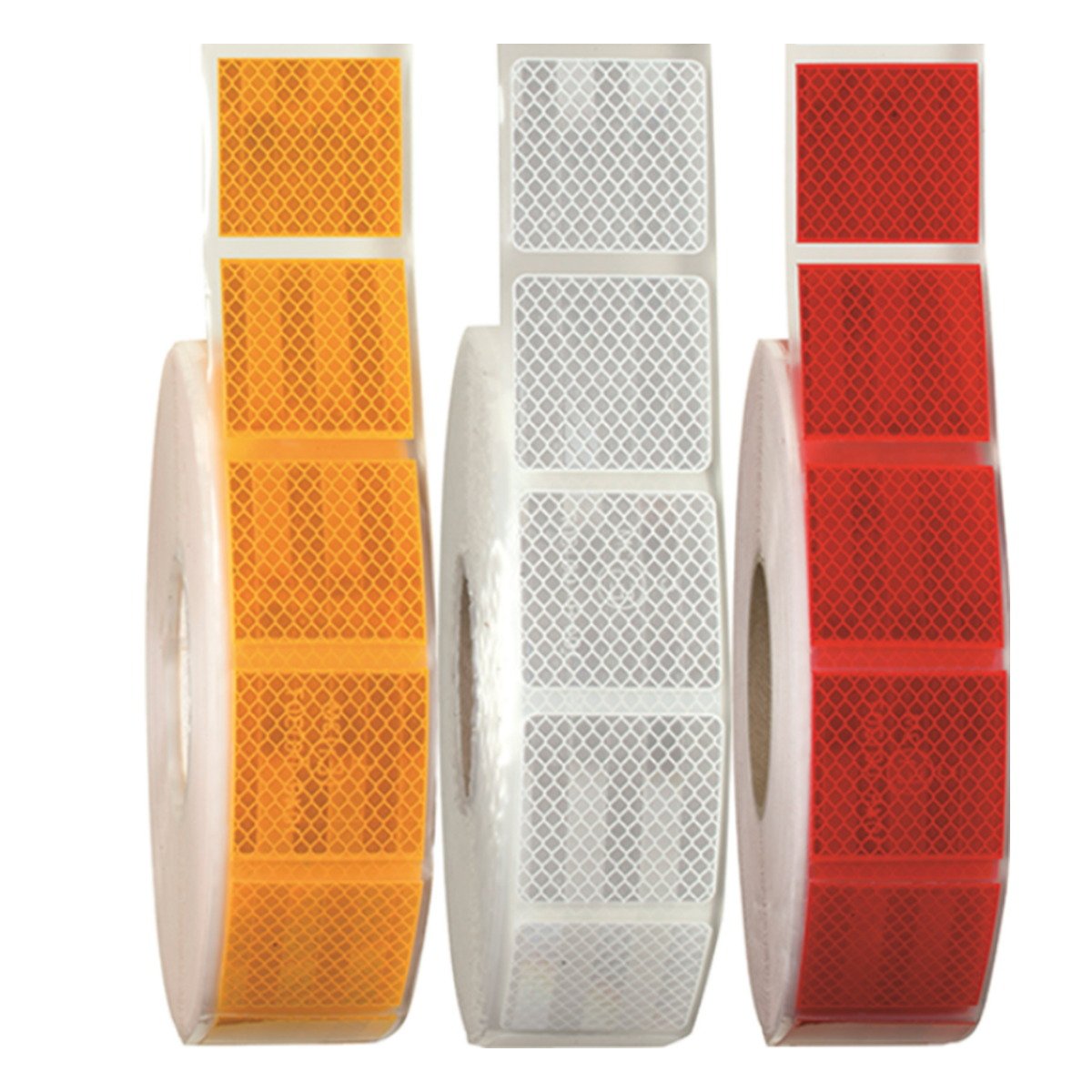

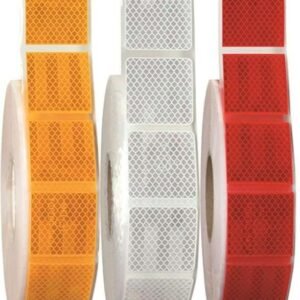

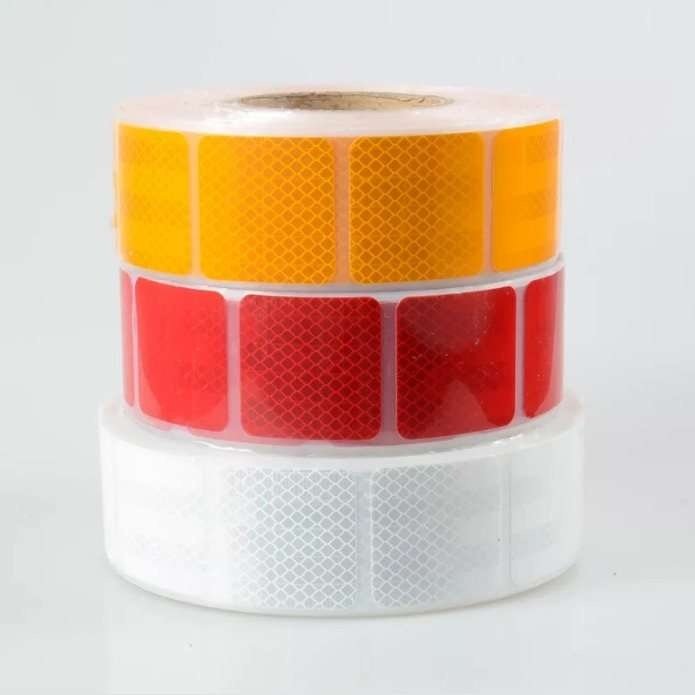

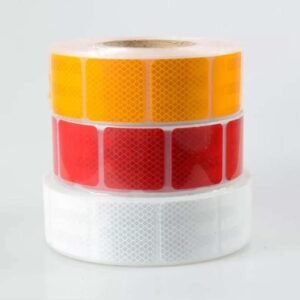

The photographs show yellow, red and white options. These are separate color references; a stack containing all three colors does not mean one order includes every option. Specify the color and number of rolls required. If you are replacing existing sections, provide their width, length, spacing and a reference photograph to help check the match.
The listed roll format is 5 cm × 45.7 m, with PET and PVC reflective construction indicated for this product. Confirm the exact offered grade and adhesive before ordering. Roll length alone does not establish the number of usable segments because segment dimensions and gaps also affect the count.

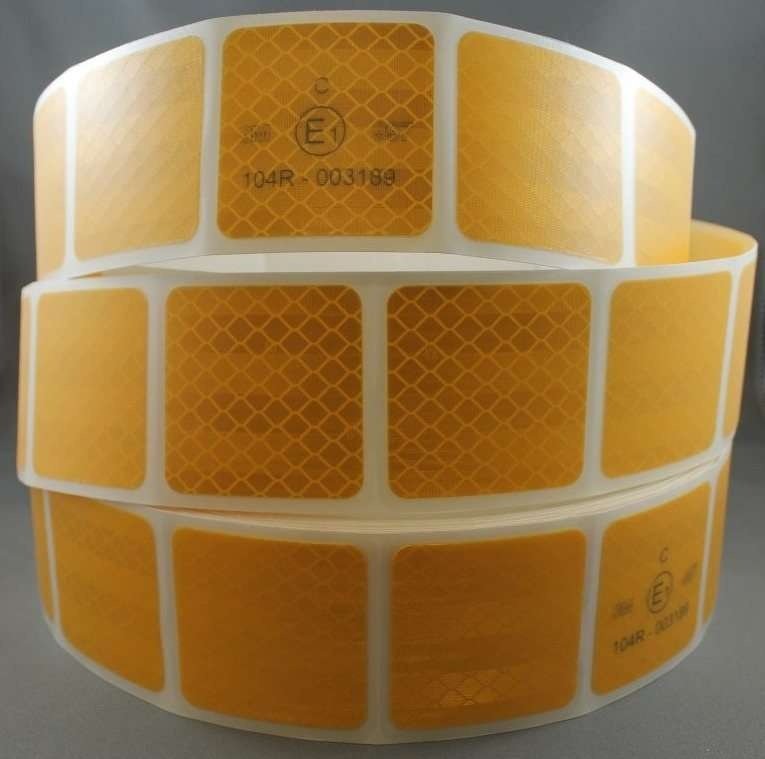

Close-Up of the Reflective Sections
The additional close-up shows the cell pattern, rounded corners and printed identification on the yellow sections. An E-mark and approval number are visible on the photographed material. These marks are reference details rather than proof of approval for the supplied order. Request the documentation covering the exact item if your project or destination requires a particular standard.
Inner-Box Packing Reference
The carton photograph illustrates individual plain boxes arranged inside an outer carton. Final packing depends on the selected roll format and quantity. Confirm the number of rolls per inner box and carton, labeling and shipping dimensions for your order; these details should not be inferred from the image.
Application and Purchase Checks
Prepare a clean, dry and compatible substrate and test adhesion on the actual surface. Flexible curtain-side materials require particular attention to compatibility and movement during use. Confirm the recommended installation conditions and apply the sections without contaminating the adhesive. Check spacing, alignment and edge contact as you work.
For a quotation, provide the color, roll size, segment dimensions and gap, number of rolls, vehicle or curtain-side application and destination. Include any approval requirements and packaging preferences so that the proposed material can be checked against the project.
