This red and yellow diagonal reflective tape has reflective sections in both colors. Its construction is PVC + PET, with a laminated PET protective surface film. The actual product, ruler, illuminated tape and carton photographs below show the sample discussed in this guide. Confirm the dimensions, thickness, pattern and packaging when placing an order.
Xingyuan supplies reflective marking tapes in multiple color combinations, with custom requirements available for discussion. This guide uses a specific red/yellow sample specification to explain what buyers should confirm before a bulk order.
Red and Yellow Diagonal Tape: Appearance and Pattern
A diagonal stripe crosses the tape at an angle. A chevron forms a repeated arrow or V-shaped layout. The actual sample shown here uses alternating red and yellow diagonal sections. Include a reference image or drawing with your inquiry so the pattern, color sequence and direction can be matched. Browse our reflective tape range for other formats; materials and dimensions are confirmed separately for each model.
A Red/Yellow Sample Specification
The following specification describes the PVC + PET sample shown in the actual photographs in this article. It is a reference for discussing an order, rather than a universal specification for every red/yellow tape in the catalog.
| Item to confirm | Red/yellow sample specification |
|---|---|
| Construction | PVC-based tape with a laminated PET protective surface film |
| Adhesive | Single-sided, pressure-sensitive adhesive |
| Color pattern | Alternating red and yellow diagonal sections |
| Roll dimensions | 50 mm wide × 50 m long |
| Core | 3 inches |
| Nominal thickness without liner | 0.24 mm / 240 µm, including tape, PET protective film and adhesive |
| Nominal thickness with liner | 0.34 mm / 340 µm, including the removable release liner |
| Indicative pattern spacing | Approximately 70 mm red + 70 mm yellow along the same long edge; approximately 140 mm repeat |
| Reflective appearance | Both red and yellow sections are reflective; see the actual illuminated-sample photograph below |
Confirm the approved sample and tolerances before production. The pattern spacing above is an indicative reading from a ruler photograph. It needs physical sample confirmation. Thickness, dimensional tolerances and any required technical documents should be agreed for the exact product.
How to Measure the Diagonal Color Spacing
Measure the red and yellow sections along the same long edge of the tape. Mark the points where each diagonal boundary meets that edge. The distance between corresponding points in the next pattern is the repeat.
For the sample reference, approximately 70 mm of red plus 70 mm of yellow gives a repeat of approximately 140 mm. This is an along-edge measurement. A measurement perpendicular to the sloping stripe boundary describes a different dimension.
- Show the tape edge and measuring direction on your drawing.
- Specify the red section, yellow section and full repeat separately.
- Confirm left- or right-sloping stripes and any matching arrangement.
- Include the tape width and agreed tolerances in the sample approval.
Are Both Red and Yellow Sections Reflective?

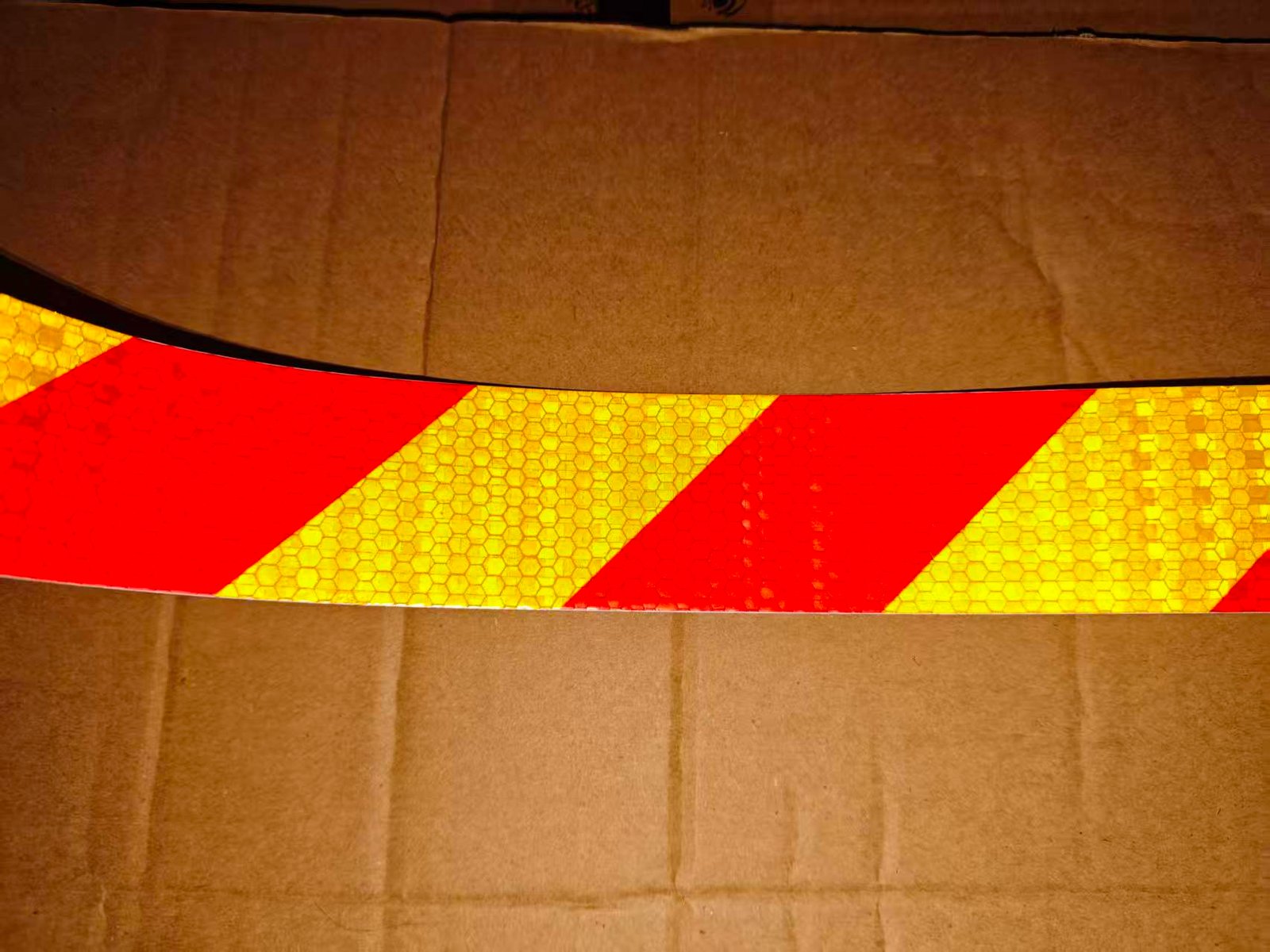

Yes. Both the red and yellow sections of this sample are reflective. The photograph below shows their illuminated appearance. When requesting a custom color combination, identify which sections must be reflective so the proposed construction can be confirmed.
Reflective tape needs an external light source. It is different from glow-in-the-dark tape, which absorbs light and releases a fading glow. Compare the red and yellow areas under consistent illumination, and keep an unprinted or agreed reference sample where relevant.
Photographs help review appearance, but do not provide a numerical retroreflectivity value or demonstrate compliance with a test standard. If your project requires a particular performance level, request suitable documentation for the finished product. Read our reflective versus ordinary warning tape comparison.
Multiple Colors and Custom Options
Red/yellow is the combination shown in these actual sample photographs. Other color combinations and custom patterns are available for discussion; send the required colors and layout to confirm the construction and quotation.
You are not limited to one color combination. The Xingyuan catalog shows red/yellow, red/white, yellow/black and other contrasting layouts. Custom colors and patterns can be discussed using your reference or artwork. Available combinations depend on the selected construction and order requirements.
For custom supply, specify the colors, diagonal direction, repeat dimensions, roll width, roll length, quantity and packaging. Identify which colored sections must remain reflective. Do not assume that a black contrast section has the same reflective behavior as the adjoining color.
The 50 mm × 50 m configuration in the sample table is different from catalog items listed as 45 m rolls. Confirm the exact length on the quotation and packing specification. For color matching, approve a physical sample rather than relying solely on a screen image.
Thickness: With or Without the Release Liner?
Thickness comparisons are meaningful only when they describe the same layers. For this sample, 0.24 mm excludes the removable release liner; 0.34 mm includes it. Both are nominal supplier-declared figures.
If a buyer requests approximately 0.13 mm, this particular 0.24 mm sample is a thicker alternative and needs explicit acceptance. This does not mean every PVC reflective tape has the same thickness. State whether the requirement covers the finished adhesive tape or the complete construction with liner.
Packing Reference for This Sample
The supplied packing reference is one roll per blister pack, 24 rolls per carton, and a carton size of 36 × 36 × 32 cm. Custom packaging can be discussed. Confirm carton quantity, weights and shipping marks for the final order.
Before Approving a Bulk Order
- Product: agree the construction and exact sample; record whether both colors need to be reflective.
- Dimensions: confirm width, length, core, thickness basis, color spacing, repeat and tolerances.
- Application: identify the intended surface and evaluate adhesion on a compatible trial area.
- Packaging: confirm individual packs, rolls per carton, carton dimensions, labels and shipping marks.
- Documentation: check any required performance data or destination-market requirements for the selected product.
- Order terms: confirm sample arrangements, minimum quantity, pricing, timing and delivery terms in writing.
Frequently Asked Questions
Can I order a different color combination or custom size?
Yes, color combinations, dimensions and other customization requirements can be discussed with Xingyuan. Send your drawing or reference, required quantity and application so availability and order requirements can be confirmed.
Does the red/yellow pattern automatically mean the tape is approved for vehicles?
No. The colors and diagonal appearance alone do not establish approval for a regulated vehicle marking. Confirm the applicable requirement and supporting documents for the exact product before selecting it.
Can I compare prices using only the roll dimensions?
Compare the material construction, reflective requirements, thickness basis, adhesive, pattern, packaging and quantity as well. Two rolls of the same width and length may have different specifications. Read our seven-factor guide to comparing reflective tape prices for a practical quotation checklist.
Request a Red/Yellow Reflective Tape Sample or Quotation
Send the product reference or photo, color combination, tape width and length, pattern dimensions, quantity, application surface and delivery destination. Include any thickness or performance requirement. Use our quotation checklist or browse the reflective tape range.
