Product Specifications
Square black and white checkerboard reflective targets for surveying and reference-point marking.
| Pattern | Four-quadrant checkerboard |
|---|---|
| Colors | Black and reflective white/silver |
| Shape | Square |
| Size | Custom dimensions by agreement |
| Application | Surveying and reference-point marking |

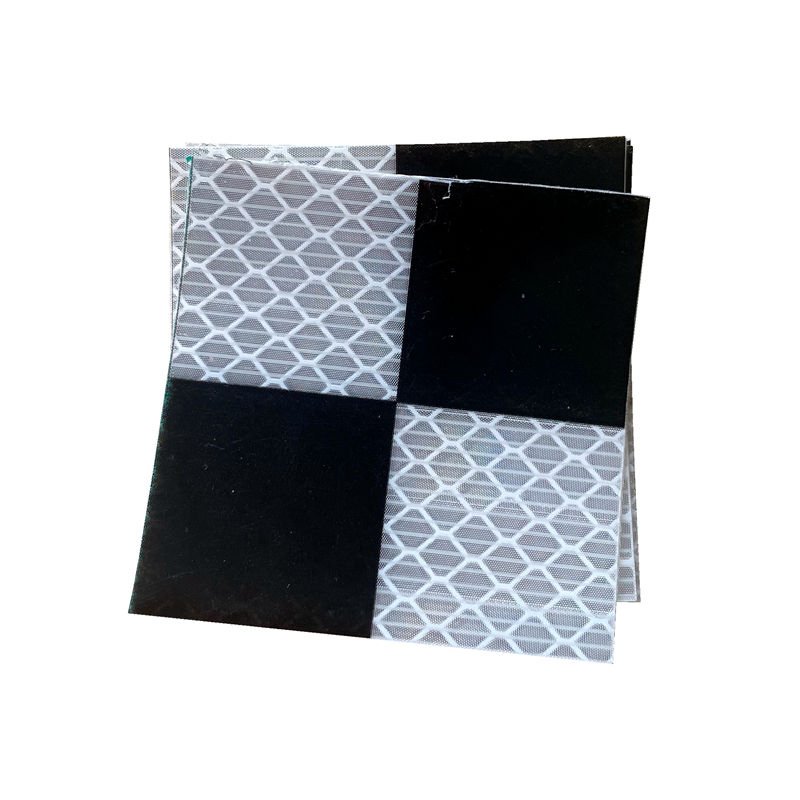

Checkerboard Target Detail
Alternating black and reflective white quadrants define a central reference point. Confirm the pattern with your measuring equipment.

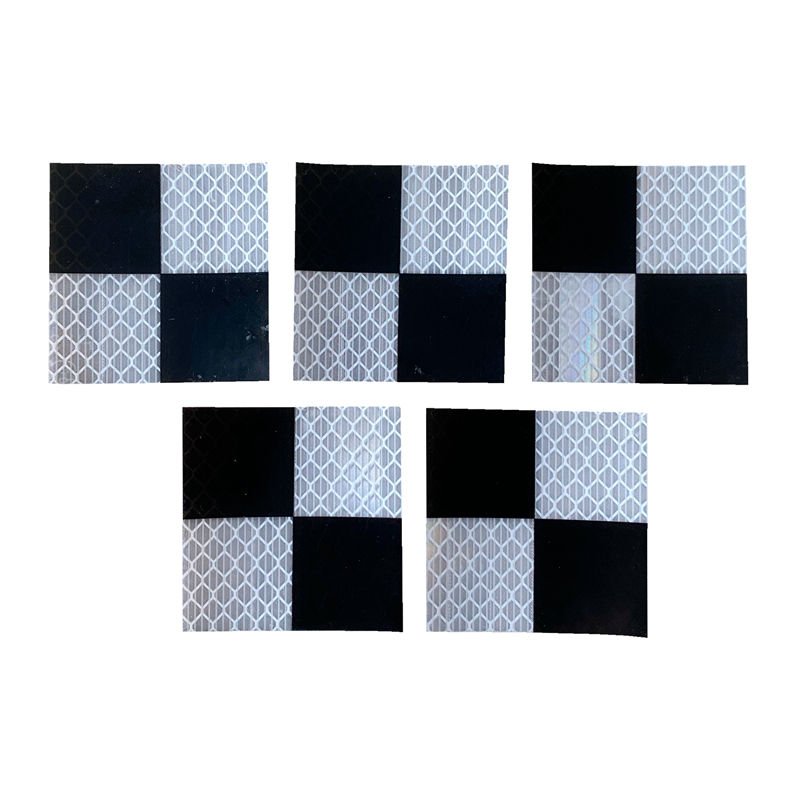

Target Supply Format
Multiple square targets are shown. Specify dimensions, quantity and mounting requirements with your inquiry.

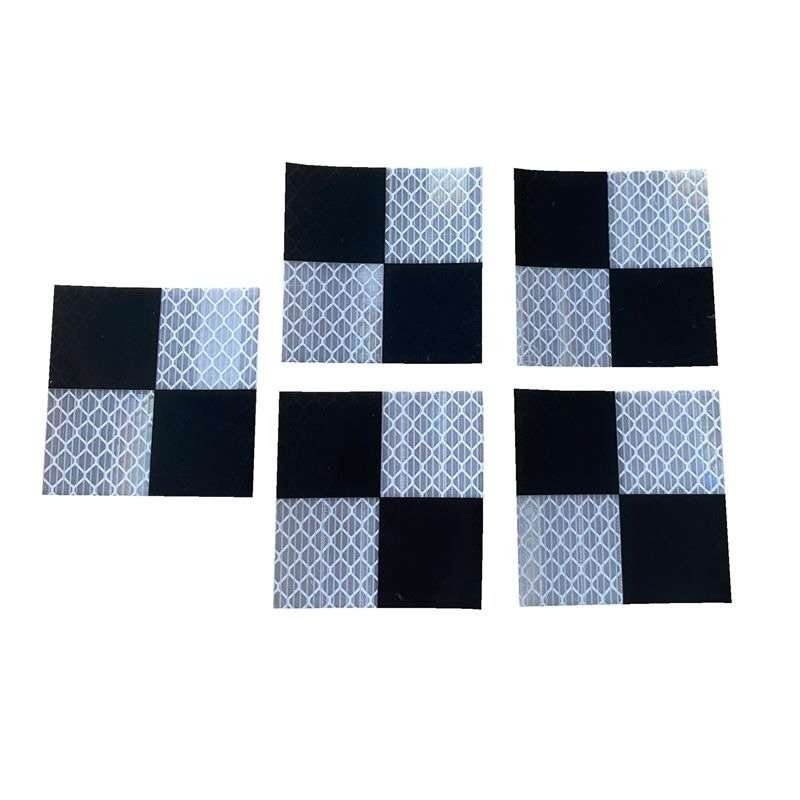

Four-Quadrant Reference Pattern
The checkerboard design uses alternating black and reflective white or silver quadrants to define a central reference point. The additional arrangement below shows the square pieces separately so the pattern and edges are easier to compare. Specify the overall dimensions and confirm that this pattern is suitable for your instrument and measurement method.

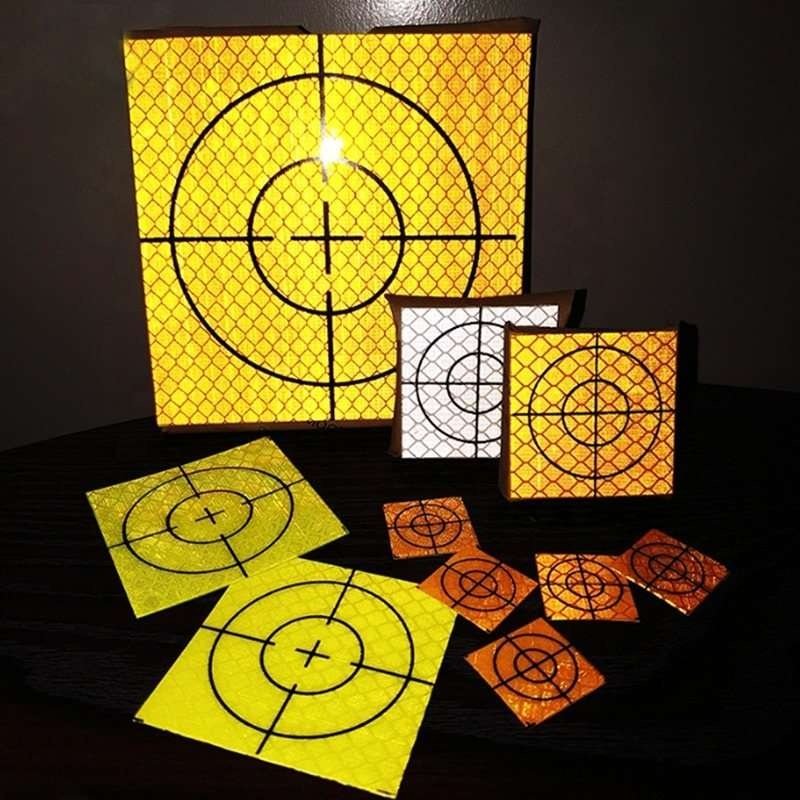

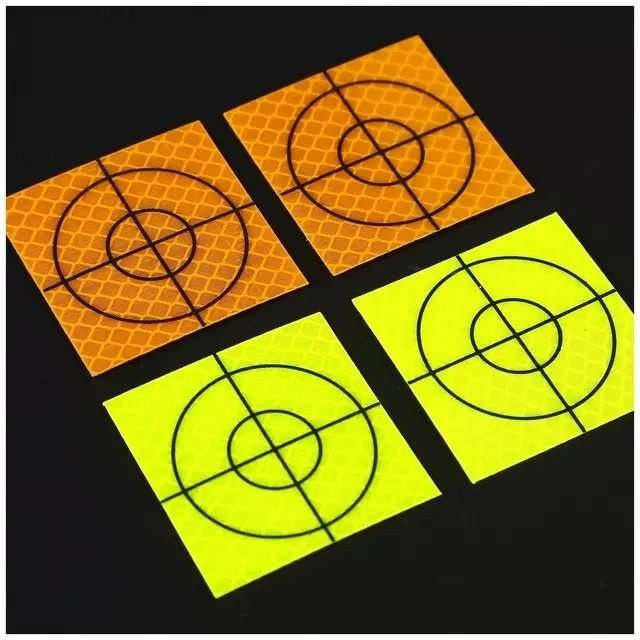

Related Crosshair Pattern Options
The following photographs show alternative crosshair and concentric-circle targets from the same reference material collection. They are separate pattern options, not extra pieces included with the checkerboard target. Select the exact pattern, reflective construction and color needed for the project; different target designs should not be substituted without checking instrument compatibility.

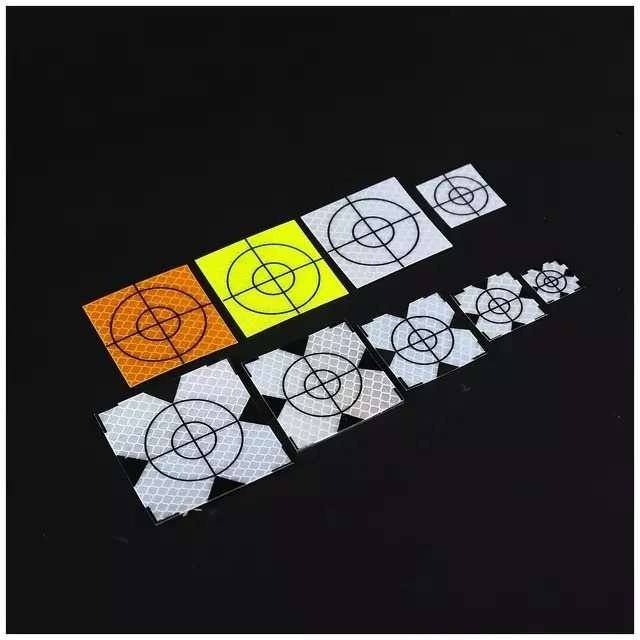

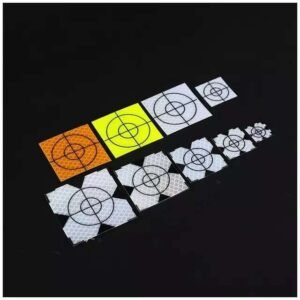

Alternative Sizes and Pack References

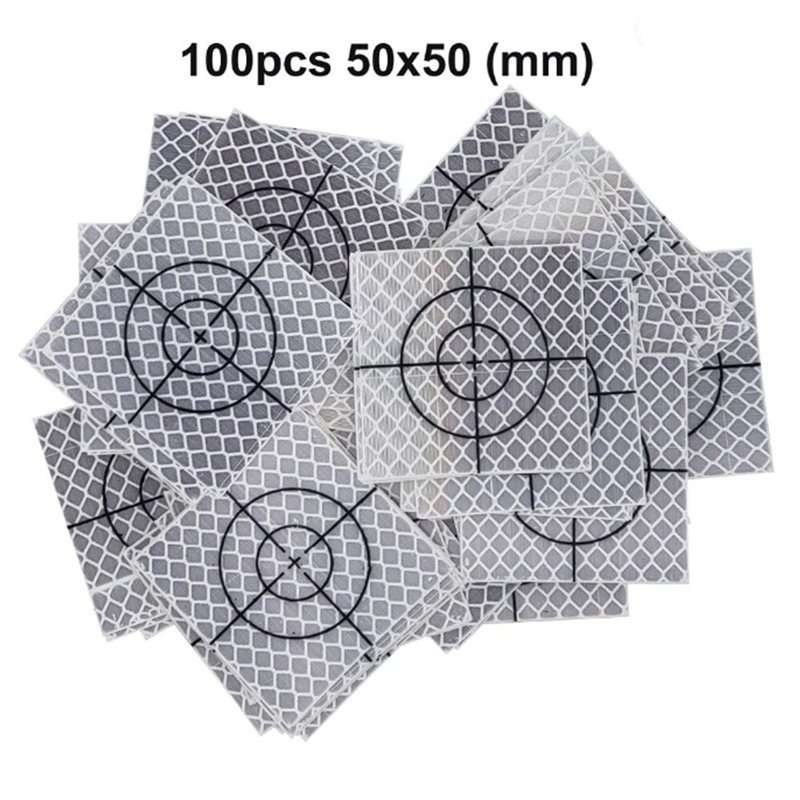

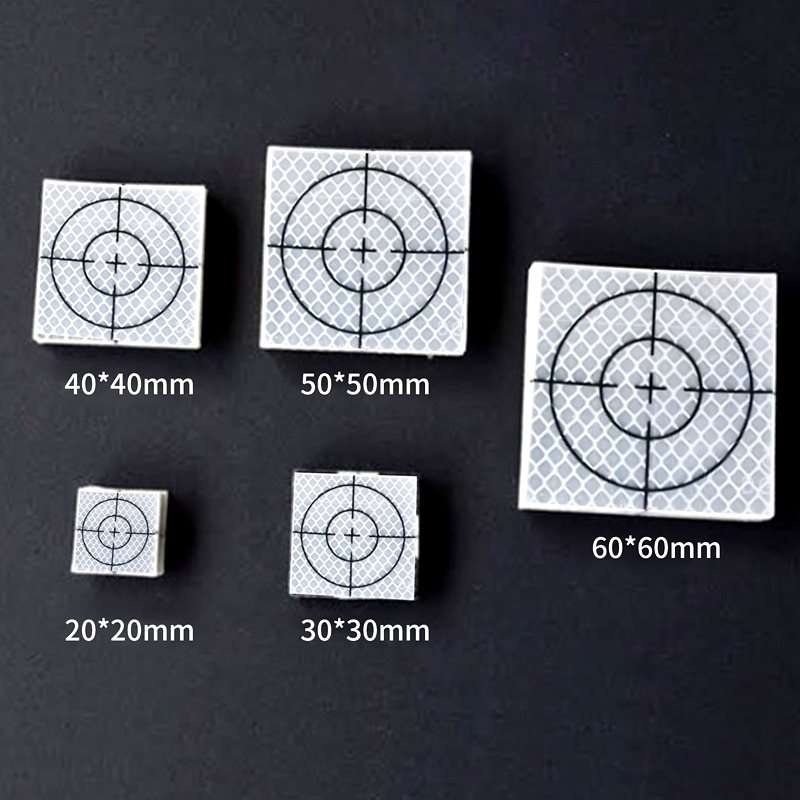

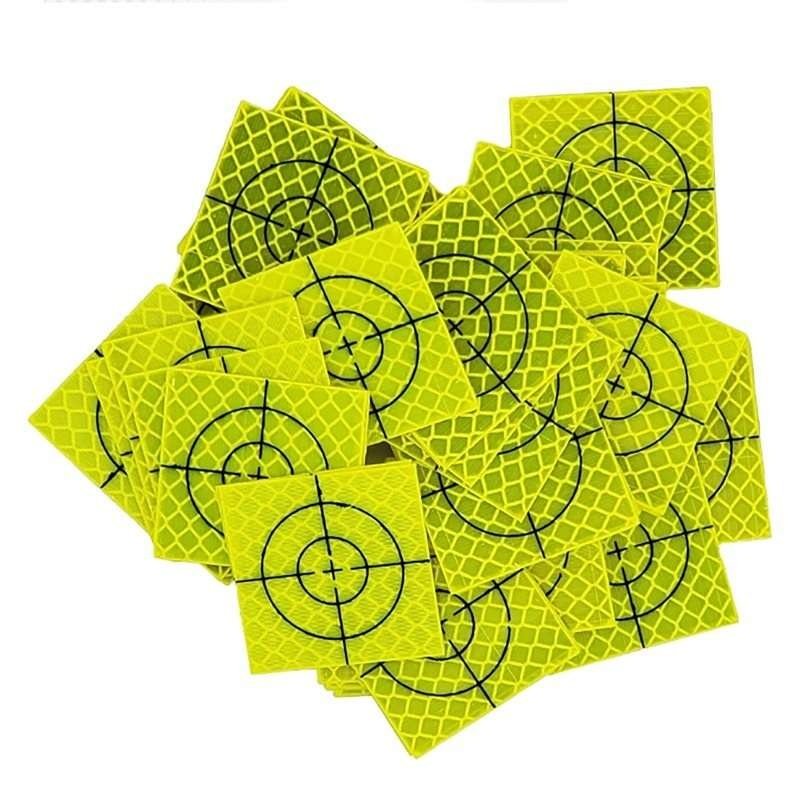

The crosshair examples include yellow pieces, a white 20–60 mm size reference and a white 50 × 50 mm example labeled 100 pieces. These labels refer to the illustrated crosshair options and do not set the dimensions or quantity of the checkerboard version. Provide the required checkerboard size and pack quantity separately.

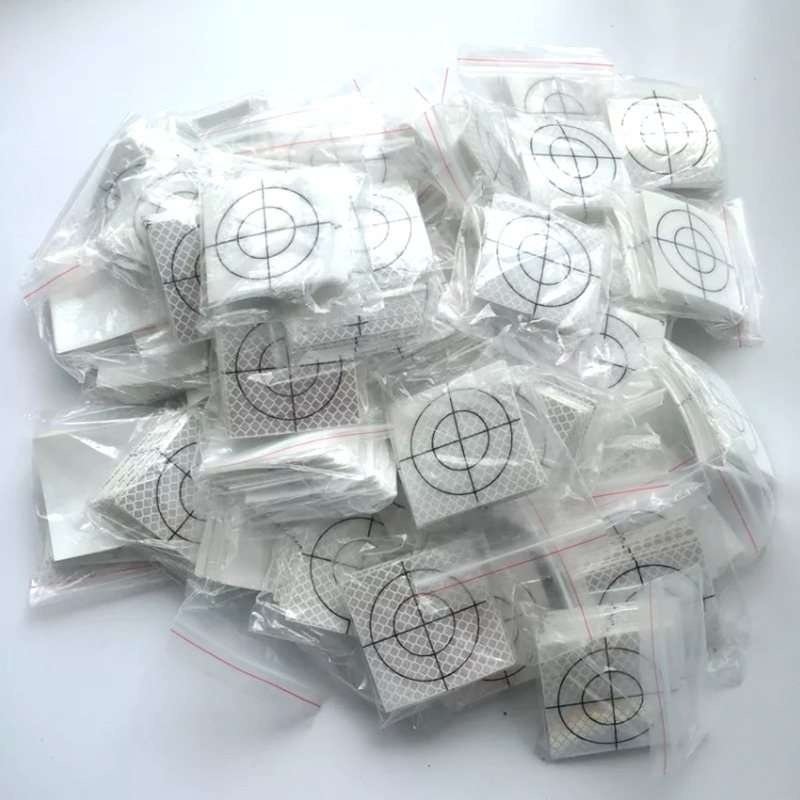

Packing Reference
The bagged crosshair targets illustrate a possible small-piece packing format. Confirm the number of checkerboard targets per bag, any project labeling and the total order quantity. The packing image does not imply that mixed target patterns are supplied together.

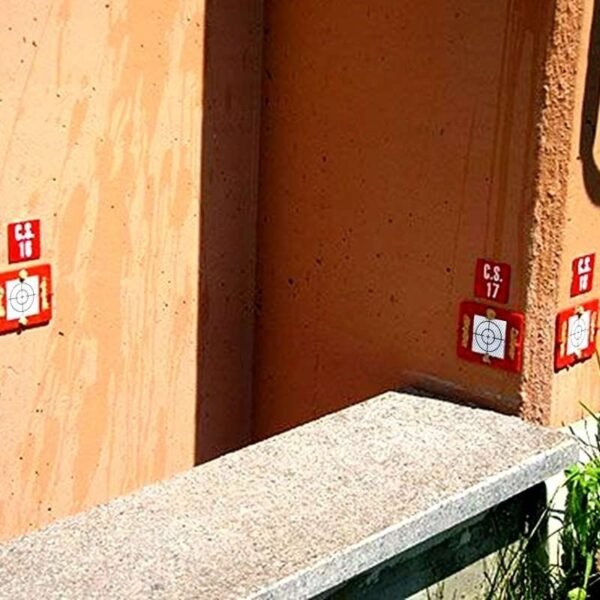

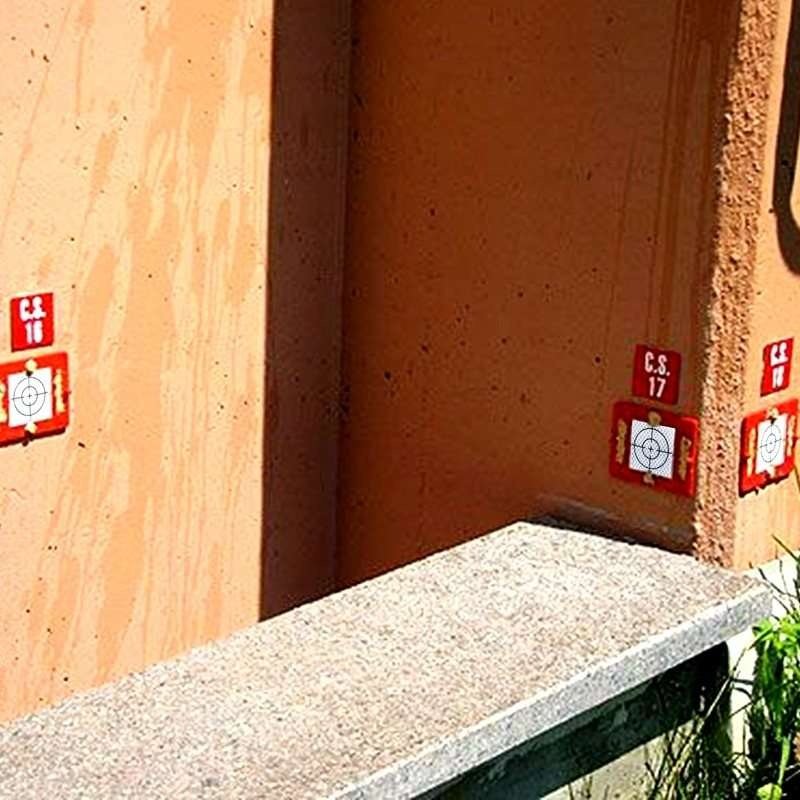

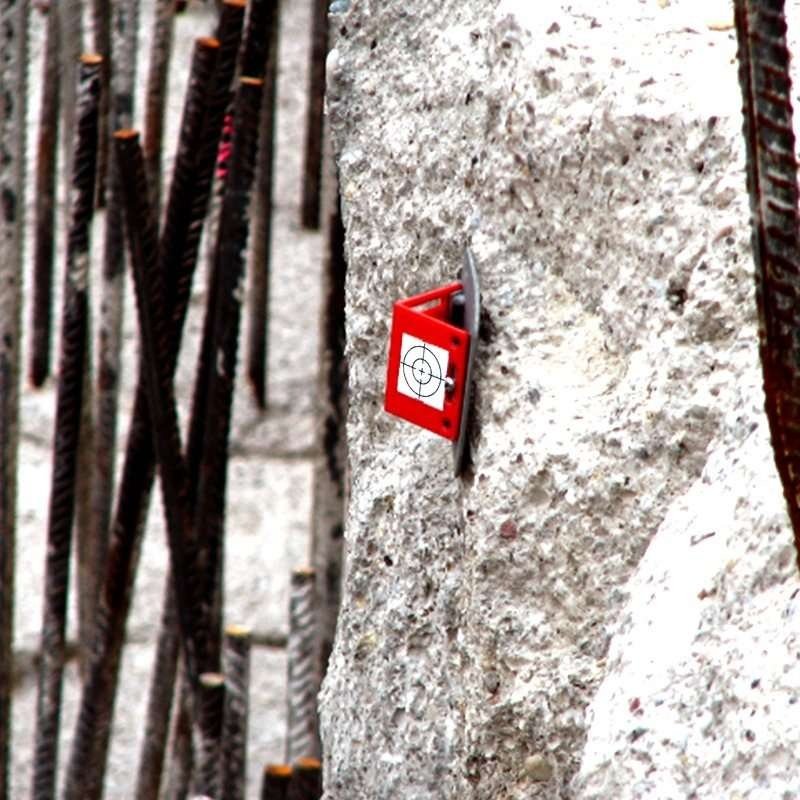

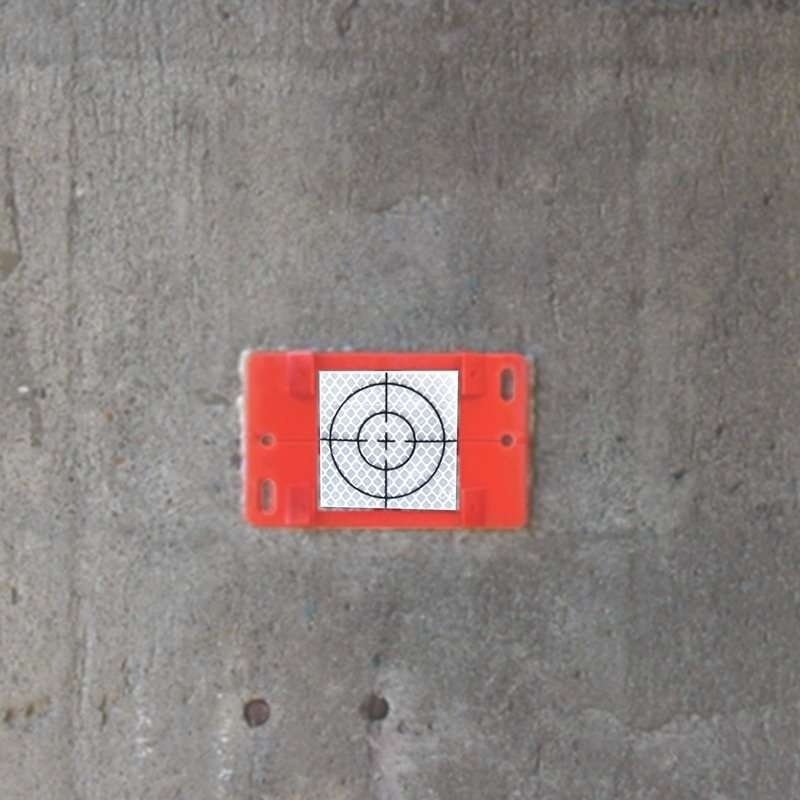

Mounting and Monitoring References
These application photographs show crosshair targets on separate plates and brackets. They illustrate mounting arrangements to discuss when planning reference points. This listing covers checkerboard targets; mounting hardware and the pictured crosshair patterns are separate options. Choose a stable substrate and an orientation that maintains the required line of sight.

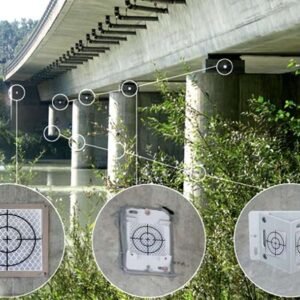

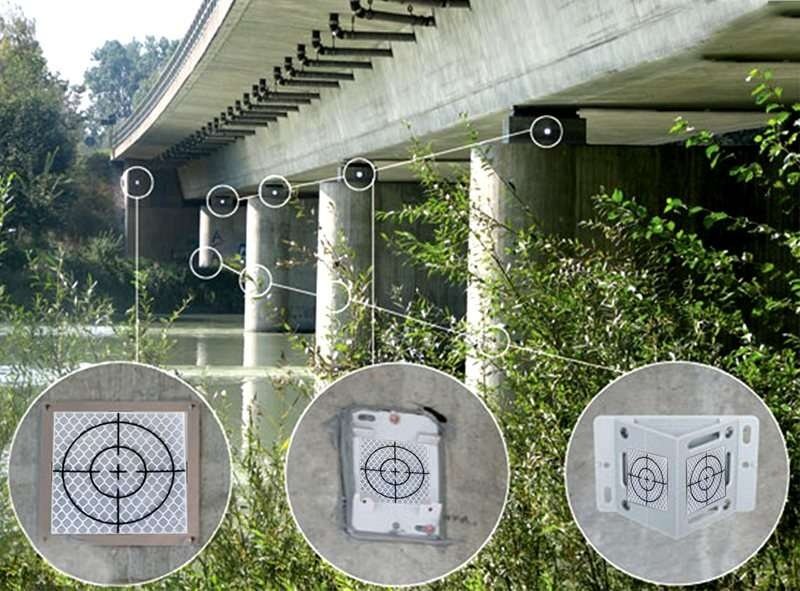

The bridge illustration shows distributed monitoring points as an application reference. It does not represent a project supplied or surveyed by us.
Selection and Ordering
- Specify the four-quadrant checkerboard pattern and overall target dimensions.
- Identify the instrument and required target compatibility.
- Describe the mounting surface and whether a separate plate is required.
- Confirm the quantity per pack and any project identification labels.
- Test a sample under the intended measurement distance and viewing conditions.
Working range and measurement accuracy depend on the instrument, target construction, size, orientation and site conditions. Send these requirements with your delivery destination so that material options, sample arrangements, packing and delivery can be confirmed.
