Product Specifications
Reflective adhesive sign faces for vertical delineator and guidance panels.
| Illustrated size | 100 × 25 cm |
|---|---|
| Colors | Red and white |
| Pattern | Chevron guidance layout |
| Format | Flexible reflective film with release liner |
| Backing | Self-adhesive |
| Application | Compatible delineator and temporary traffic-control panels |
| Supply scope | Sticker face; confirm separate hardware requirements |
| Order requirements | Confirm orientation, final dimensions, reflective grade and surface compatibility |

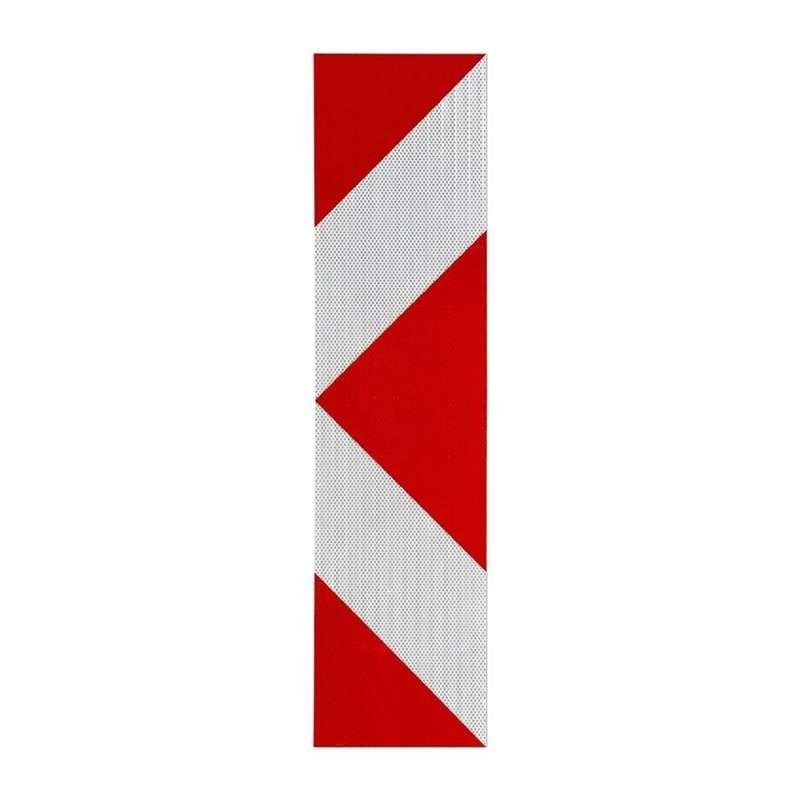

Red and White Chevron Face
The contrasting chevron design forms a vertical guidance panel. Specify the required orientation and layout for your delineator or temporary traffic-control system.

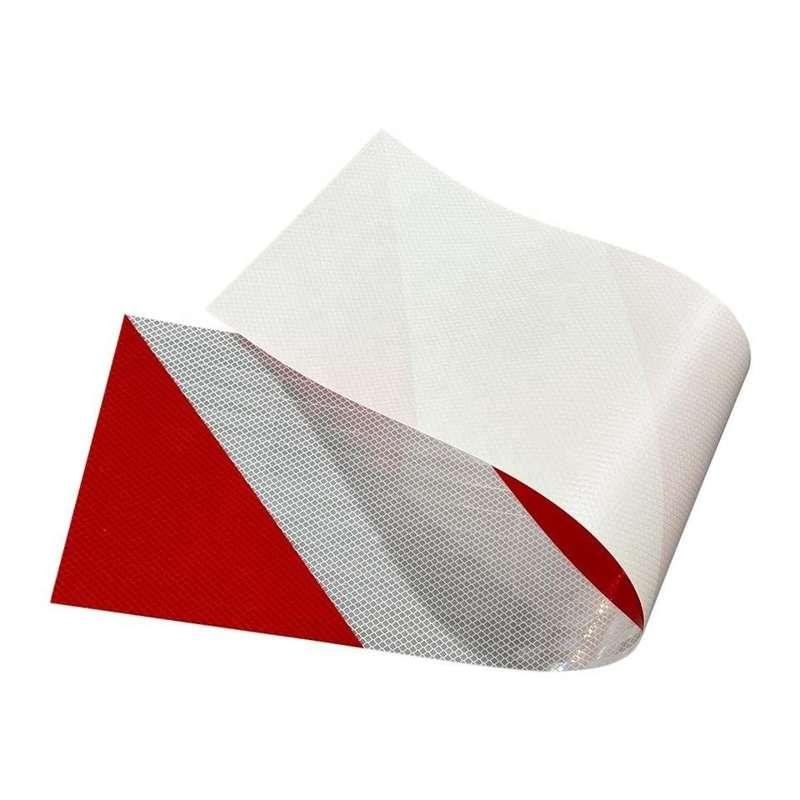

Self-Adhesive Film Construction
The peeled sample shows the flexible film and release liner. Apply to a compatible clean, dry surface and confirm adhesion on the selected panel material. Posts, bases and lamps are separate components unless specified.

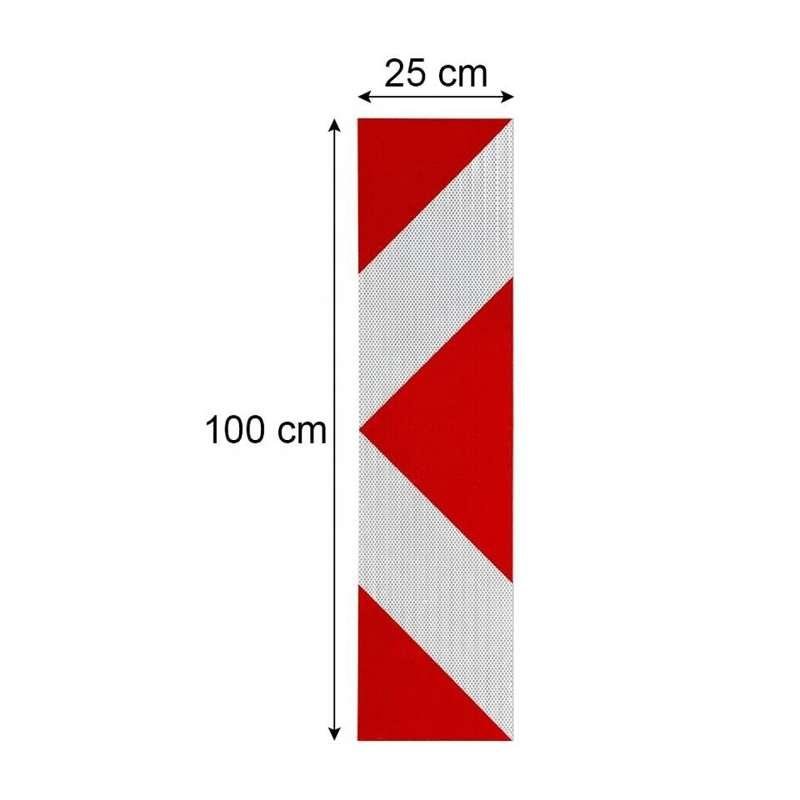

100 × 25 cm Illustrated Format
The dimension diagram shows a 100 cm-high by 25 cm-wide sign face. Confirm final dimensions, corner treatment, reflective grade and the applicable project requirements with your inquiry.
Customization & Ordering
Contact Xingyuan with your required dimensions, color, quantity, application and destination country. We will confirm available options, sample arrangements, packaging and delivery.
For projects with specific performance requirements, confirm the material grade, installation conditions and supporting documentation before ordering.
Barricade Panel Sticker: Reflective and Application Views
The expanded views show the red and white graphic as a separate panel sticker and alongside typical road delineators. The dimension reference identifies a 100 cm high × 25 cm wide format. Confirm the finished size, pattern direction and edge shape to match the panel you intend to cover.

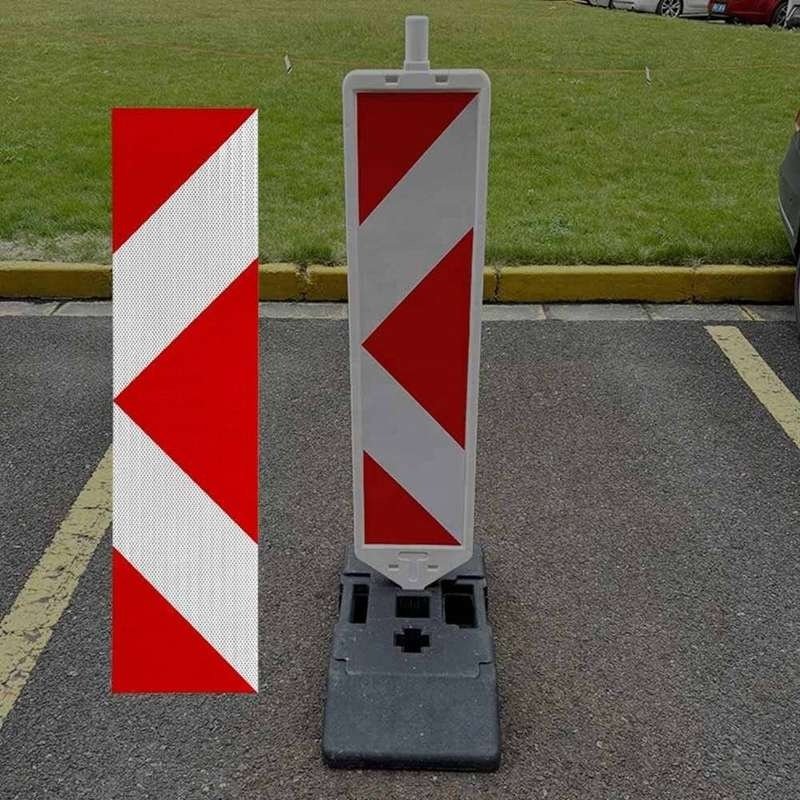

Panel Fit and Reflective Appearance

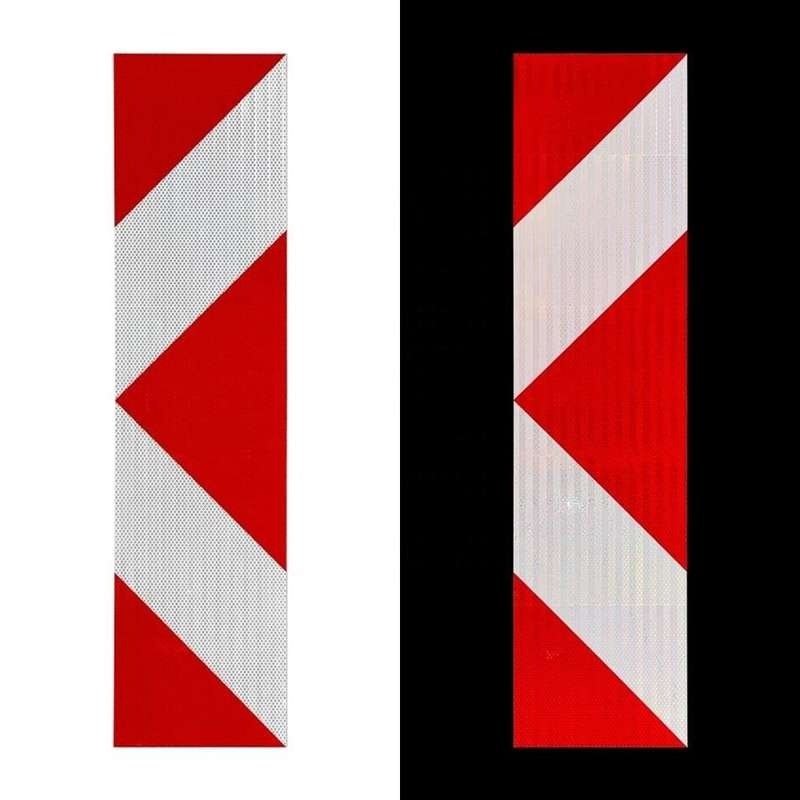

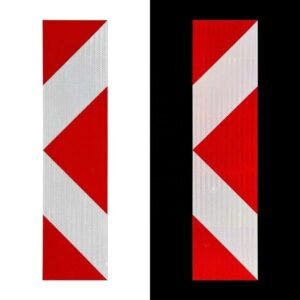

The side-by-side application reference helps distinguish the flexible sticker from the complete delineator. Measure the usable face area, including corner radii and any molded recesses, before specifying a replacement graphic. The illuminated comparison illustrates appearance under incoming light and does not establish a measured brightness value or a fixed visibility distance.

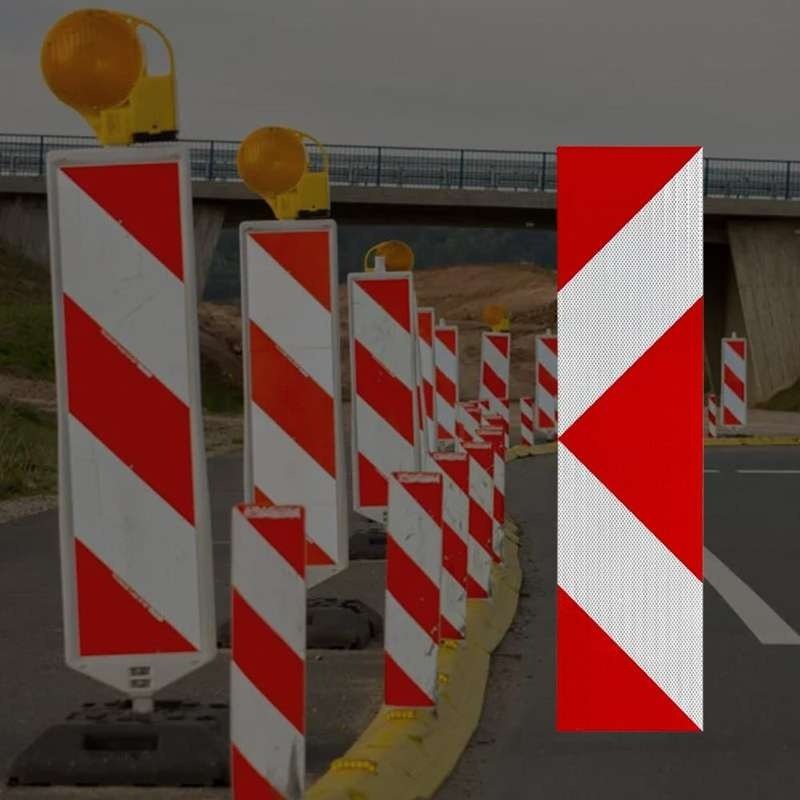

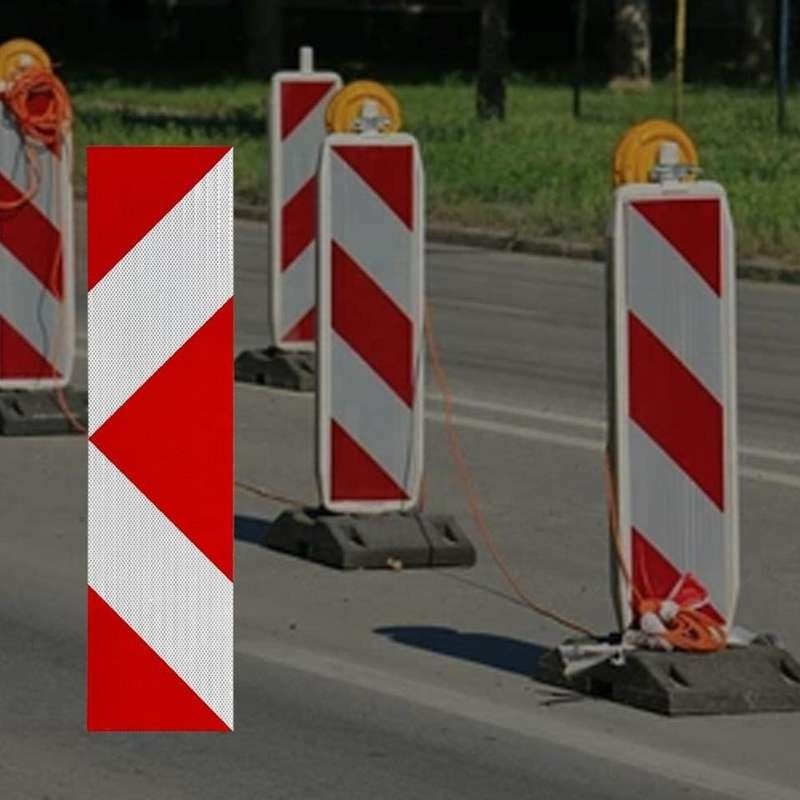

Roadside Layout References
The two road scenes show different arrangements of upright delineators and lamps. They are application references rather than a supplied equipment package or an approved traffic-control layout. Posts, bases, lamps and complete barriers are separate from the sticker material. Confirm the required pattern and reflective grade against the project specification before ordering.
Related Barrier Marking Uses

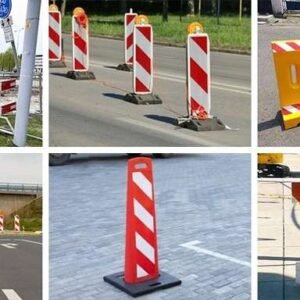

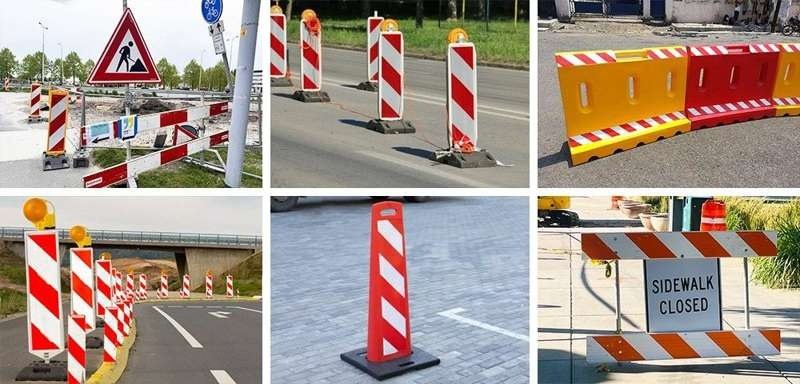

The collage illustrates related uses of reflective markings on traffic-control equipment. Other colors and patterns shown are separate design references, not substitutions for the pictured red and white panel. If custom graphics are needed, provide a dimensioned drawing and identify the mounting surface.
For self-adhesive application, use a compatible clean, dry panel and test adhesion on a representative sample. Confirm the required quantity, supplied piece size, backing, packing and destination in your inquiry. Any service-life or performance requirement should be agreed for the exact material and application conditions rather than inferred from a photograph.
