Product Specifications
Rectangular reflective warning stickers for custom vehicle marking layouts.
| Material | Reflective sheeting |
|---|---|
| Colors | Red and white |
| Listed dimensions | 141 × 564 mm |
| Shape | Rectangle |
| Pattern options | Chevrons and diagonal stripes |
| Printing | UV printing |
| Order requirements | Confirm orientation, material grade and mounting surface |

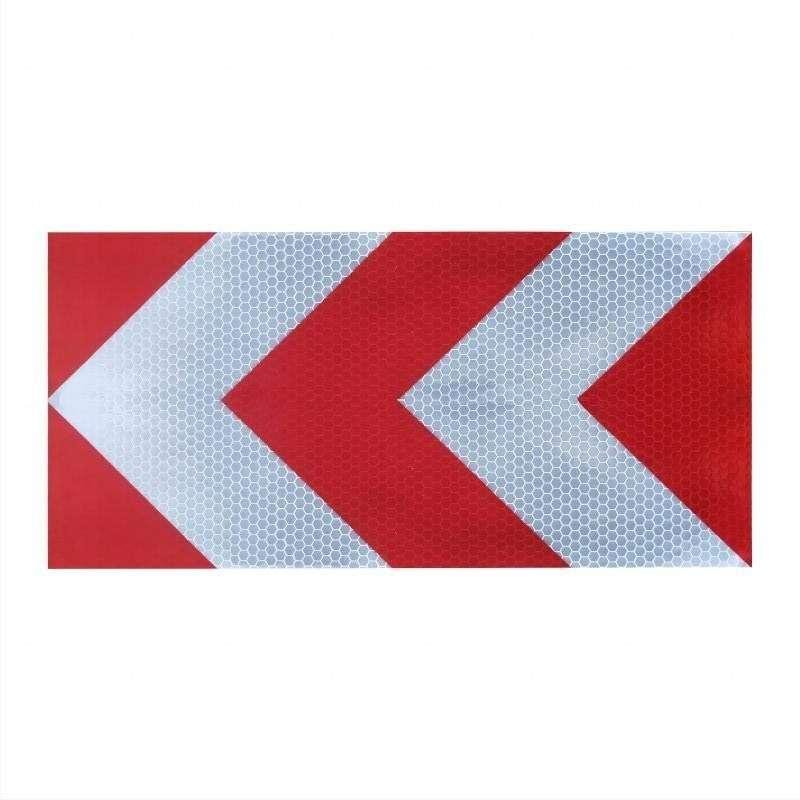

Directional Chevron Layout
The red and white chevrons create a directional marking pattern in a rectangular format. Confirm the required arrow direction and mounting position for your vehicle.
Customization & Ordering
Contact Xingyuan with your required dimensions, color, quantity, application and destination country. We will confirm available options, sample arrangements, packaging and delivery.
For projects with specific performance requirements, confirm the material grade, installation conditions and supporting documentation before ordering.
Red and White Chevron Sticker: Orientation and Order Details

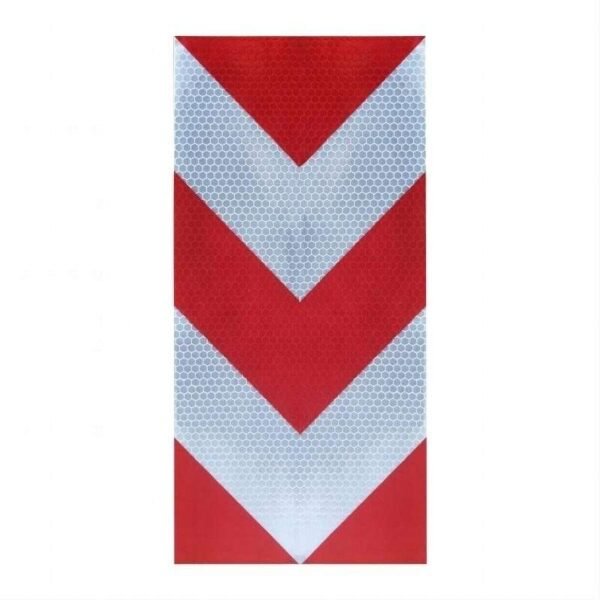

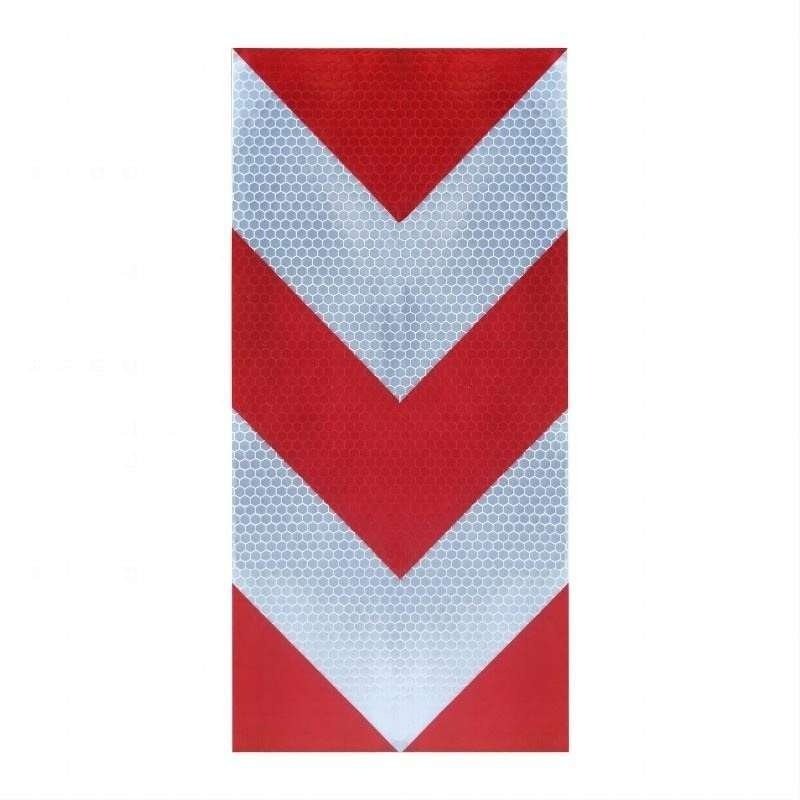

The vertical view complements the horizontal chevron image above, showing the repeated red-and-white pattern and the reflective cell texture. Choose the intended orientation and mounting location when specifying the artwork. A displayed orientation is a product reference rather than an installation rule for every vehicle.
Dimensions and Surface Preparation
The listed size is 141 × 564 mm. Confirm the final dimensions, pattern direction, material grade and number of pieces required. Measure the available mounting area before ordering and check adhesion on the intended surface. Apply to a clean, dry, compatible area, keeping lights, plates, moving parts and required markings clear.
Specification and Documentation
These pictures show the product appearance; they do not prove compliance with DIN 30710 or another marking standard. If your project requires a specific standard, include that requirement in the inquiry so the applicable material and supporting documentation can be confirmed before purchase. Reflected brightness depends on incoming light and viewing angle. Specify whether you need individual pieces or matched sets, along with packaging requirements and the delivery destination, to confirm the order configuration.
