Product Specifications
Flexible PVC prismatic reflective sleeves for fitting compatible traffic cones.
| Material | PVC prismatic reflective sheeting |
|---|---|
| Color Shown | White/silver |
| Format | Curved cone sleeve panels |
| Height Options | 215, 300 and 380 mm; confirm cone fit |
| Application | Traffic cone visibility markings |
| Supply | Sleeves; confirm whether cones are required separately |

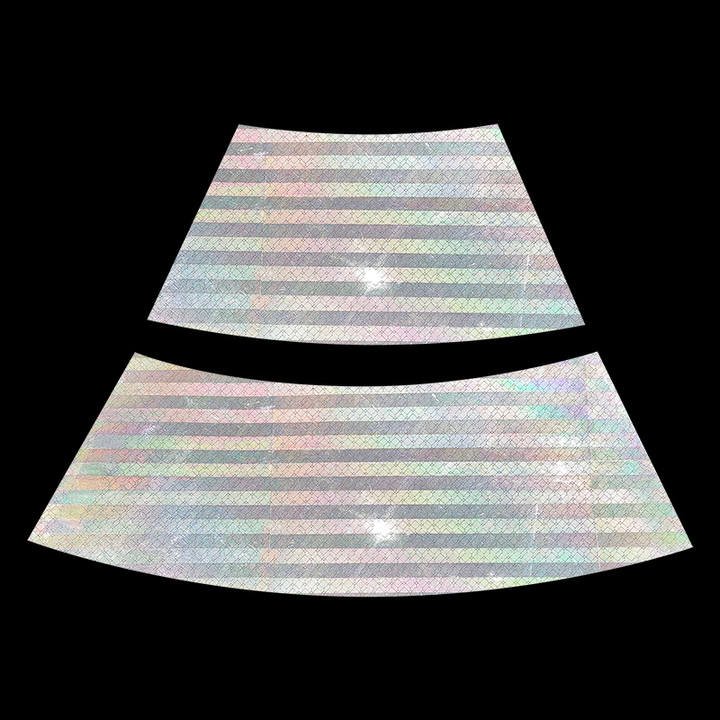

Reflective Sleeve Panels
Curved panels are shown under directional light. Select the upper and lower dimensions to fit your cone profile.

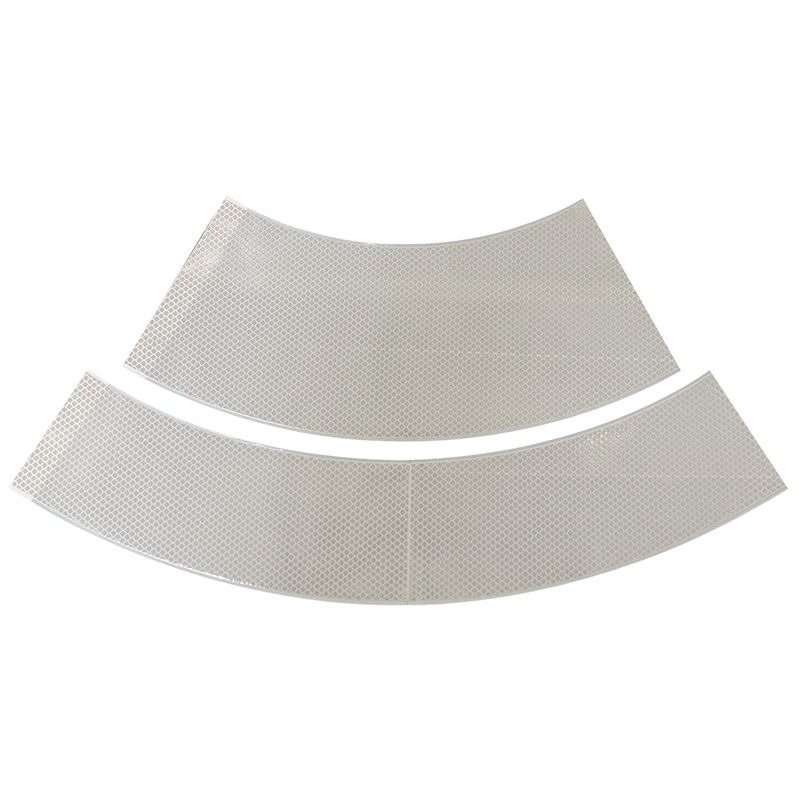

Sleeve Shape Detail

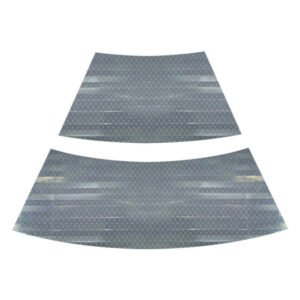

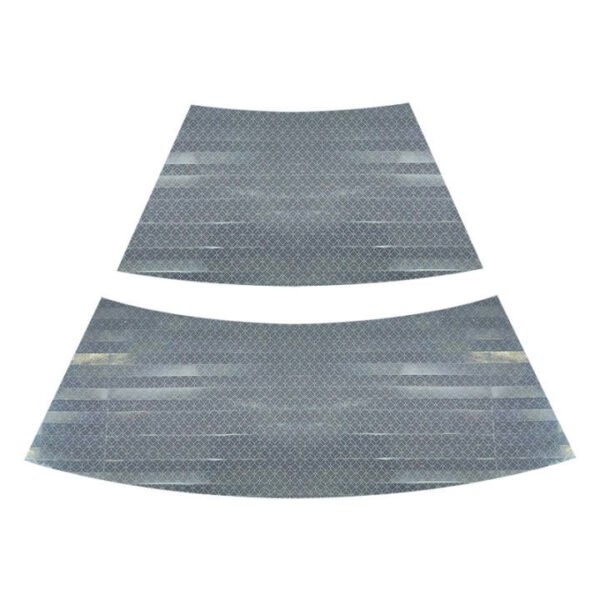

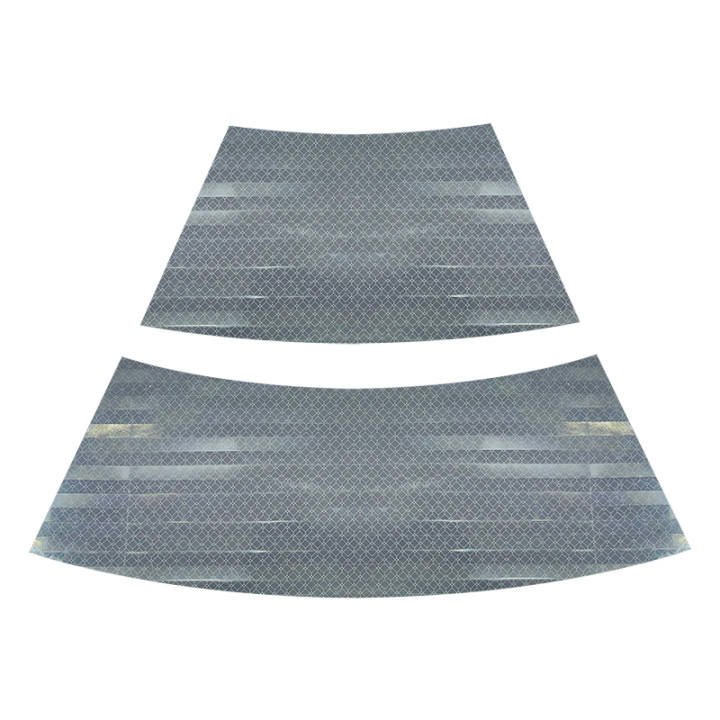

The flat panels show the cut shape before fitting. Send cone measurements or a drawing to confirm compatibility.

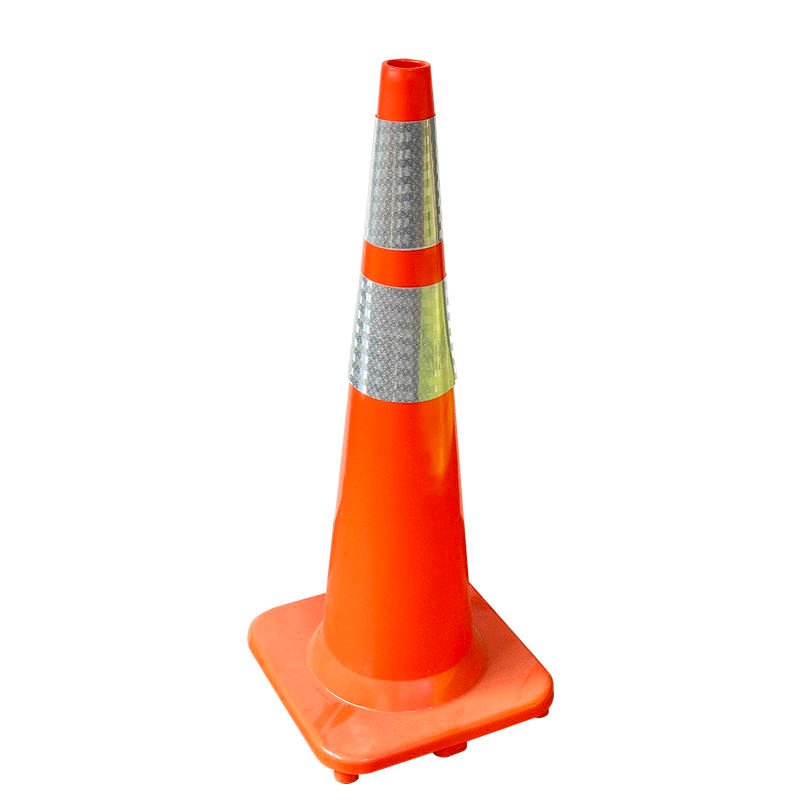

Cone Application Example
The cone image illustrates sleeve placement. Confirm sleeve sizes, attachment method and whether the cone itself is included in your order.

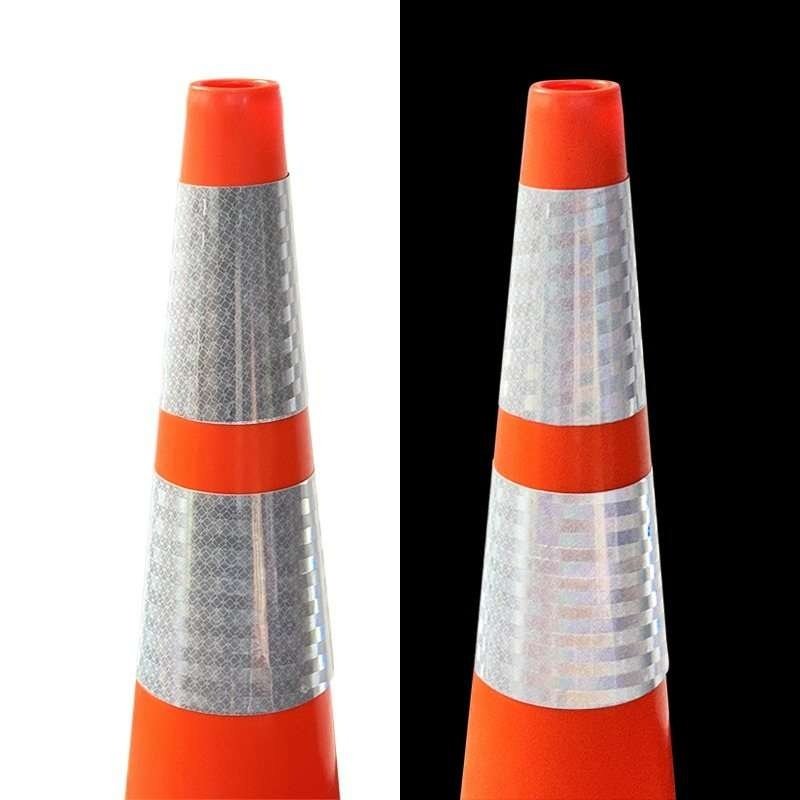

Reflective Bands Fitted to a Cone

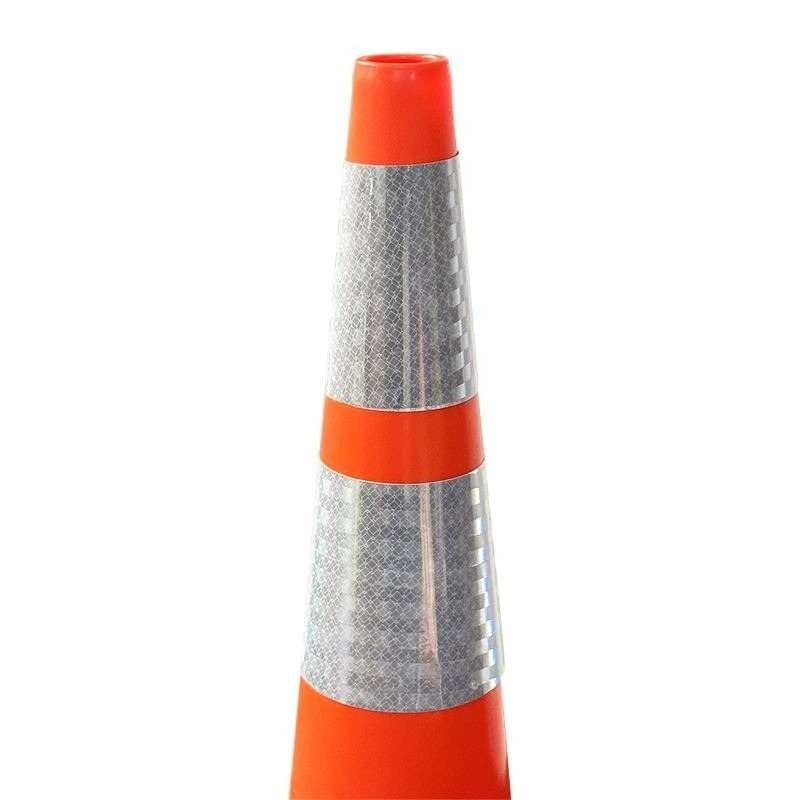

The cone photographs show white or silver reflective bands positioned around a tapered orange body. The sleeve shape must match the cone profile so that the upper and lower edges sit evenly. These are application references for the sleeves; confirm separately if complete cones are required.

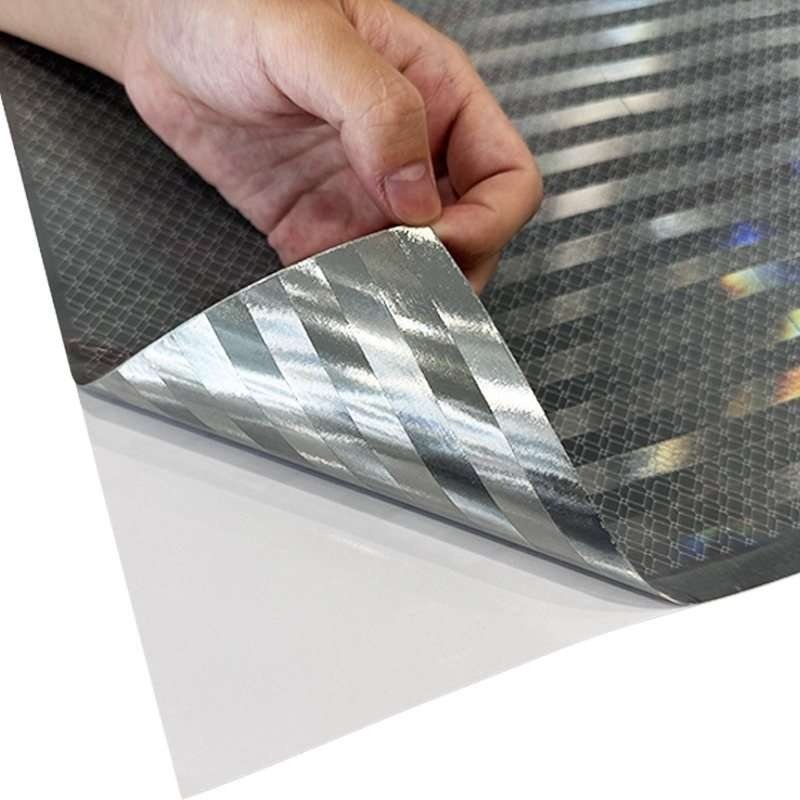

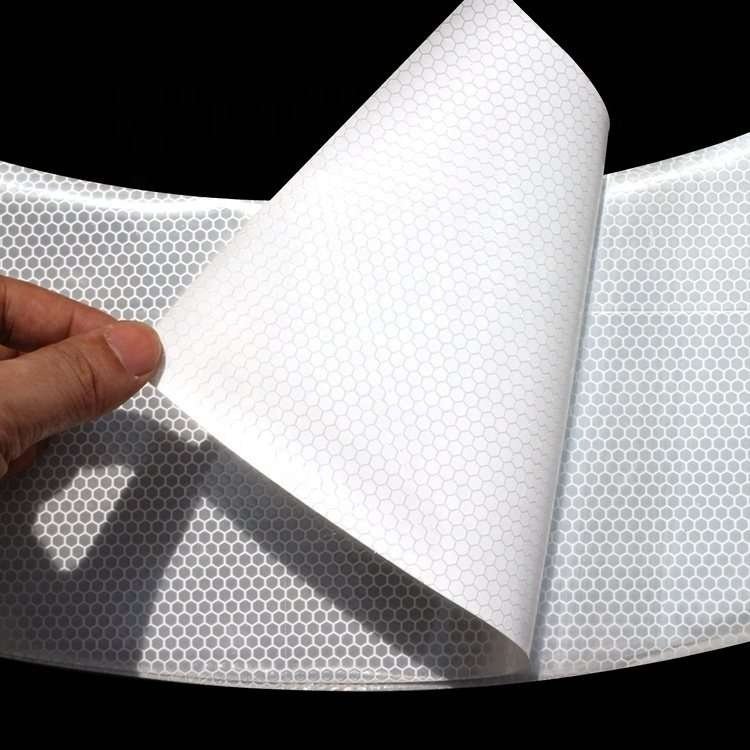

Flexible Material and Backing Detail
The close-up shows the reflective face lifted away from its backing, making the patterned construction easier to inspect. Confirm the supplied backing and attachment method for your cone material. Flexibility alone does not establish that a sleeve fits every cone or adheres equally to every plastic surface.
Measurements Needed for a Good Fit
- Sleeve height: specify the band height and its intended position on the cone.
- Upper and lower circumference: measure the cone at both sleeve edges.
- Profile: provide a drawing, cone model or sample when matching a particular taper.
- Joining allowance: confirm how the sleeve ends meet and the selected attachment method.
- Set quantity: state whether each cone needs one band, two bands or a custom arrangement.
The listed height options include 215, 300 and 380 mm. Confirm the complete cut dimensions and cone fit for the selected option before production; a height alone does not define a tapered sleeve.
Custom Shapes, Colors and Printing

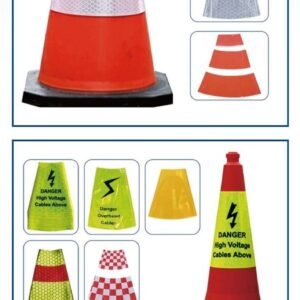

The reference panel below shows sleeve shapes, color options and printed warning designs. These are options to discuss for a separate specification, not all included in a standard white sleeve set. Provide the required color, dimensions, material thickness and artwork when requesting a custom version.
Sample Fitting and Use
Trial the sleeve on the actual cone before ordering a large quantity. Check that the panel follows the taper without wrinkles, the edges meet as intended and the fixing method suits the surface. Clean and prepare the cone using a method compatible with its material and the selected adhesive or attachment system.
Reflective sleeves need incident light to show their reflective effect. The ordinary-light and illuminated photographs illustrate appearance, not a measured performance rating. For a specified roadwork application, confirm the required reflective material class and the finished cone requirements separately.
Common Questions
Is the traffic cone included?
This listing is for reflective sleeves. Complete-cone supply must be specified separately.
Can the sleeve be printed?
Send the warning text, artwork and color requirements so that a suitable construction and printing process can be reviewed.
Can it replace an existing damaged band?
Provide the old sleeve dimensions and cone details. Confirm surface condition and fitting method before replacement.
Customization & Ordering
Send a cone drawing or model, sleeve dimensions, number of bands per cone, quantity, required reflective specification and delivery destination. Include artwork for printed versions. We will confirm sample fitting, attachment details, packing and delivery for the agreed design.
Traffic Cone Sleeves: Additional Cut Shapes and Surface Patterns

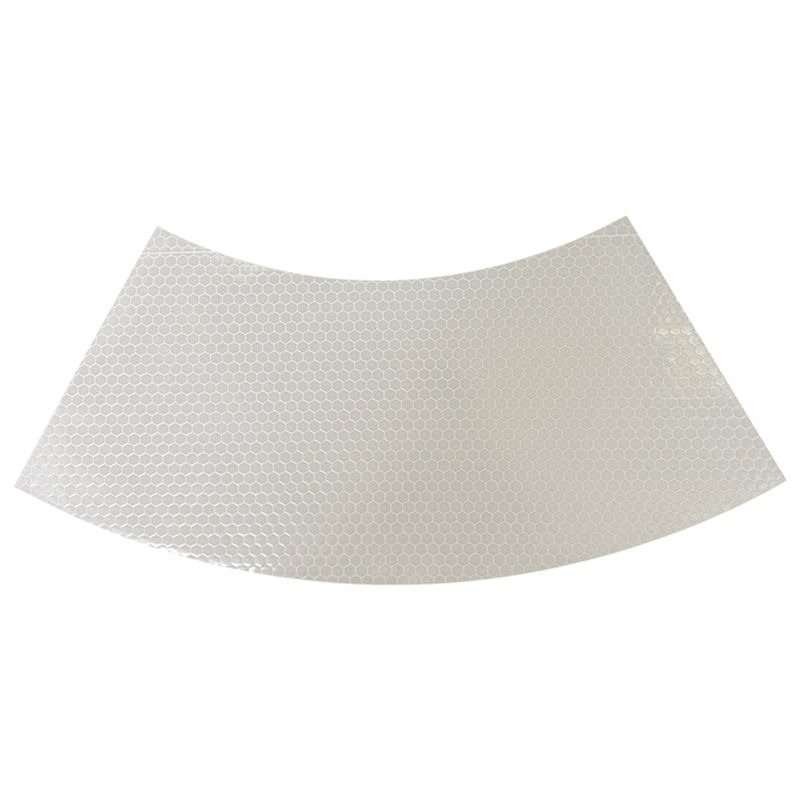

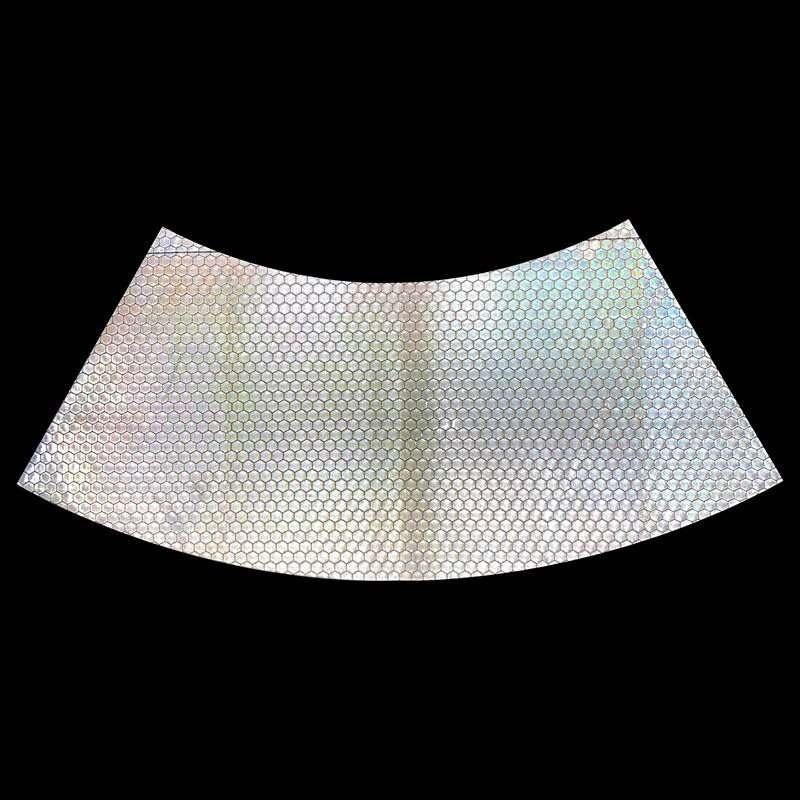

These additional photographs show white reflective sleeve variants with different cell patterns. The curved upper and lower edges follow a tapered cone profile. Select the required construction and shape rather than assuming every pictured surface pattern represents the same material grade.

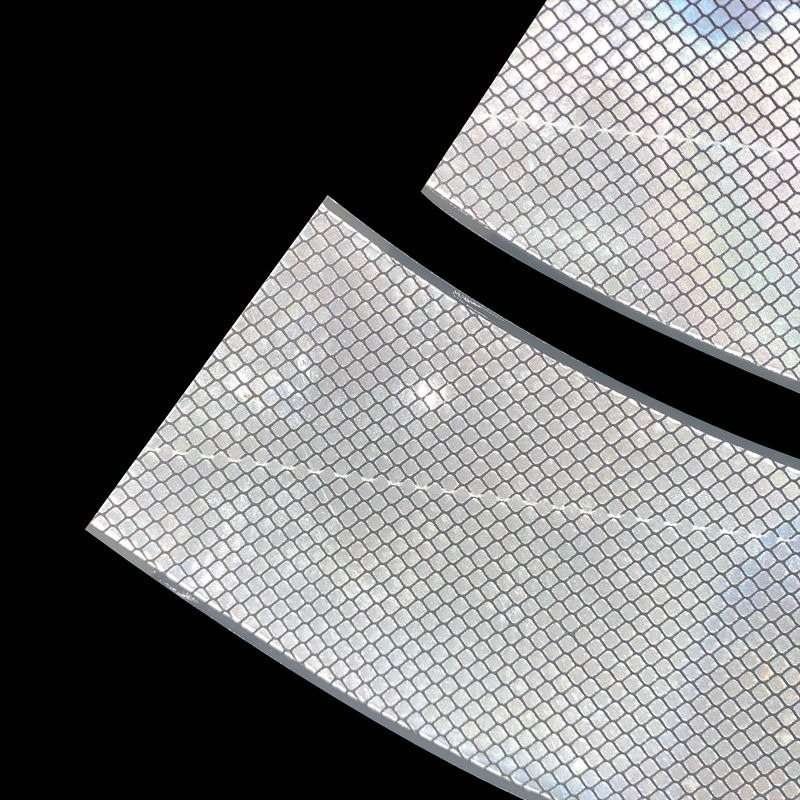

Cell Pattern and Edge Detail

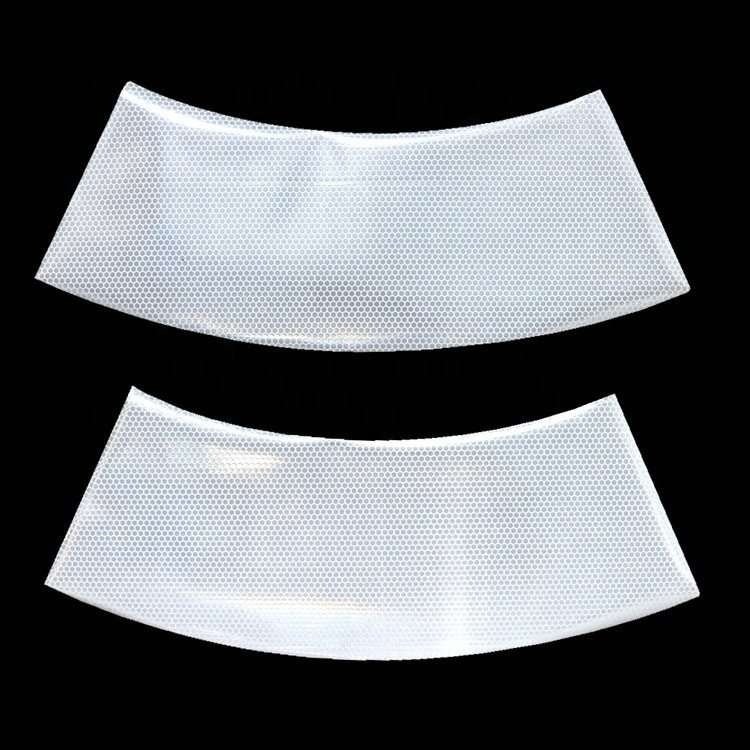

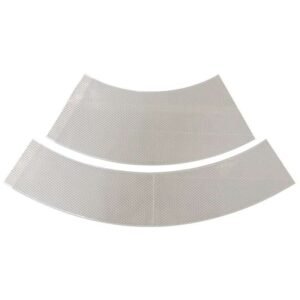

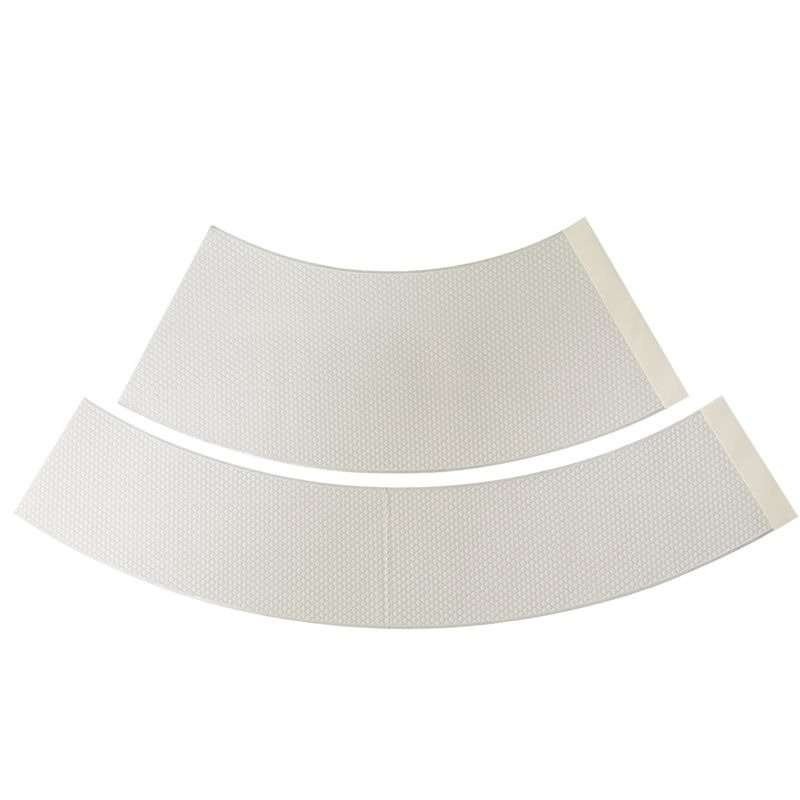

The close-up shows the repeating reflective cells, while the paired pieces show an edge margin on the pictured construction. Confirm the joining or fixing method for the chosen version. The images alone do not establish an adhesive specification or compatibility with every cone material.
The single-piece views compare normal and directed-light appearance. Reflection depends on an incoming light source and viewing geometry; the apparent brightness in a photograph is not a performance measurement.
Dimensions and Fitted Appearance

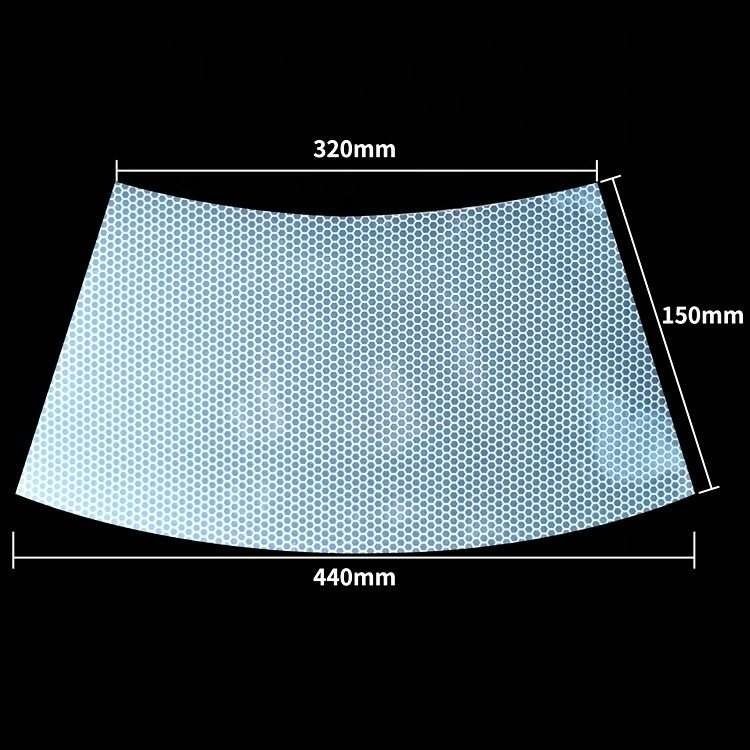

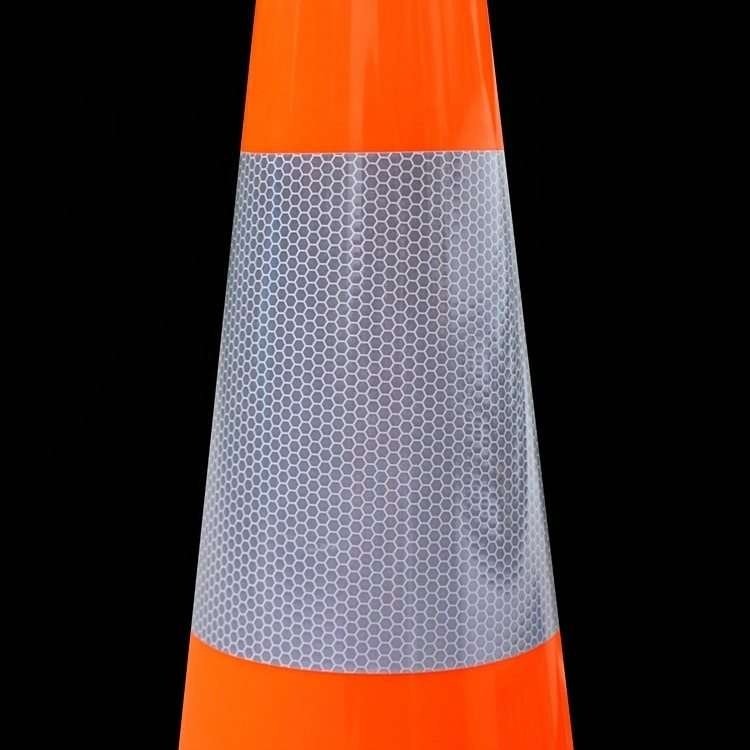

The illustrated sample labels an upper span of 320 mm, lower span of 440 mm and side height of 150 mm. Confirm how these dimensions are measured and match them to your cone before ordering. They refer to the pictured variant, not all sleeve formats on this page. The fitted orange cone is an application reference; a complete cone is not automatically included.

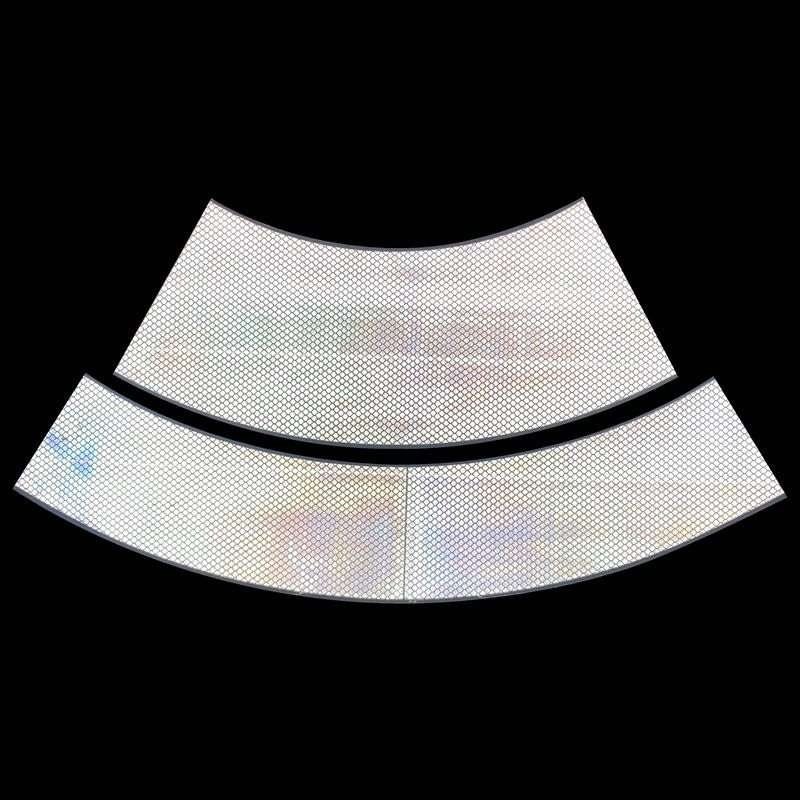

Material Flexibility and Formed Pair
The bent material and formed pair show the sleeve face and reverse. Send the cone profile, required upper and lower sleeve dimensions, material requirements and quantity with your inquiry. A drawing or sample can help confirm fit, overlap and the final assembly method.
