Product Specifications
Orange PVC microprismatic reflective vinyl with self-adhesive backing for traffic signs and reflective labels.
| Material | PVC |
|---|---|
| Color | Orange |
| Construction | Microprismatic |
| Backing | Self-adhesive |
| Dimensions | Confirm roll width and length |
| Applications | Traffic signs and reflective labels |

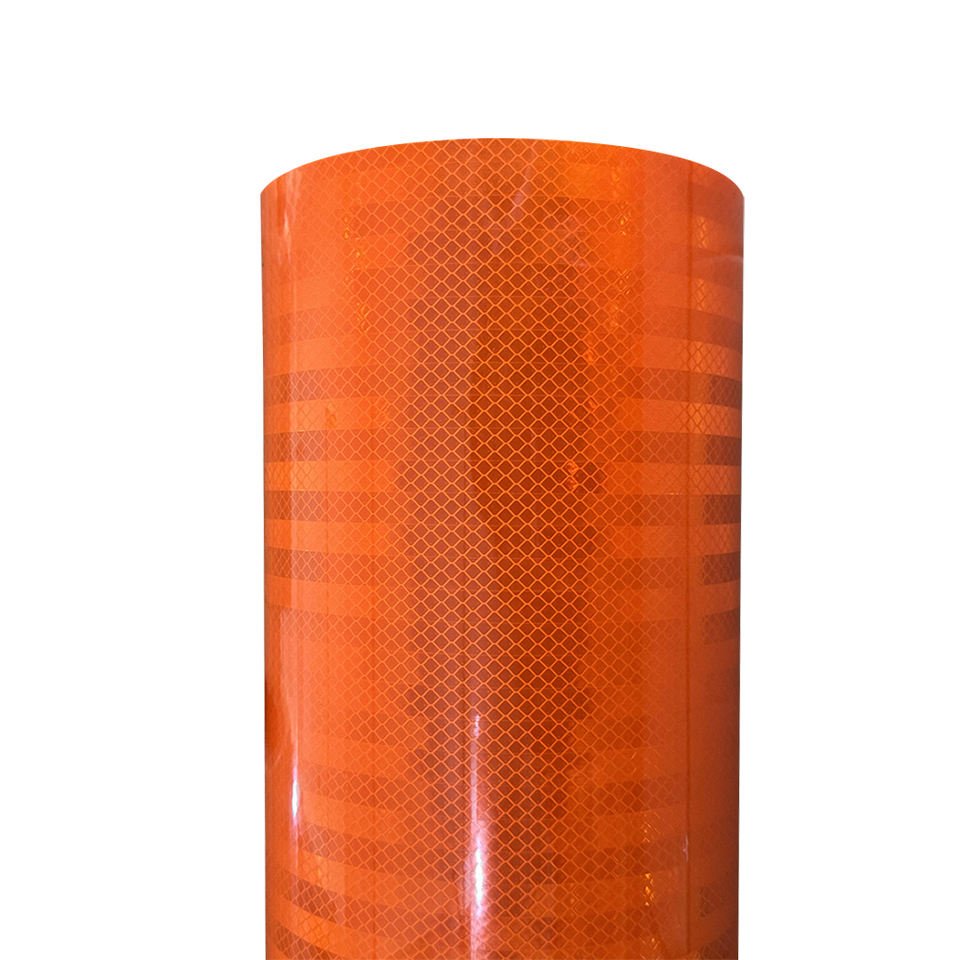

Orange Reflective Roll
Roll material can be cut into sign panels, strips and labels. Send your required dimensions and quantity.

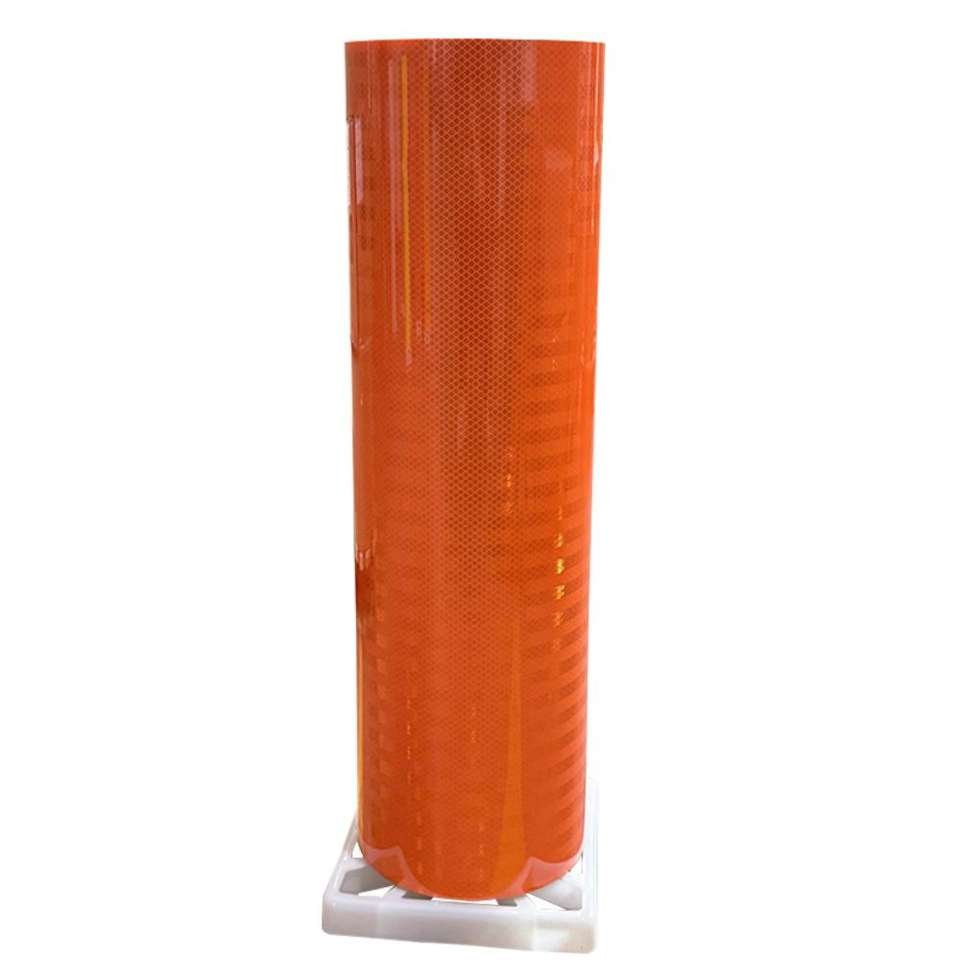

Face and Backing
The opened roll shows the reflective face and backing. Confirm adhesion and printing compatibility with a sample.

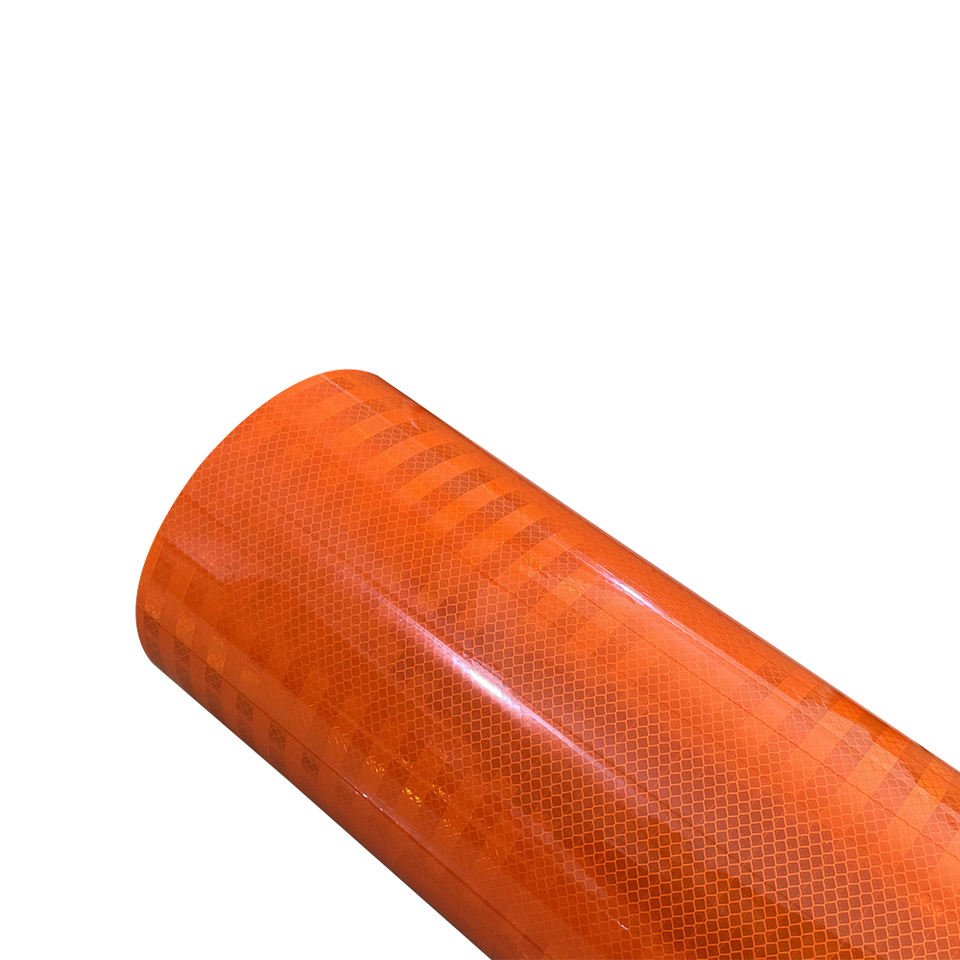

Prismatic Surface Detail
The close-up shows the orange reflective pattern. Confirm the reflective grade required for your application.
Customization & Ordering
Contact Xingyuan with your required dimensions, color, quantity, application and destination country. We will confirm available options, sample arrangements, packaging and delivery.

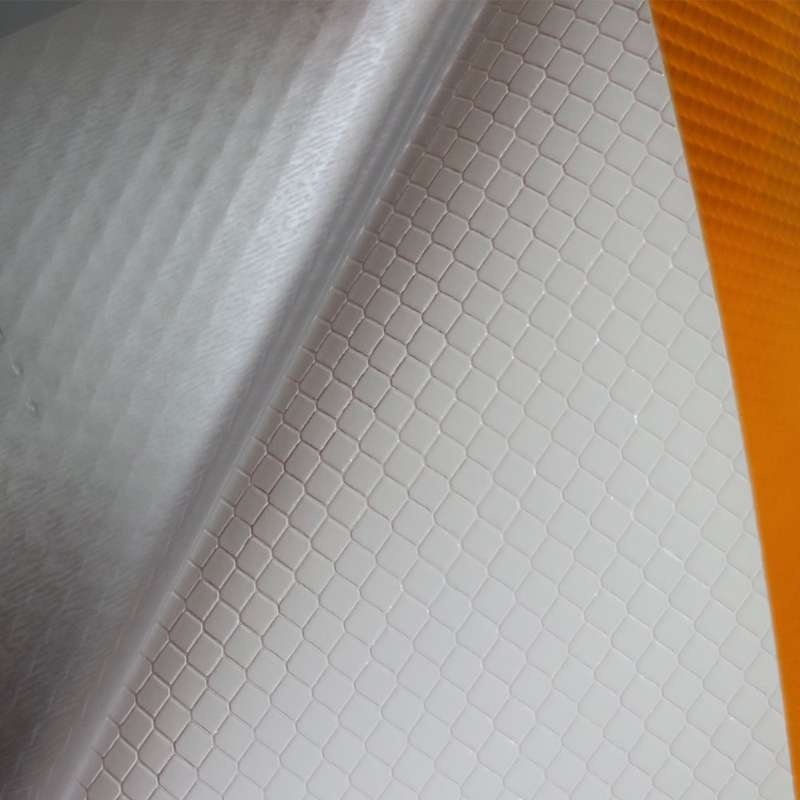

Surface and Backing Details
The close-up photographs show the orange reflective face and the reverse-side structure. These views help you assess the appearance and handling of the material before selecting a sample for your sign or label project.

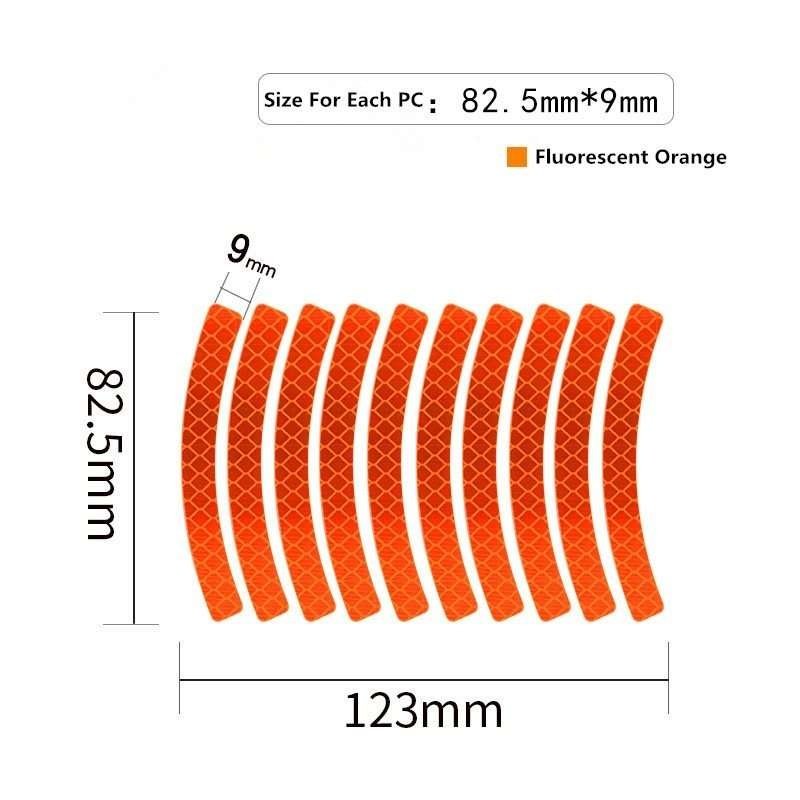

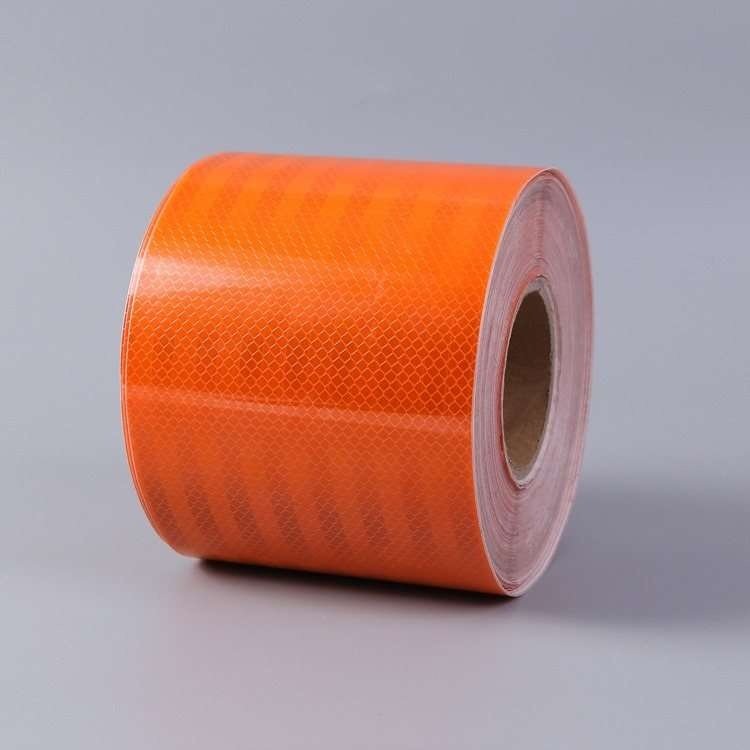

Narrow Rolls and Die-Cut Options
The narrow roll illustrates a slitting option for strip applications. The curved pieces illustrate a separate die-cut format, rather than items included with every roll. The diagram labels each curved piece as 82.5 mm by 9 mm, with a 123 mm-wide illustrated layout. Confirm the final drawing, spacing and quantity for a converted order.
Specify the Material for Your Project
This orange self-adhesive PVC film is intended for conversion into traffic-sign faces, reflective strips and labels. Choose the reflective grade and finished construction for the application, then confirm the roll width and length in the quotation. Available roll dimensions should be agreed for the selected material rather than inferred from the photographs.
- For sign panels: send the panel size, substrate, artwork and required reflective specification.
- For narrow strips: state the strip width, roll length and number of rolls.
- For cut shapes: provide a dimensioned drawing, corner details and the required pieces per sheet or roll.
- For color matching: compare a physical sample under the intended lighting before approving production.
Printing and Application
Screen printing and UV printing are listed as processing options. Confirm the ink system, curing conditions and finished appearance on a sample. A printed design can change the visible reflective area, so evaluate the completed design rather than the unprinted film alone.
Apply the pressure-sensitive backing to a clean, dry, compatible surface. Check adhesion on the actual substrate before a full installation. Position the material carefully, remove the liner progressively and press evenly without stretching the film. Confirm the recommended application conditions for your selected grade.
Frequently Asked Questions
Are the curved stickers supplied with a roll?
No. They illustrate a converting option that must be specified separately.
Can the roll be supplied to a particular size?
Send your required width, length and quantity so the available slitting and supply format can be confirmed.
What should I confirm for a regulated sign?
Identify the required standard, color and reflective grade, and request documentation for the exact material. The product photographs are visual references, not compliance certificates.
For projects with specific performance requirements, confirm the material grade, installation conditions and supporting documentation before ordering.
