Product Specifications

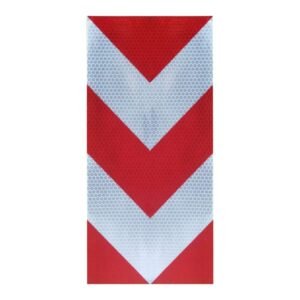

Red and white chevron reflective PVC film for marking farming, forestry and other compatible vehicles.
| Material | Reflective PVC |
|---|---|
| Pattern | Red and white chevrons |
| Listed Width Options | 141 and 282 mm; confirm order size |
| Application | Vehicle warning markings |
| Compliance | Confirm any required standard and documentation before ordering |

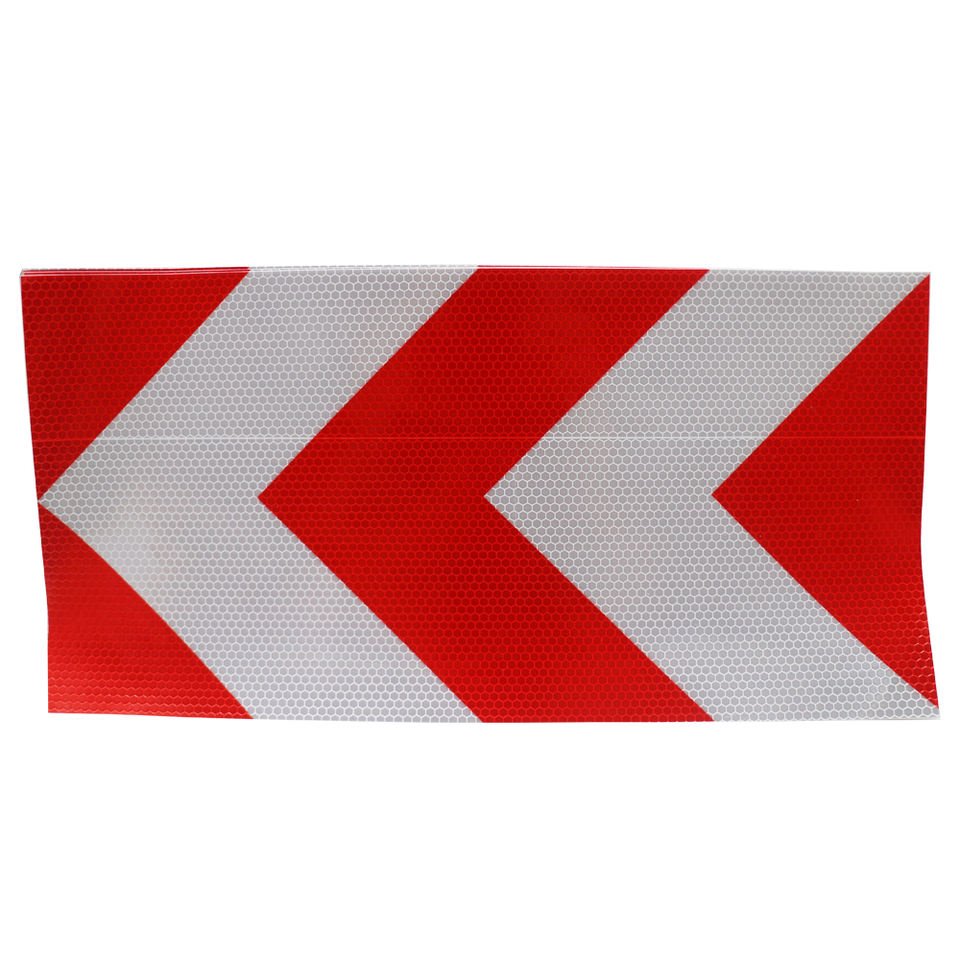

Chevron Marking Panel
Alternating red and white chevrons provide a directional warning pattern. Confirm stripe orientation, dimensions and application position.

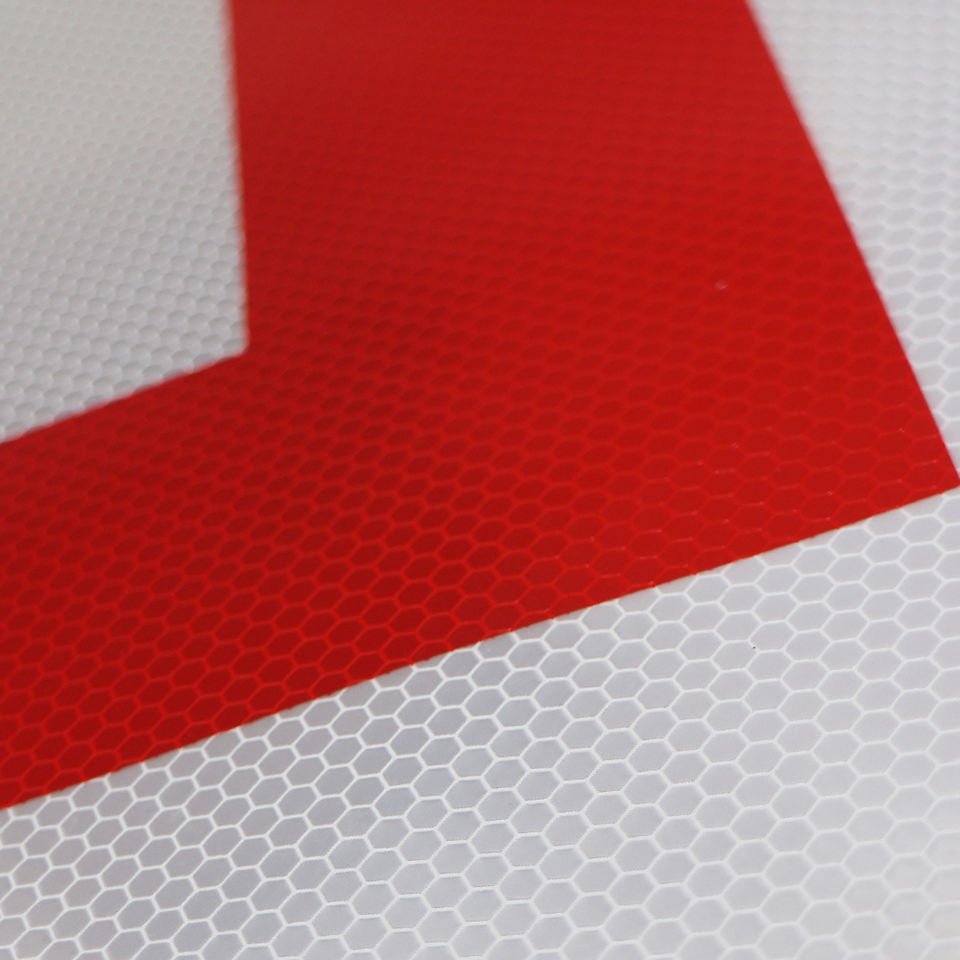

Reflective Surface Detail
The close-up shows the red and white reflective surface. Confirm compatibility with the vehicle body and the required reflective specification.
Customization & Ordering
Contact Xingyuan with your required dimensions, color, quantity, application and destination country. We will confirm available options, sample arrangements, packaging and delivery.
Chevron Layout and Panel Views

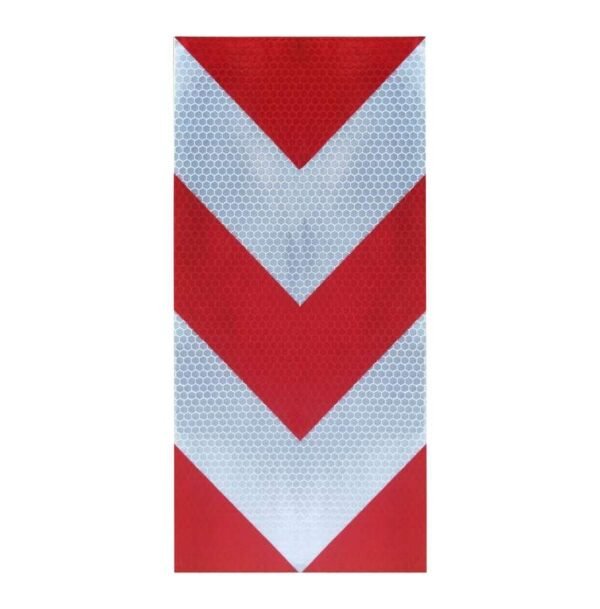

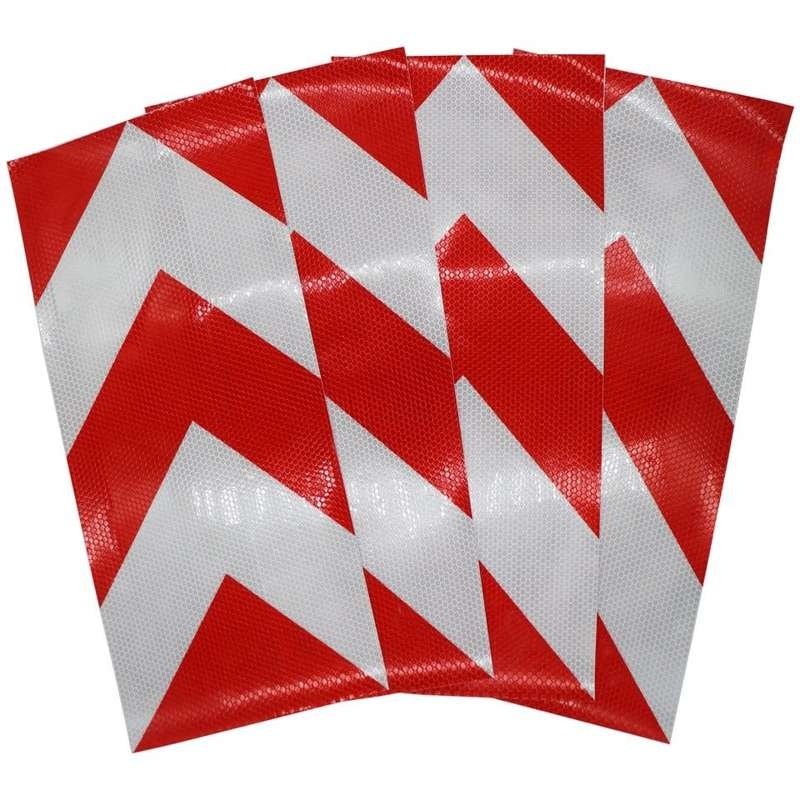

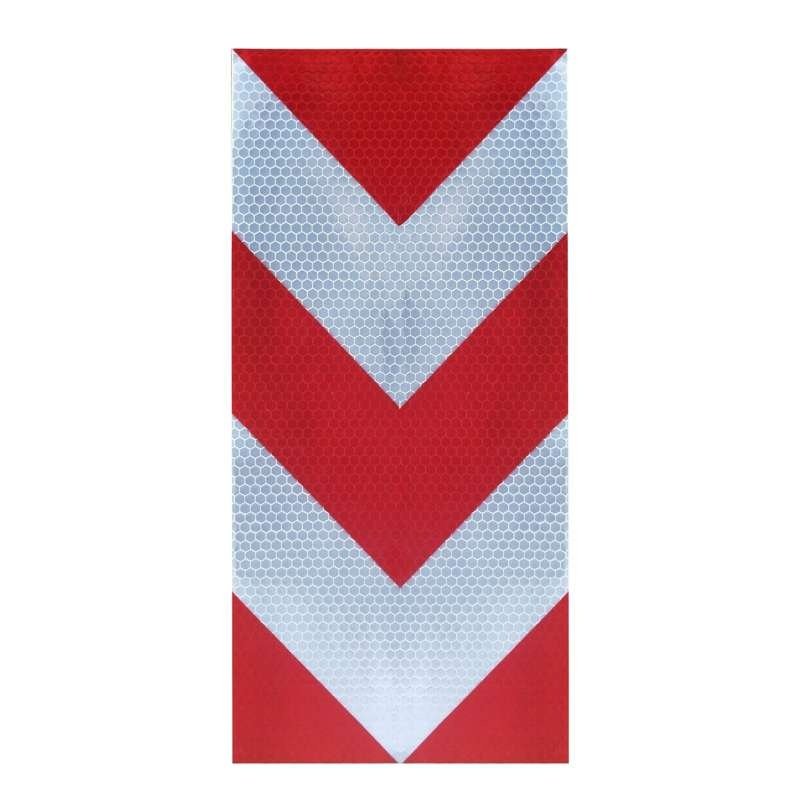

These additional views show multiple red and white panels and a vertical chevron section. Use them to compare the pattern arrangement when planning the marking layout on your vehicle.
Selecting Width and Orientation
The listed width options are 141 mm and 282 mm. Confirm the width, finished length and quantity for your order. Provide a drawing or photograph of the installation area so the chevron direction and panel positions can be checked together.
- Measure the usable area: allow space around lights, hinges, handles, identification plates and moving components.
- Specify the pattern direction: indicate the required left and right arrangement in your layout.
- Confirm the supply format: state whether you need material for further conversion or individual pieces to an agreed size.
- Check the substrate: identify the vehicle body material, surface finish and existing coating.
Applications and Fitting
This reflective PVC film is offered for warning-marking projects on farming, forestry and other compatible vehicles. Match the selected material and mounting method to the actual surface and operating environment. Product photographs illustrate the pattern; they do not establish approval for a particular vehicle category or country.
Before fitting, make sure the intended area is clean, dry and free from grease or loose coating. Confirm the backing and fixing method supplied with your chosen format. Trial a small piece on the actual substrate before a full installation, particularly on textured surfaces or freshly painted panels. Follow the confirmed application guidance for temperature, pressure and any required settling time.
Printing and Conversion
For a printed or converted version, provide the artwork, cut dimensions and intended process. UV printing is listed as a processing option; check the ink system, adhesion and finished appearance on a sample of the selected film. Keep essential warning areas visible in the final design.
Ordering Questions
Can the panel size be selected?
Send the width, length, layout and quantity. We will confirm the available format and cutting arrangement.
Does a product image prove compliance?
No. If your project requires a particular marking standard, specify it and request supporting documentation for the exact material before ordering.
What should an enquiry include?
Include the vehicle type, substrate, panel dimensions, chevron orientation, quantity, printing requirements and destination to help us confirm suitable options.
For projects with specific performance requirements, confirm the material grade, installation conditions and supporting documentation before ordering.
