Product Specifications
Self-adhesive reflective survey target stickers provide clearly marked reference points for surveying, construction layout and monitoring tasks. Choose crosshair targets or checkerboard designs to suit your project.
| Product Type | Self-adhesive reflective survey target stickers |
|---|---|
| Material | PVC reflective sheeting |
| Target Designs | Crosshair and checkerboard patterns |
| Size Options | 10, 20, 30, 40, 50, 80, 100 and 150 mm; confirm the required size and design when ordering |
| Color Options | Silver/white, fluorescent yellow-green, orange and red/white checkerboard; availability depends on the selected design |
| Backing | Self-adhesive backing for application to suitable clean, dry surfaces |
| Shape | Square target stickers |
| Applications | Survey reference points, construction layout and monitoring markers |
| Supply | Contact us to confirm size, pattern, quantity and packaging |

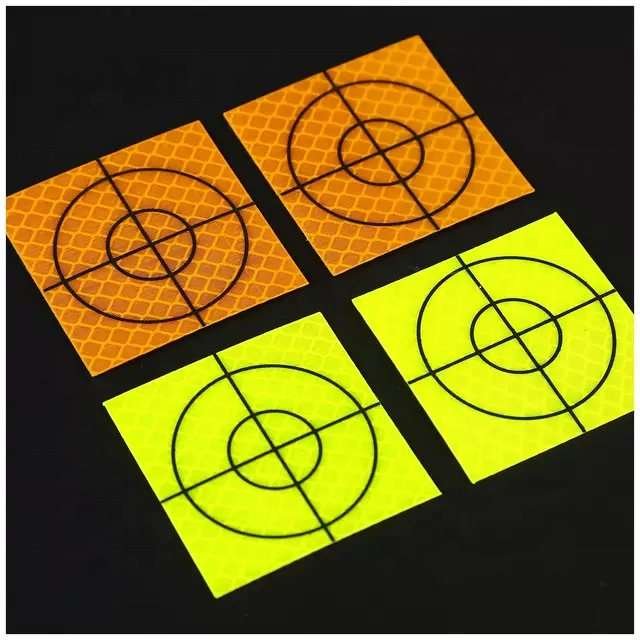

Crosshair Target Designs
Contrasting black crosshair markings identify the target center on the reflective surface. Orange and fluorescent yellow-green examples are shown. Confirm your required size and color when ordering.

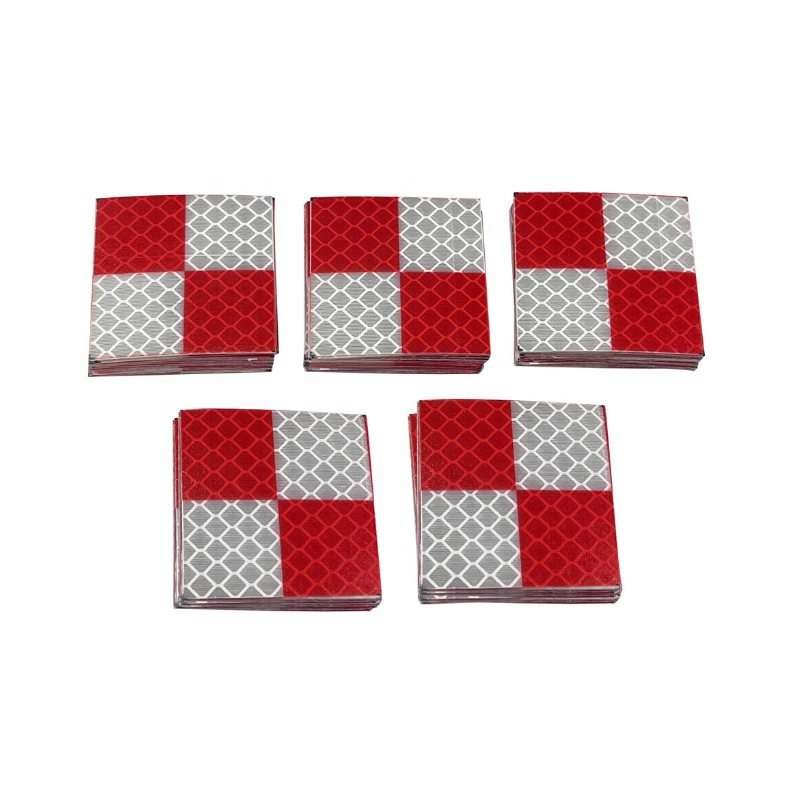

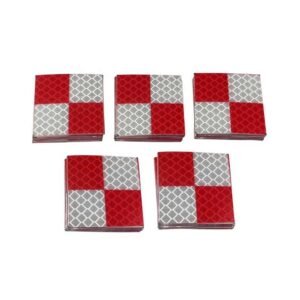

Checkerboard Target Design
Red and silver/white checkerboard stickers provide an alternative reference pattern for surveying and monitoring. Choose the dimensions and pattern suited to your equipment and application.

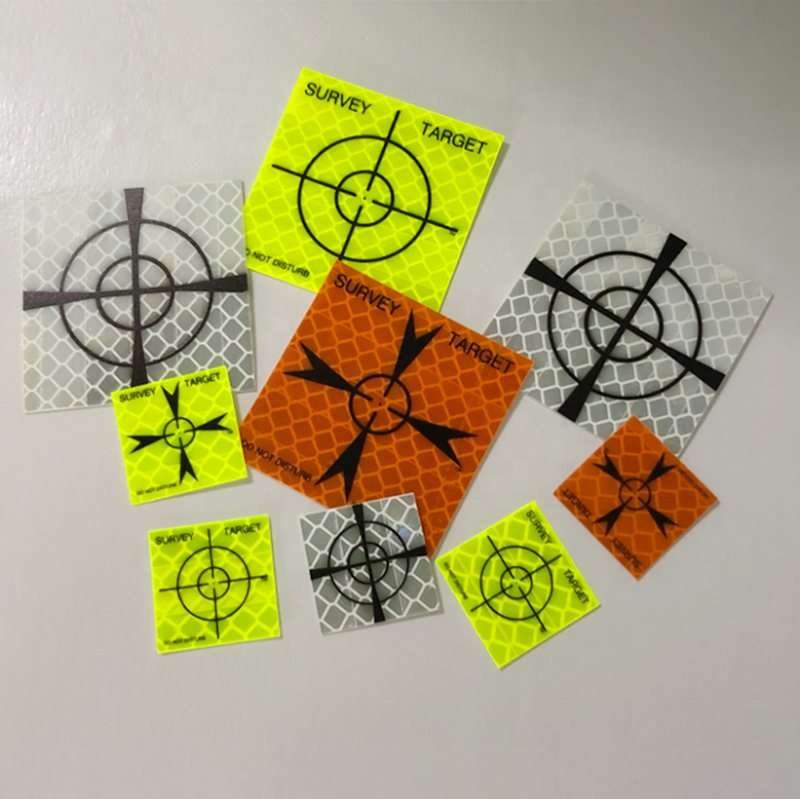

Color and Pattern Options
Choose from crosshair, checkerboard and other target patterns in silver/white, fluorescent yellow-green and orange. Availability varies by design. Send your required dimensions and pattern with your quotation request.
Application Scenarios

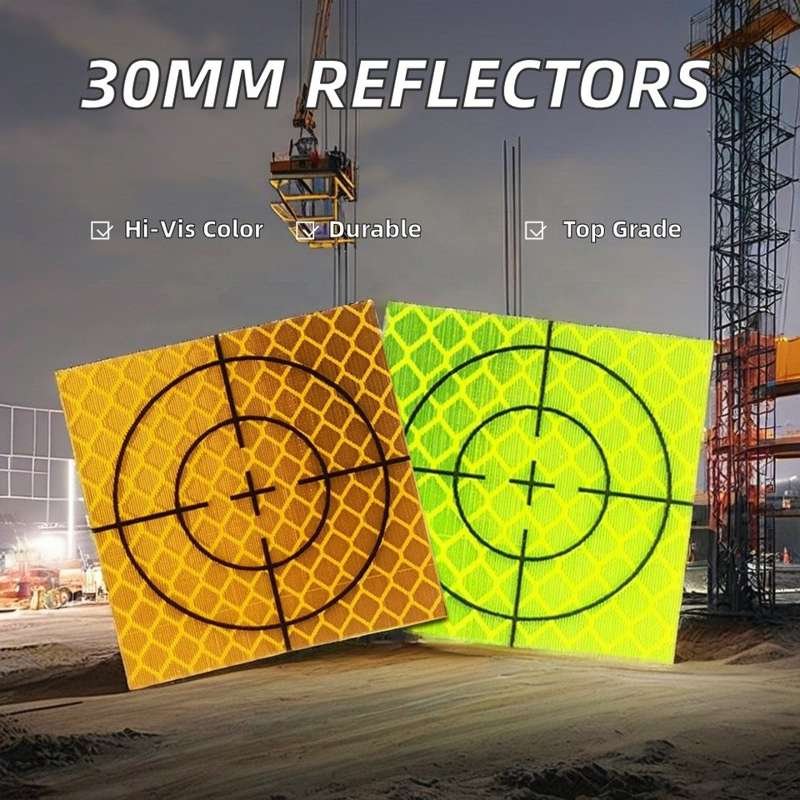

Mark reference points for construction layout, repeated measurements and monitoring projects. The image illustrates 30 mm targets in a construction setting. Measuring range and accuracy depend on your instrument, target size, installation and site conditions; confirm compatibility with a sample before use.
Choose the Right Survey Target
Choose the target pattern, dimensions and color together. Crosshair designs provide a defined center for sighting; checkerboard designs use contrasting quadrants as a visual reference. Match the pattern to your instrument and measurement workflow.
- Size: Listed options include 10, 20, 30, 40, 50, 80, 100 and 150 mm. Confirm availability for the selected pattern.
- Color: The product photographs show silver/white, orange, fluorescent yellow-green and red/silver checkerboard examples. Choose a contrast that is easy to identify against the mounting surface.
- Instrument compatibility: Provide your instrument model, intended working distance and site conditions when requesting a sample. A photograph alone does not establish measuring range or accuracy.
Placement & Application
- Select a stable mounting point that remains visible from the measuring position.
- Clean and dry the surface, removing dust, oil and loose material. Check adhesion on the intended substrate before installing a full set.
- Align the target center with the required reference point. Peel away the backing and press the sticker evenly, including its edges, without stretching it.
- Check the installed target with your instrument. Record its location and inspect it before repeat measurements; replace a target if it moves, lifts or becomes damaged.
Questions Before Ordering
Can I use the same target for every instrument?
Confirm the target type and measurement settings required by your instrument manufacturer. Test the selected size and pattern under the conditions in which you will use it.
Does the sticker produce its own light?
No. This is a reflective target, not an illuminated marker or a glow-in-the-dark product. Its visibility depends on illumination and viewing geometry.
Can I specify a size or printed pattern?
Send a dimensioned drawing or reference image together with your quantity. Available patterns, sizes and any artwork requirements will be confirmed before ordering.
Customization & Ordering
For a useful quotation, include the target dimensions, pattern, color, quantity, instrument type, mounting surface and destination country. Specify pieces per pack or any labeling requirements. We will confirm available options, sample arrangements, packaging, pricing and delivery for your order.
