Product Specifications
Self-adhesive PET reflective sheeting with contrasting warning stripes for barriers, posts and site markings. Available in red-white and yellow-black combinations.
| Material | PET |
|---|---|
| Pattern | Two-color warning stripes |
| Colors | Red / white or yellow / black |
| Standard roll | 1.24 m × 45.7 m |
| Backing | Self-adhesive with release liner |
| Application temperature | 18–28°C |

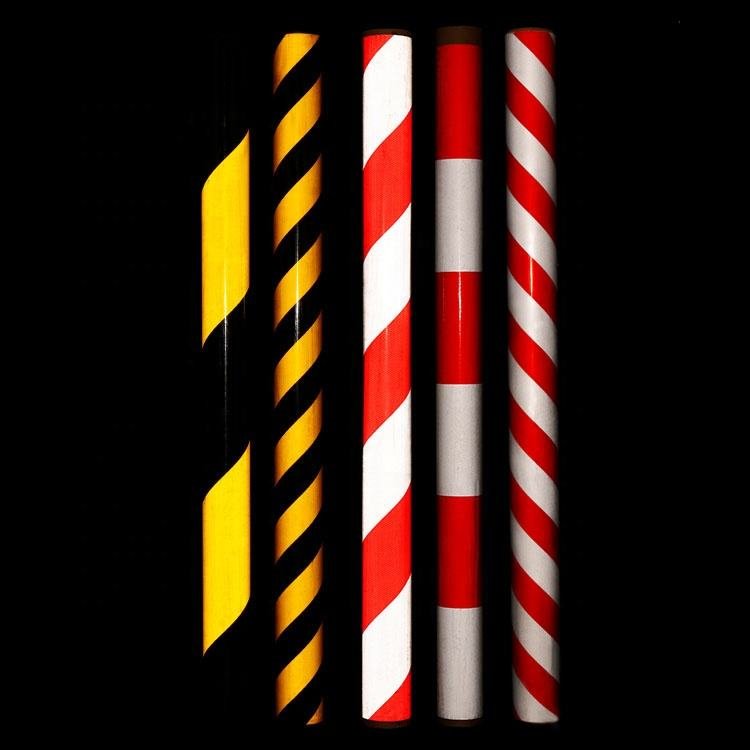

Warning Stripe Options
Contrasting colors help define warning areas and edges. Confirm the required stripe direction and pattern before ordering.

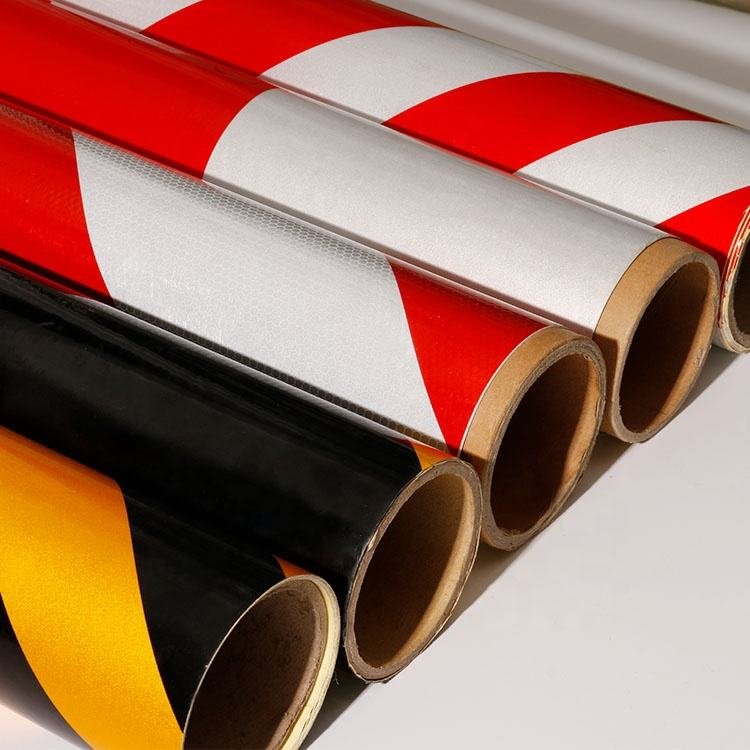

Roll Material for Converting
Wide rolls can be cut for panels, posts and other markings. Provide the finished dimensions and intended substrate.

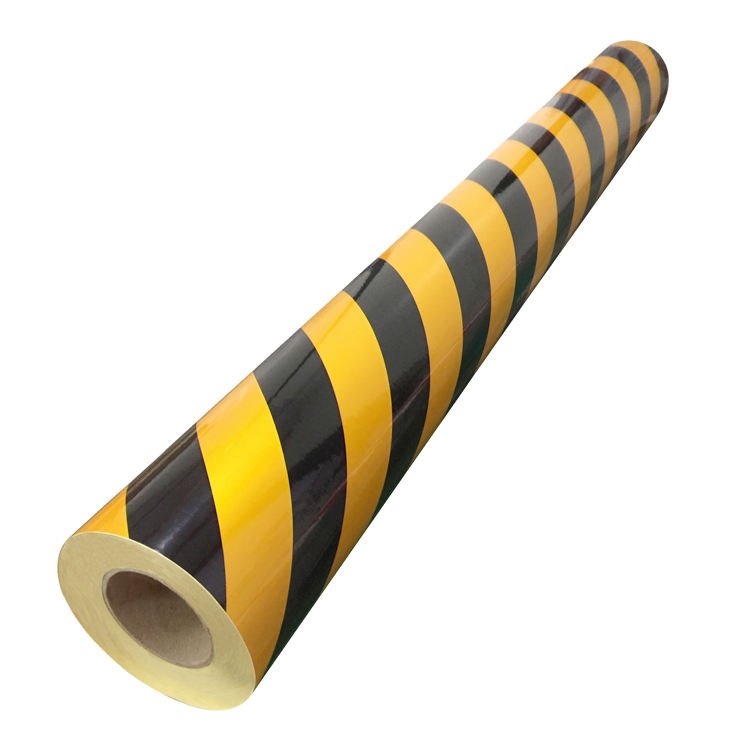

Yellow and Black Pattern
The yellow-black option is suited to custom hazard-marking layouts. Apply to a clean, dry and compatible surface.
Customization & Ordering
Contact Xingyuan with your required dimensions, color, quantity, application and destination country. We will confirm available options, sample arrangements, packaging and delivery.
Warning Patterns and Supply Formats

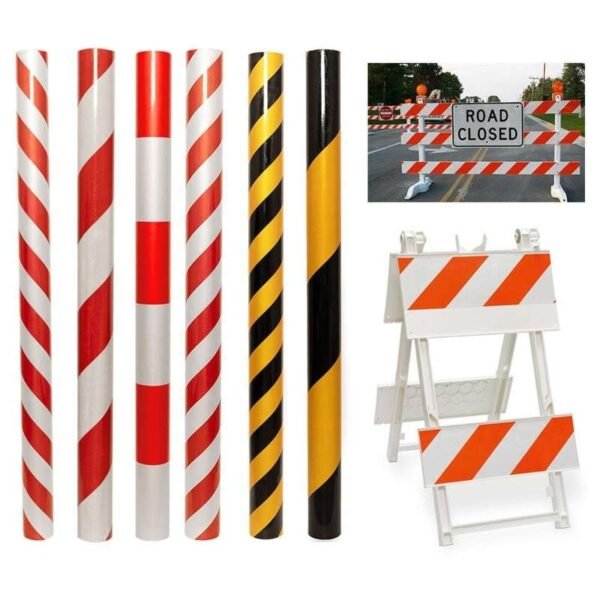

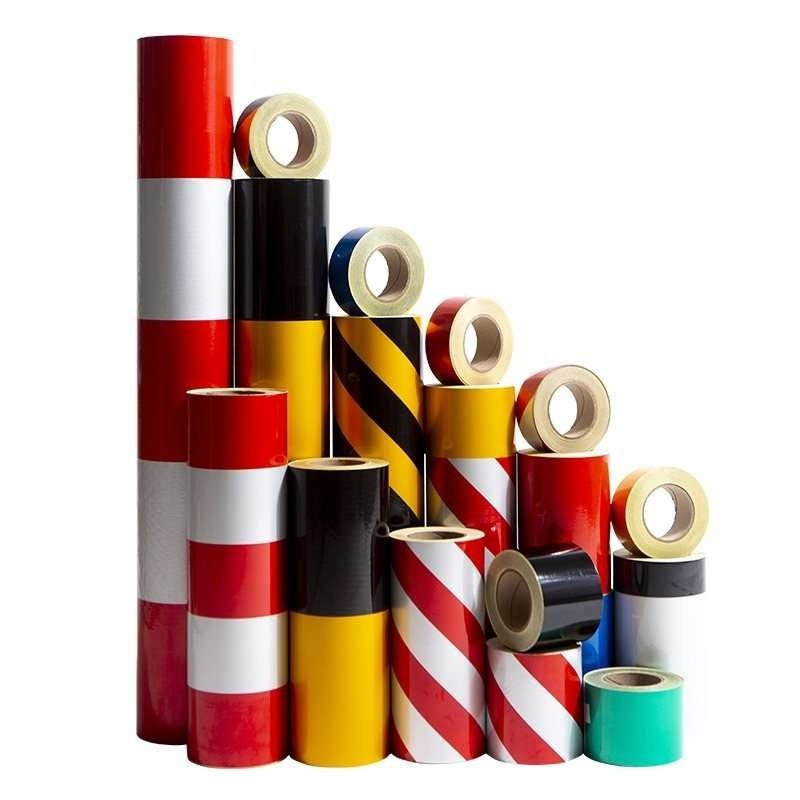

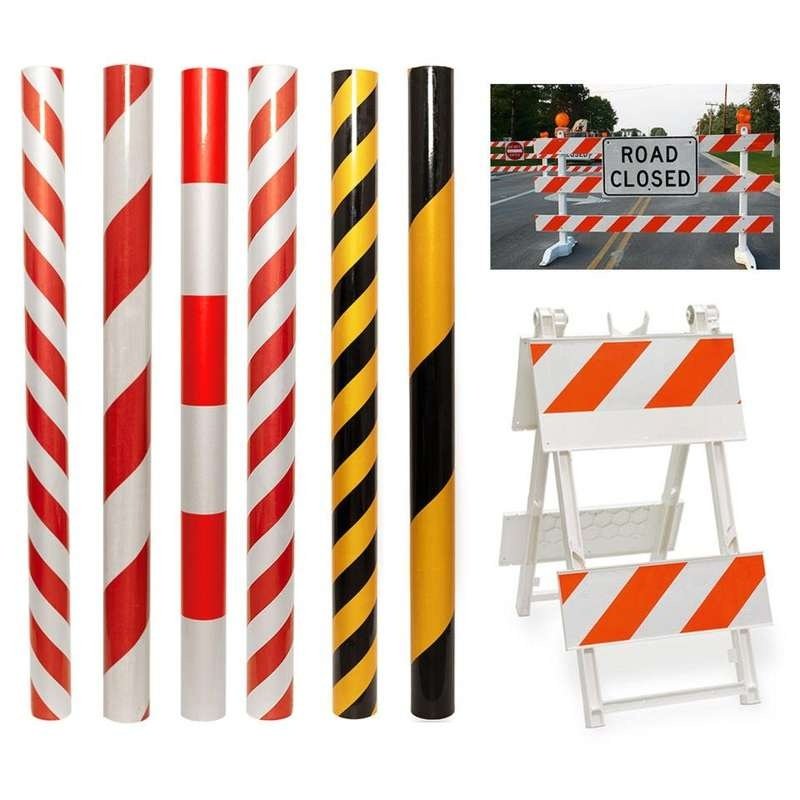

The additional images show red-white and yellow-black warning patterns, including diagonal stripes and block layouts in the wider material range. Confirm the selected pattern, stripe direction and color combination for your order. The assortment photograph illustrates options rather than a mixed set included with every roll.
Barrier and Warning-Post Applications

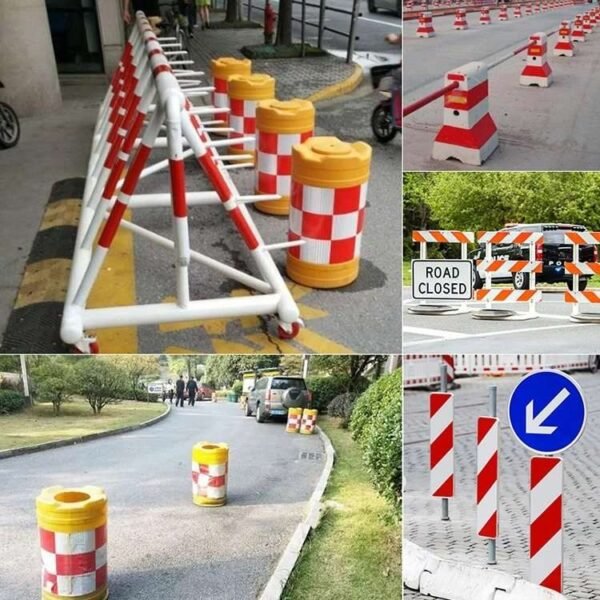

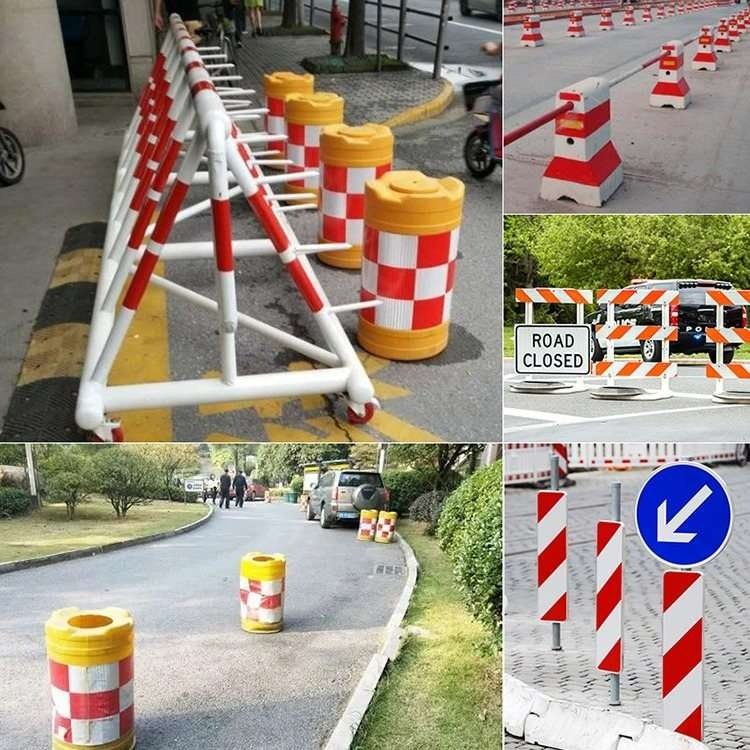

The application collage shows reflective marking layouts on barriers, posts and temporary road-control equipment. It provides placement references; finished barriers and posts are not included with the film. Match the material, color and pattern to the intended use and confirm any project-specific marking requirements.
Specify the Roll and Cut Layout
The listed standard roll size is 1.24 m × 45.7 m. For converted material, provide the finished strip or panel width, length and quantity. Confirm the stripe angle and direction when the piece is installed, especially if a project requires matched left and right layouts.
- Identify red-white or yellow-black material and the preferred pattern.
- Provide a dimensioned layout showing joins, corners and any required alignment.
- Describe the substrate, surface finish and intended environment.
- Specify plain roll supply, slit rolls, cut pieces or a printed custom version.
Application and Storage
The PET sheeting has self-adhesive backing protected by a release liner. The listed application range is 18–28°C; confirm the final installation guidance for the selected material. Test a small piece on the actual substrate before applying a full layout.
Clean and dry the surface, position the film and peel the liner gradually. Press evenly without stretching, and inspect the edges. Keep the material away from contamination while the adhesive is exposed.
Store unused material in a cool, dry and ventilated place. Keep cartons off damp floors and avoid excessive stacking that could crush the rolls. Secure an opened roll and reseal its protective packaging to help keep it clean and dry.
Ordering Questions
Can wide rolls be cut into strips?
Send the required strip width, length and quantity so the available converting arrangement can be confirmed.
Are the stripes self-illuminating?
No. Reflection requires incoming light, and the observed appearance varies with the light source and viewing angle.
Can text be added?
Provide the artwork and intended process to confirm printing compatibility and the finished layout.
What information is needed for a quotation?
Include the color combination, pattern direction, roll or cut size, quantity, substrate, performance requirements, packaging and destination.
For projects with specific performance requirements, confirm the material grade, installation conditions and supporting documentation before ordering.
