Product Specifications
Square reflective survey targets with crosshair and concentric-circle markings for reference points and construction monitoring.
| Pattern | Crosshair with concentric circles |
|---|---|
| Shape | Square |
| Sizes Shown | 20, 30, 40, 50 and 60 mm |
| Colors | White, yellow and orange options |
| Application | Survey reference points and monitoring |
| Compatibility | Confirm with your measuring instrument |

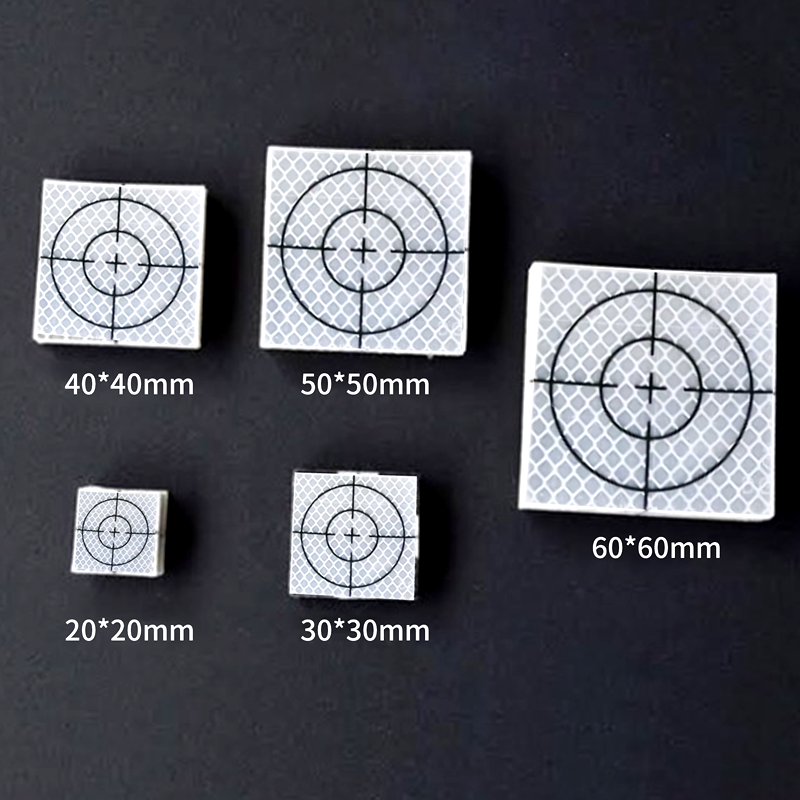

White Target Size Options

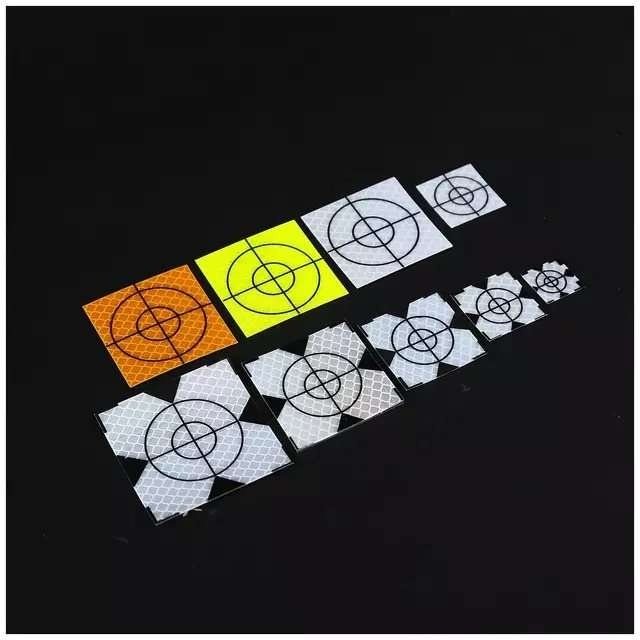

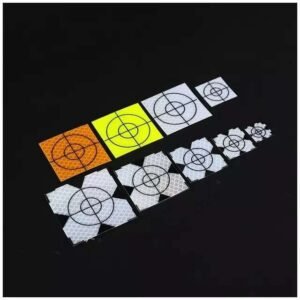

The image shows 20, 30, 40, 50 and 60 mm white targets. Choose a size suited to your instrument and measurement conditions.
Yellow and Orange Targets

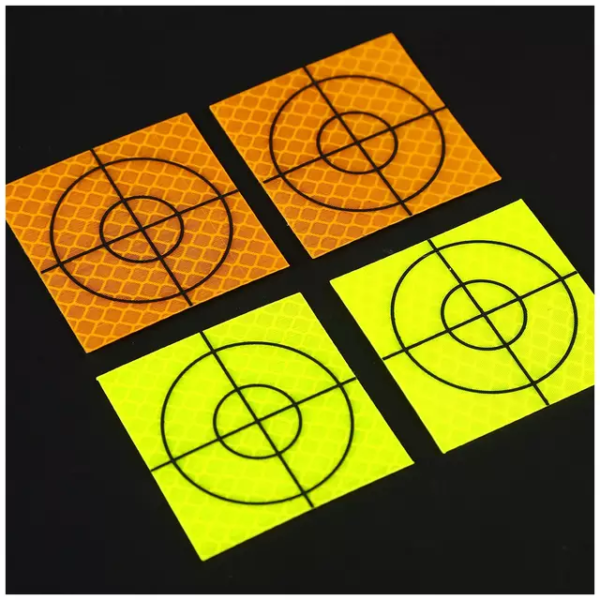

Additional color options are shown with black crosshair markings. Measuring range depends on equipment, target dimensions and installation; test a sample.
Target Colors and Marking Patterns

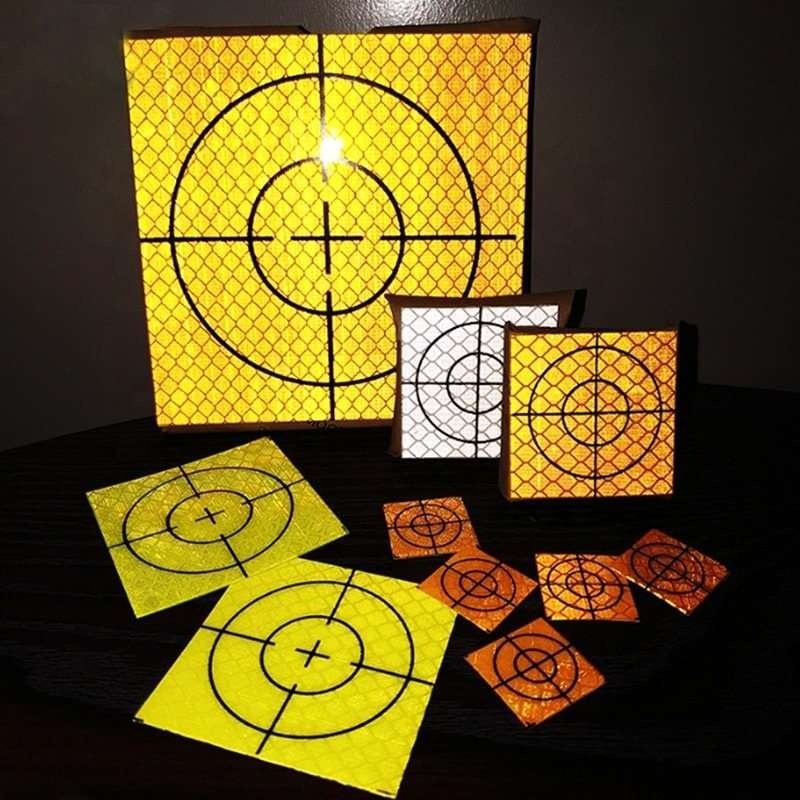

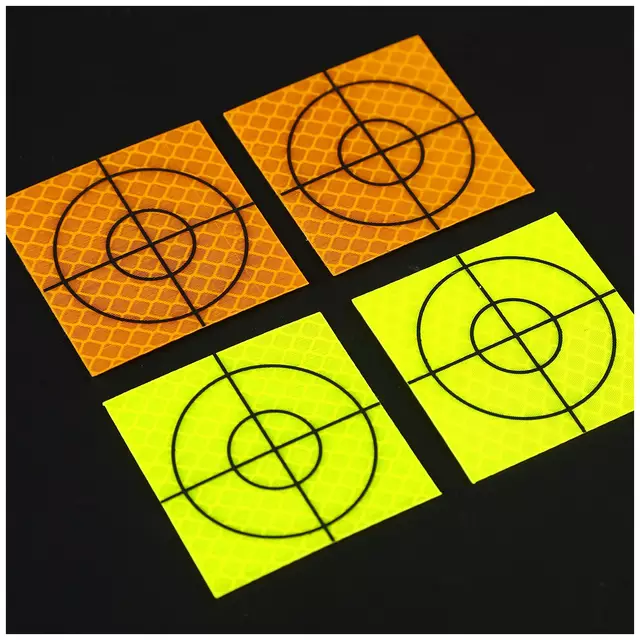

The black crosshair and concentric circles provide a visible center reference on the reflective face. White, yellow and orange options are shown, together with variations in the surrounding pattern. Select the exact artwork and reflective construction required by your instrument and survey method; similar-looking targets are not automatically interchangeable.

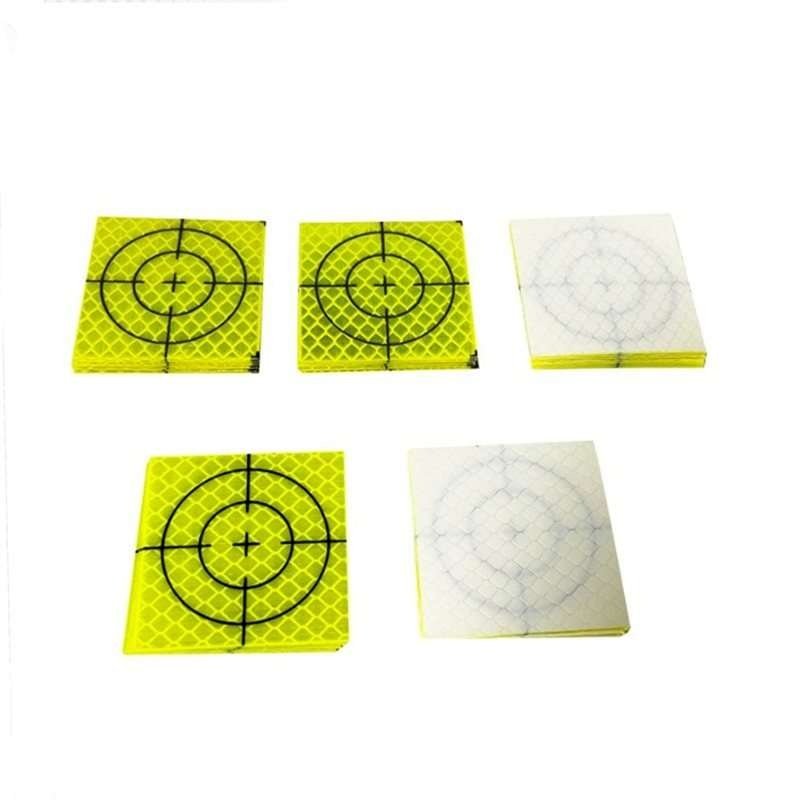

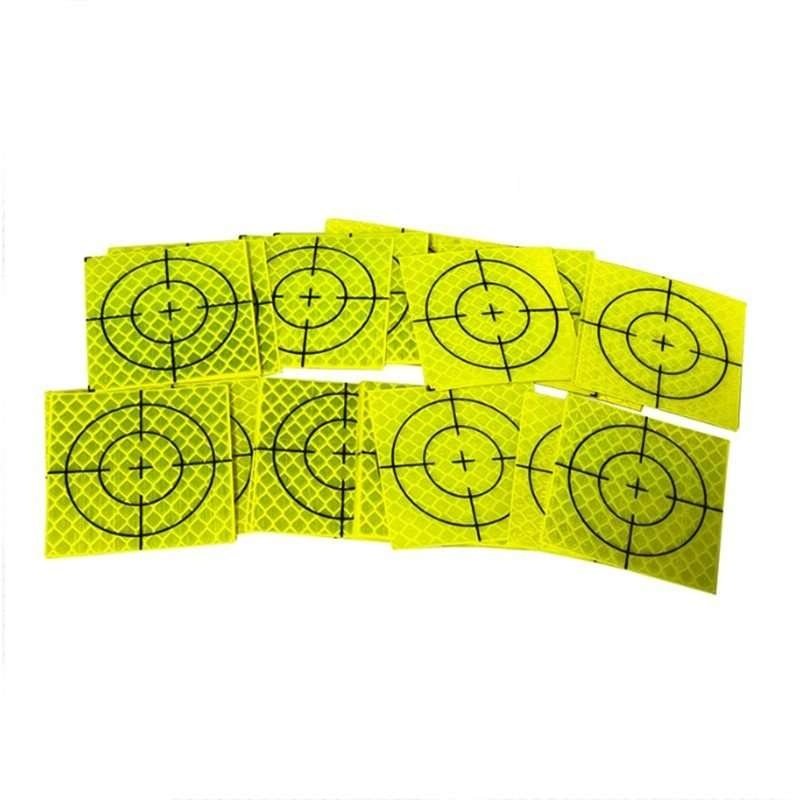

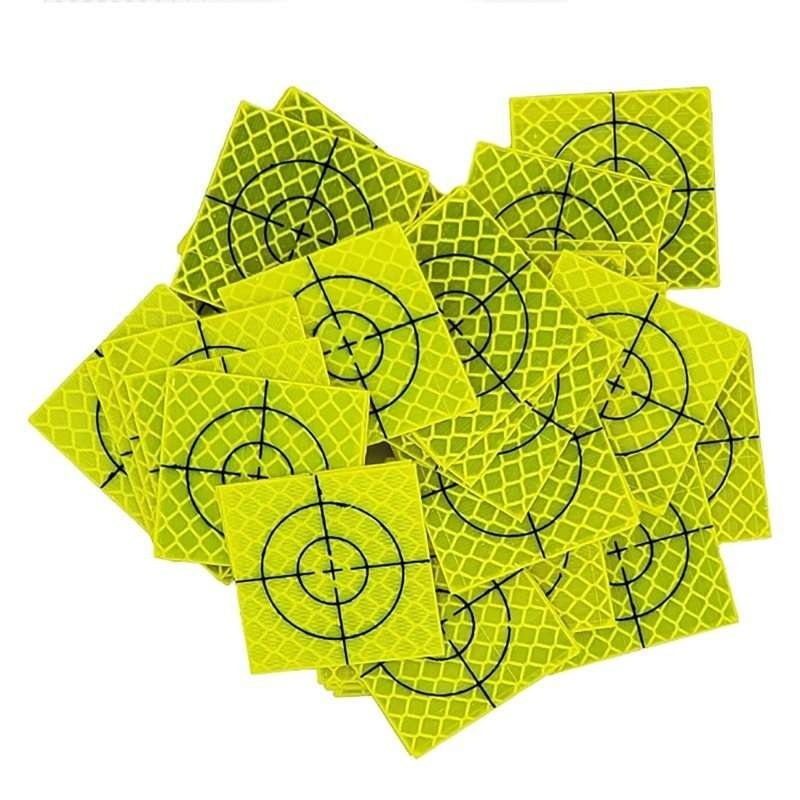

Additional Yellow Target and Backing Views

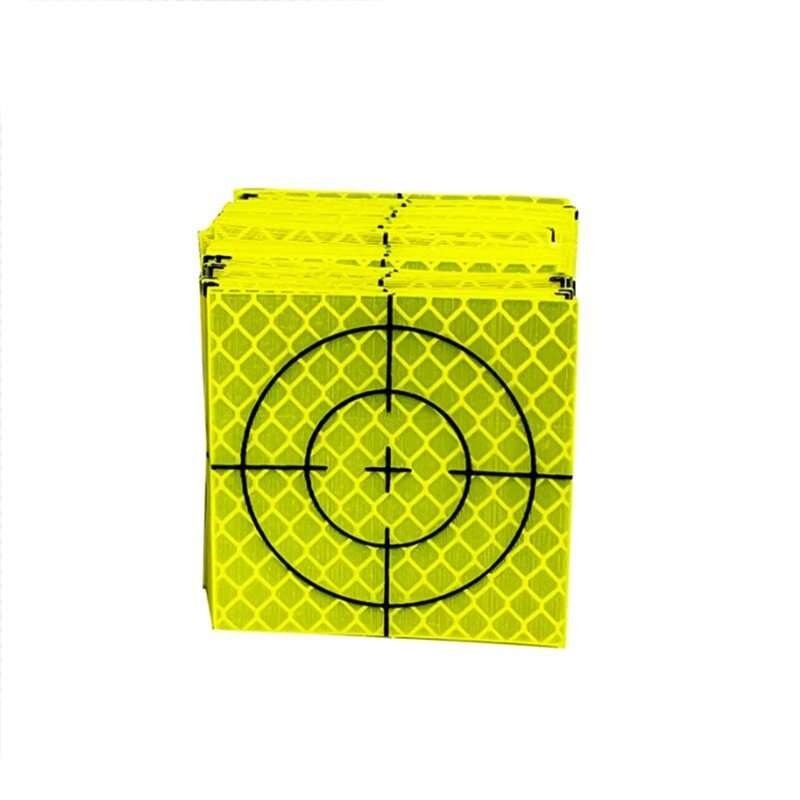

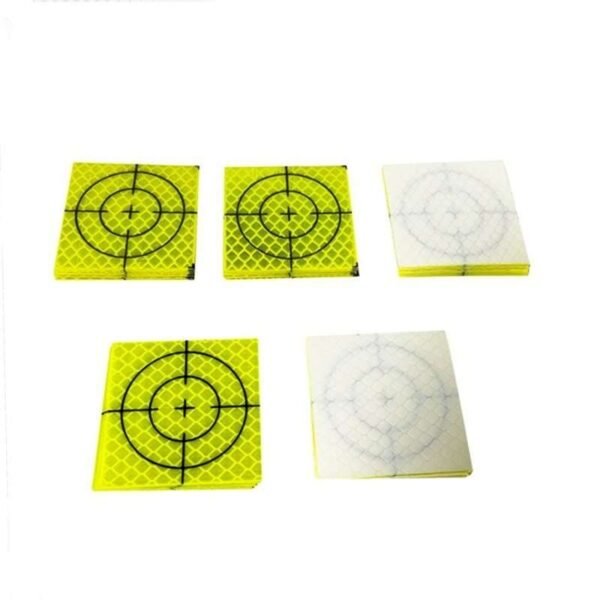

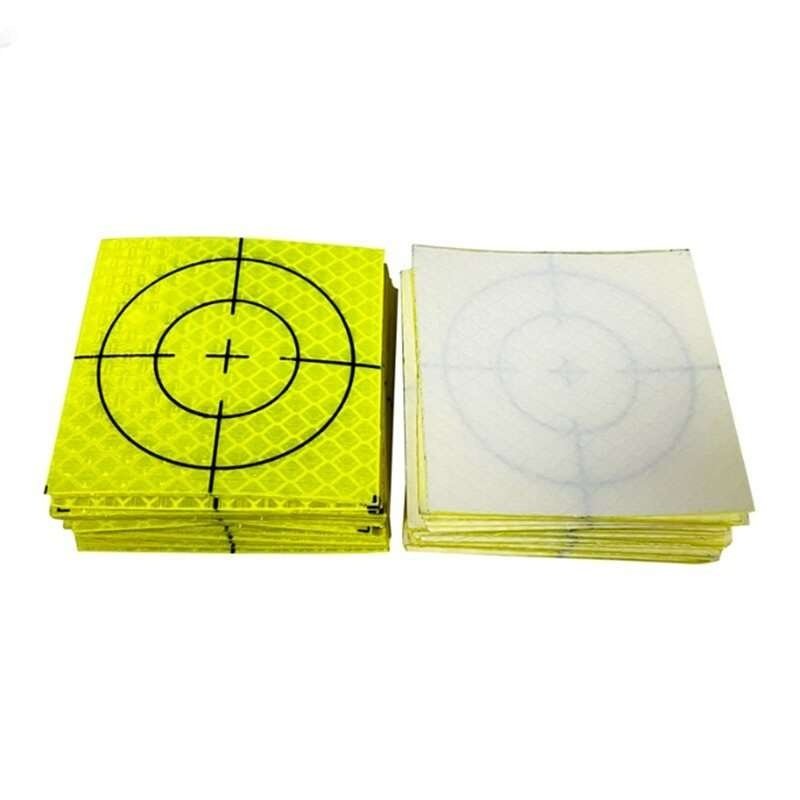

These additional views show stacked yellow targets, an assortment of yellow face patterns and the backing beside the printed face. Use them to compare the appearance and supply format when specifying a yellow version. Confirm the selected reflective construction, dimensions and quantity; mixed patterns are shown as references rather than a fixed assortment.
Size Selection and Quantity

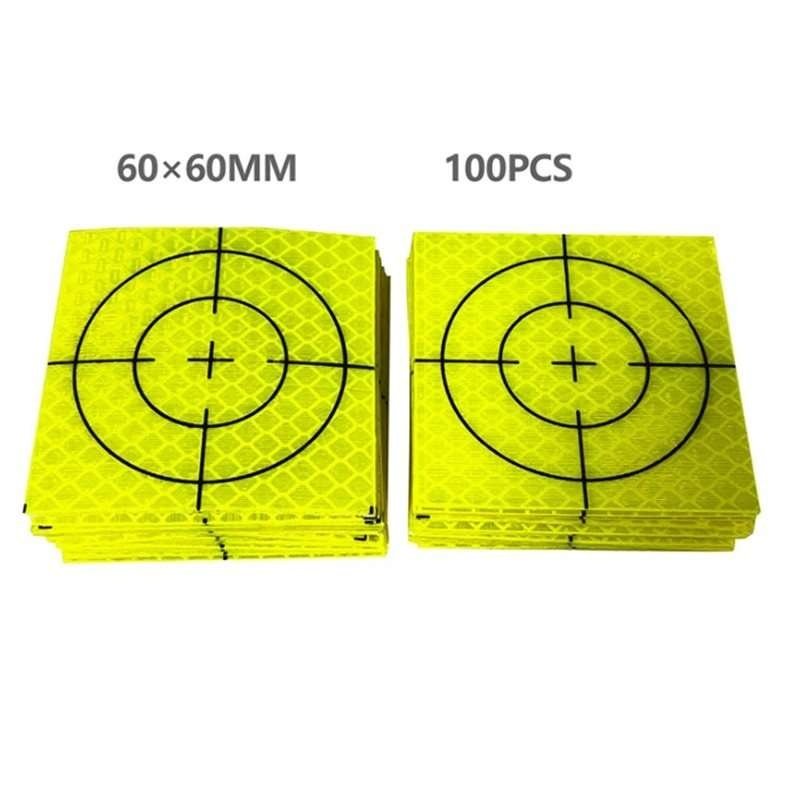

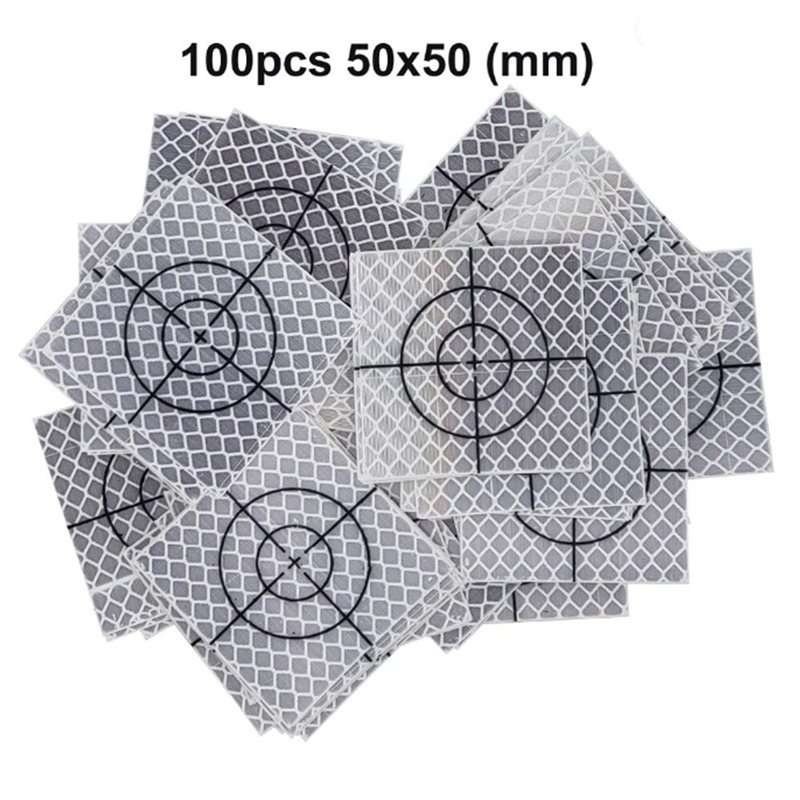

The main size reference shows square targets measuring 20, 30, 40, 50 and 60 mm. Select a size that works with the intended instrument, distance and line of sight. The additional photographs show multiple yellow targets and a white 50 × 50 mm example labeled 100 pieces. Confirm the required size, color and pack quantity in your order; the images do not define a universal assortment.

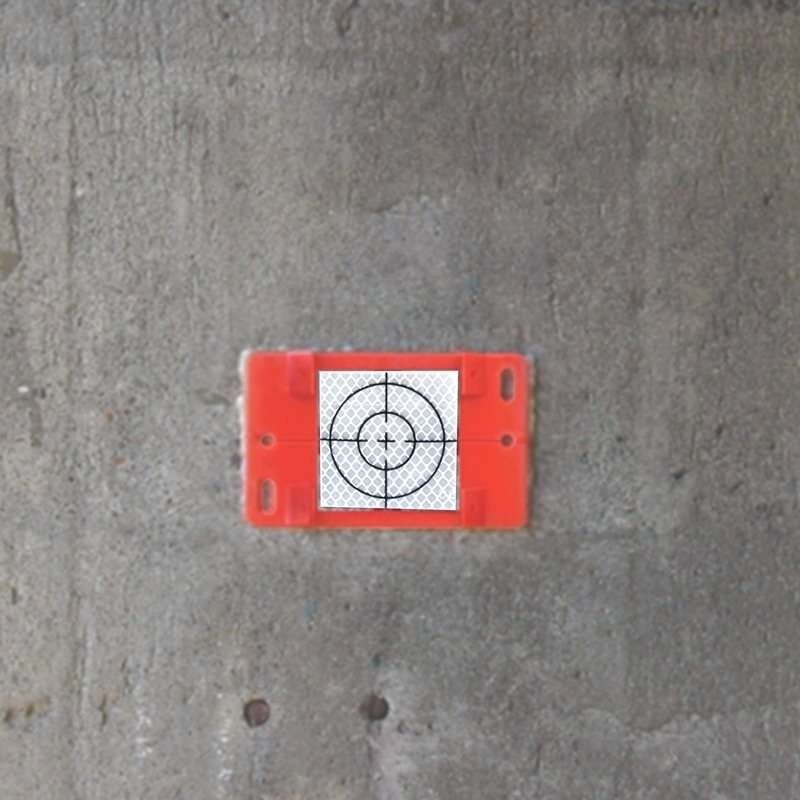

Wall and Corner Mounting References

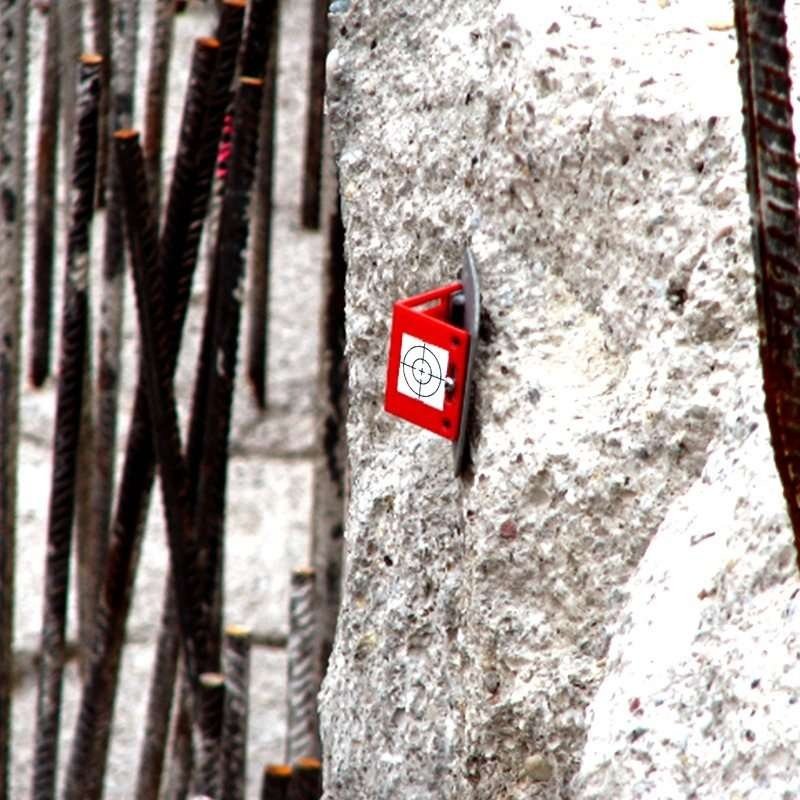

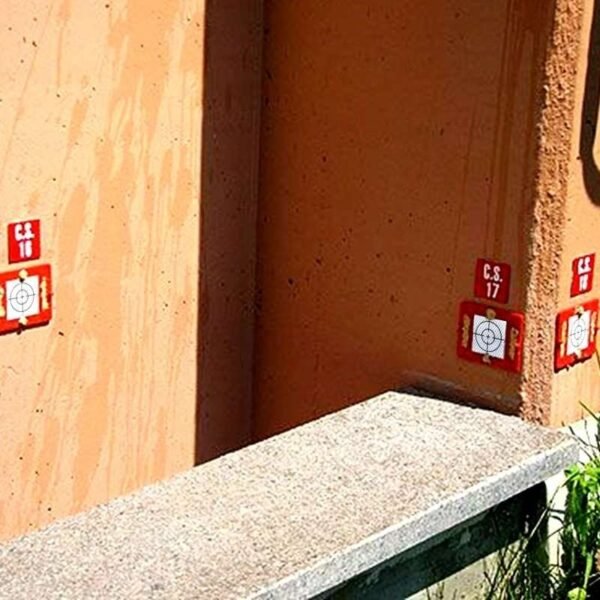

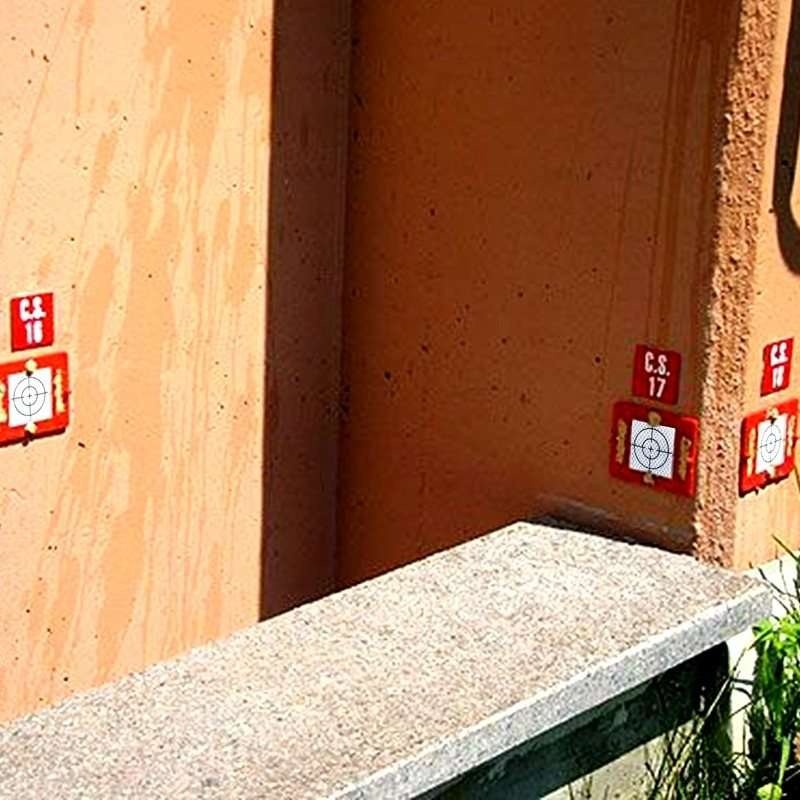

The following examples show reflective targets used with separate mounting plates or brackets on a wall and near structural corners. These photographs illustrate possible installations; mounting plates, brackets and fasteners are not included with the target pieces unless separately specified. Choose a stable mounting position and a fixing method appropriate to the substrate and monitoring plan.
Monitoring-Point Layout Reference

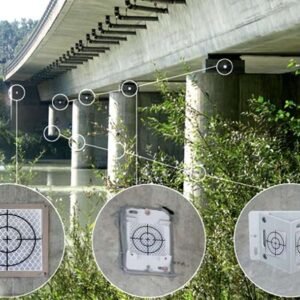

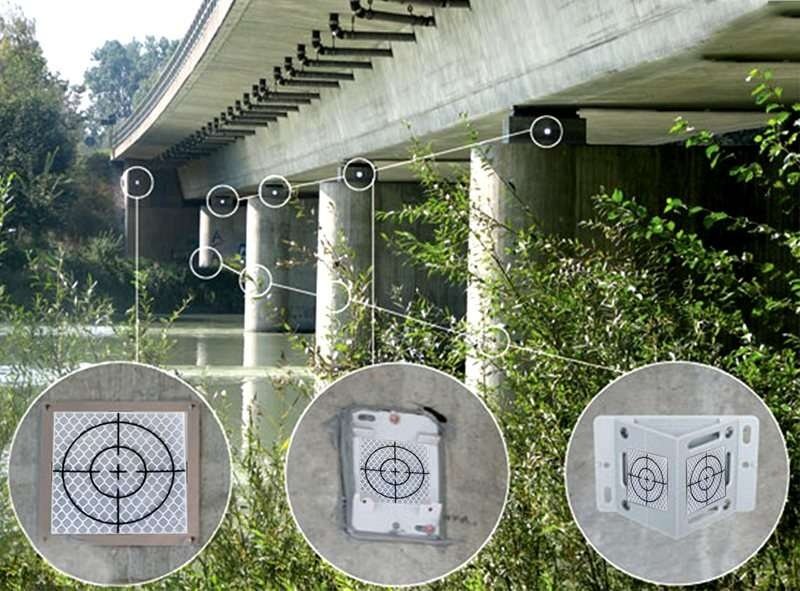

The bridge illustration shows how individual target points can be distributed across a structure. It is an application reference, not a project supplied or surveyed by us. Target positions, orientation and fixing details should follow the survey plan and be checked for stable attachment and a clear line of sight.
Instrument and Installation Checks
- Confirm that your instrument supports the selected reflective-sheet target and measurement mode.
- Choose the target size and color for the working distance and background.
- Use a stable, compatible mounting surface and identify the center reference consistently.
- Keep the reflective face clean and free from creases or damage.
- Test the actual target, mounting angle and instrument setup before establishing a monitoring point.
No single measuring range is stated here because performance depends on the instrument, target construction, dimensions, orientation and site conditions. A target photograph cannot establish measurement accuracy or replace an equipment-specific compatibility check.
Customization & Ordering
Send the target size, color, crosshair artwork, quantity and intended mounting method. Include the instrument model or required compatibility, approximate working conditions and delivery destination. For numbered sets or project-specific layouts, provide the numbering schedule or drawing. We will confirm material options, samples, pack quantity and delivery details.

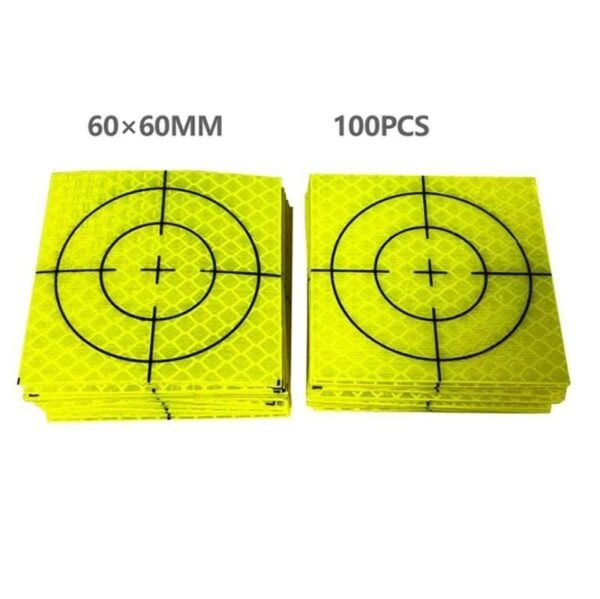

60 mm Yellow Targets and Packing Detail
The additional yellow target photograph shows a 60 × 60 mm size marked as a 100-piece quantity example. Confirm the size and pack quantity for your order; this image does not change the selected dimensions or automatically add a second size to a set.

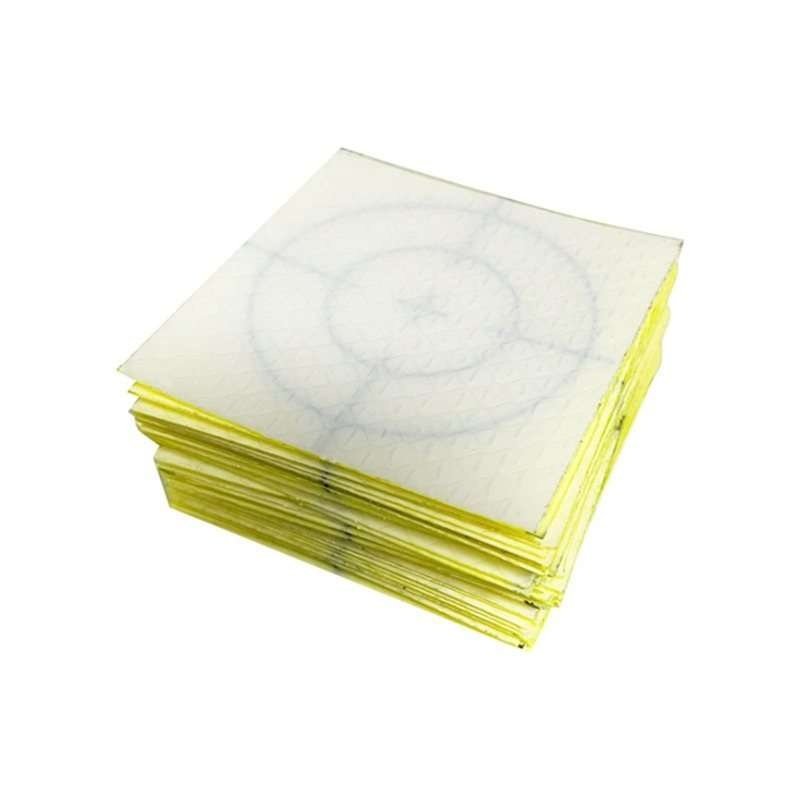

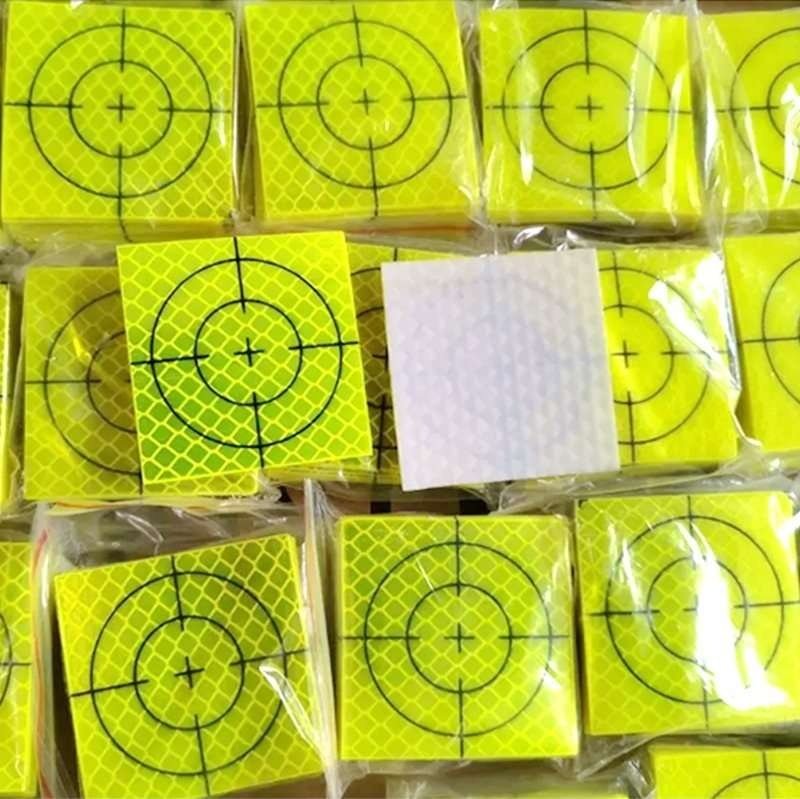

The bagged targets and reverse-side stack below show the supply format and protective backing. Keep the face clean and flat during handling, and confirm adhesive and mounting compatibility for the intended reference surface.
