Product Specifications
White reflective PVC sheeting for printed road signs and custom-cut reflective labels.
| Material | Reflective PVC |
|---|---|
| Color | White |
| Listed Roll Size | 1.22 m × 45.7 m; confirm specification |
| Converting | Printed and custom-cut formats by agreement |
| Applications | Road signs and reflective labels |

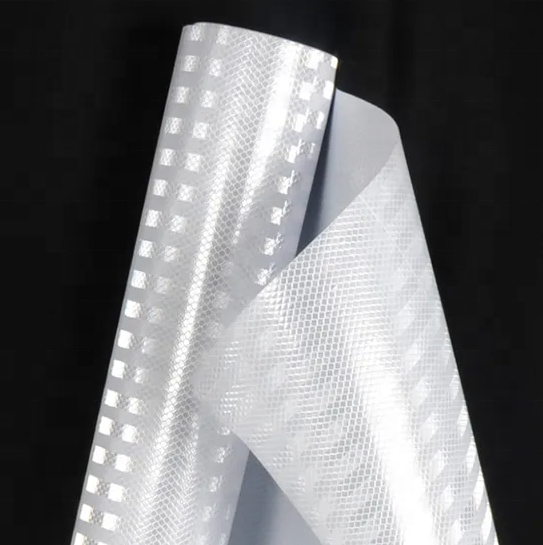

White Reflective Film and Backing
The opened material shows the reflective face and backing. Confirm substrate compatibility and the printing process before ordering.

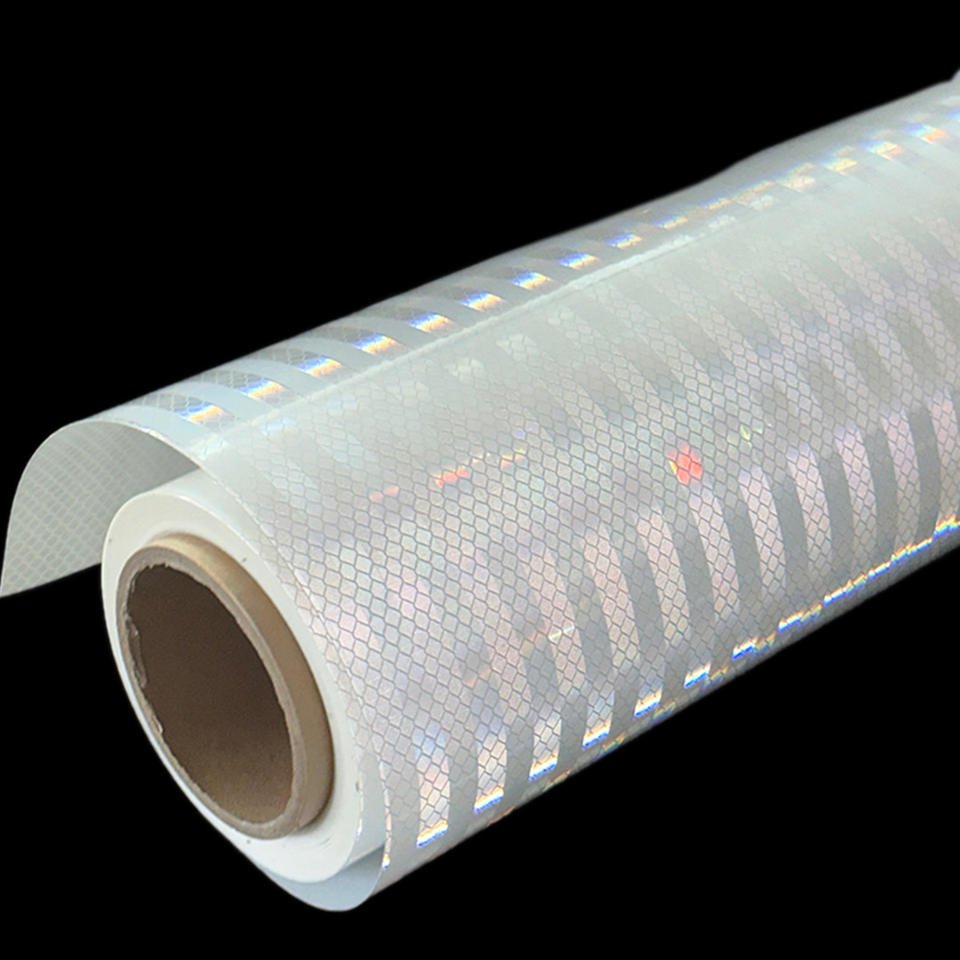

Roll Surface Close-Up
The image shows the reflective pattern and roll format. Send your required dimensions and any project-specific reflective performance requirements.
Reflective PVC for Sign Graphics
This white roll material is intended for conversion into printed road-sign faces and custom-cut reflective labels. The product photographs show the patterned reflective face, the opened backing construction and the material wound on a core. A white background can support different graphic layouts, but the finished result depends on the selected printing system and the required reflective performance.
Preparing Artwork and a Print Trial
Provide the finished dimensions and artwork before selecting the material. Identify which parts of the design should remain reflective and which will be covered by ink or an overlay. Approve the actual print process on a sample: check the color, ink adhesion, fine detail and appearance under directional light before printing a complete production run.
- Sign panels: include the panel shape, dimensions, mounting substrate and artwork.
- Labels: specify the finished cut size, corner shape and number of labels per sheet or set.
- Roll conversion: provide the required width, length and quantity, plus any orientation or layout requirements.

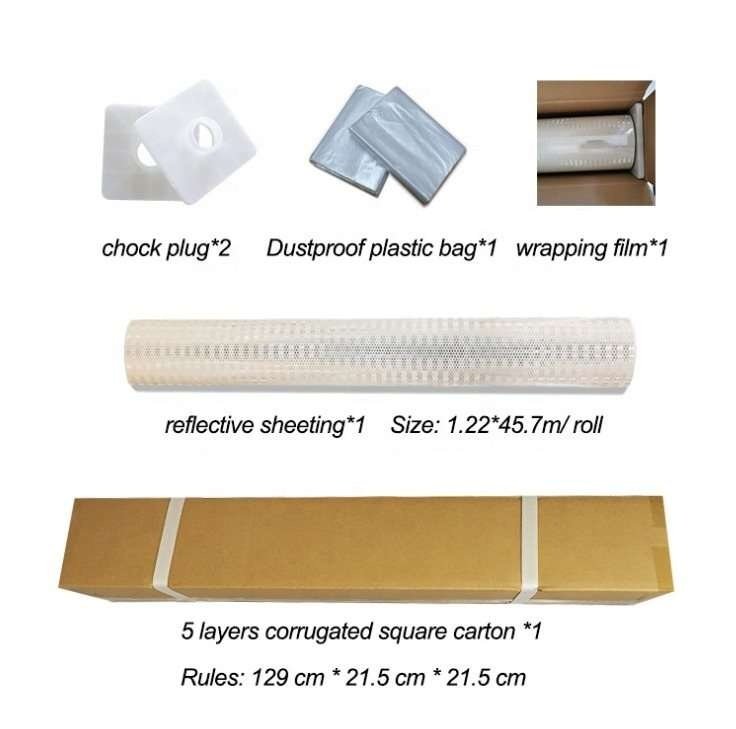

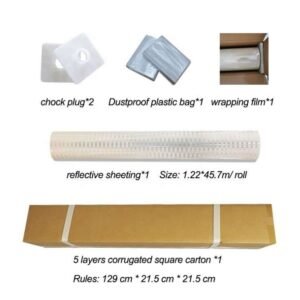

Packing Structure
The packing reference shows the roll protected with end supports, a dust-protection bag, wrapping film and a corrugated carton. The illustrated roll is 1.22 m × 45.7 m, with a reference carton size of 129 × 21.5 × 21.5 cm. Confirm the final dimensions and packing arrangement for your order; these details can change with the supplied format.
Substrate and Application Review
Describe the intended surface, including its material, coating and texture. Confirm the adhesive construction and application method for the selected film. A trial on the actual substrate helps check adhesion, edge behavior and appearance before converting a large quantity.
Keep the reflective face clean during handling and avoid creasing the film across a visible sign area. Plan any panel joints and the cutting layout before application. For printed labels, check that the chosen ink and finishing process remain suitable after cutting and mounting.
Questions Before Ordering
Can I use any printer with this film?
Printing compatibility must be confirmed for the particular film, ink and machine settings. Send your proposed printing process and request a sample for testing.
Does the photograph establish a traffic-sign material class?
No. State the required reflective class and applicable project standard, then confirm the selected specification and its supporting documentation.
Can the material be supplied as cut labels?
Send the drawing, quantity and packing requirements. Available converting options and tolerances will be confirmed in the quotation.
Customization & Ordering
Include your roll size or finished layout, artwork, quantity, printing process, mounting surface and delivery destination. For road-sign projects, include the required material grade and documentation. We will confirm sample arrangements, the agreed material construction, packing and delivery details.
